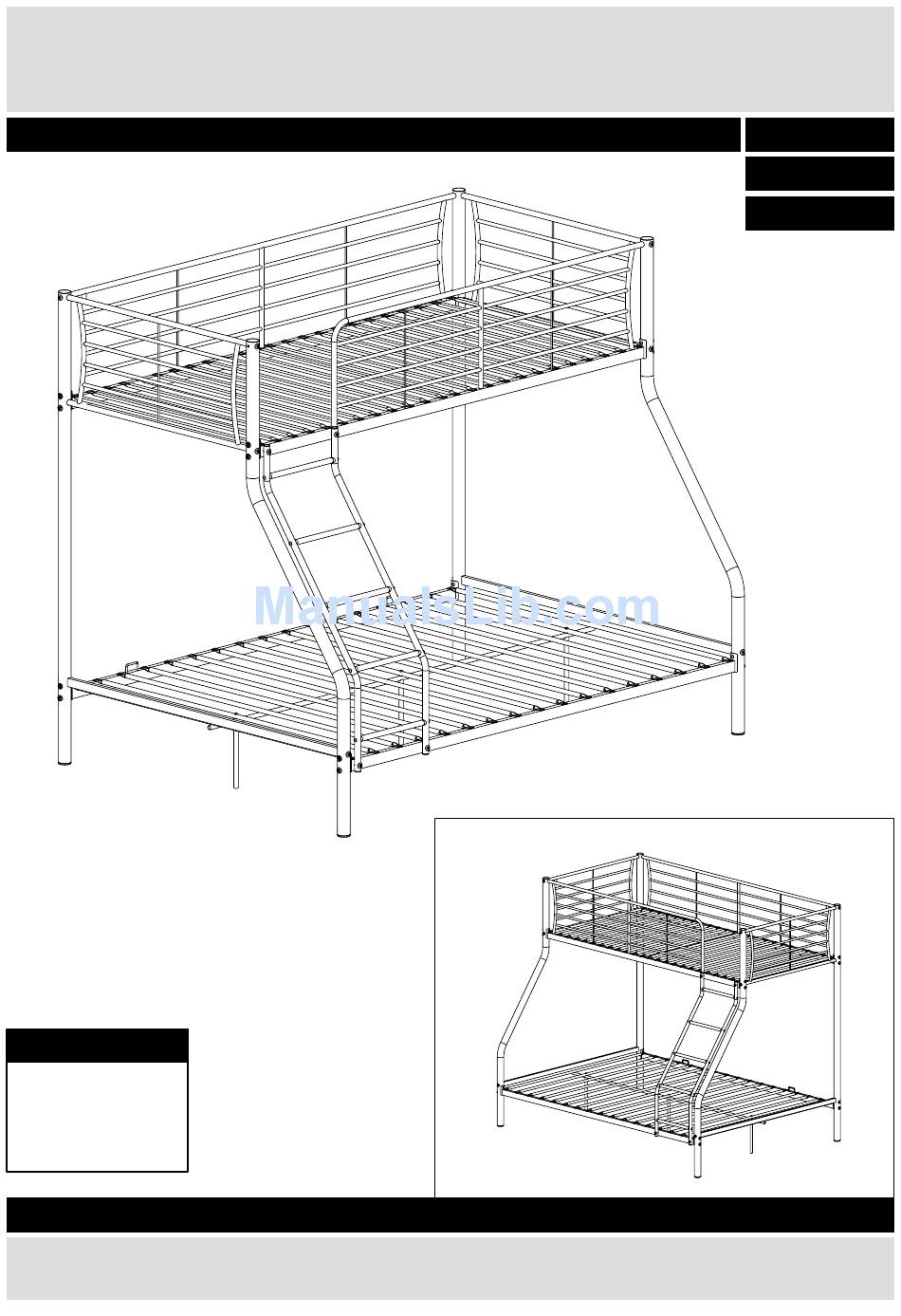

Triple Bunk Bed
Assembly Instructions -
Dimensions
Length - 200cm
Width - 142.5cm
Height - 170cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
758/5432
758/5425
758/5449
Issue 2 - 28/05/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argos 758/5432
Summary of Contents for Argos 758/5432
- Page 1 Triple Bunk Bed Assembly Instructions - Please keep for future reference 758/5432 758/5425 758/5449 Dimensions Length - 200cm Width - 142.5cm Height - 170cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Assemble the item as close • Place the product on flat and • Check you have all the steady surface during use. components and tools listed on to its final position (in the same pages 2 and 3.
- Page 3 Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Rear post x 2 Front post x 2 Ladder frame x 2 (4.5 x 170cm) (2.2 x 109cm) (4.5 x 170cm) End panel x 2...
-
Page 4: Tools Required
Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 Assembly Instructions Step 1 Assembling side frames Lay rear post , front post , end panel and lower stretcher flat on the floor as shown. Note: Hole at top Note: The holes in end panel must be at the top. Insert end panel into the large holes in rear...
- Page 6 Assembly Instructions Step 2 Assembling rear guard Two people are needed here. With help, stand both side frames upright. Assemble rear guard in between the side frames as shown. Note: Do not fully tighten any screws during the assembly. Secure at the top using fixings shown.
- Page 7 Assembly Instructions Step 3 Assembling front guard At this stage, choose if you want the ladder on the right hand side or left hand side. According to which side you want the ladder, assemble front guard in between the side frames using fixings as shown.
- Page 8 Assembly Instructions Step 4 Assembling top bunk slats Fit slats in the very last fixing holes at each end of the top bunk.Use fixing screws secure. Note: Slats have been labelled for easier identification. Note: To ensure slats are fitted the right way around, the arrow labels must point outwards as shown.
- Page 9 Assembly Instructions Step 5 Assembling lower bed support frame Assemble lower bed slats to the frame in the positions shown. Use screws to secure. Note: Slats have an extra hole in the middle. With help, assemble central support legs underneath slats as shown.
- Page 10 Assembly Instructions Step 7 Assembling ladder Assemble ladder rungs and plastic spacers in between ladder frames using screws Note: Do not fully tighten screws Step 8 Attaching ladder Assemble the ladder to the frame using fixings Fixings are located inside the frame as shown.
