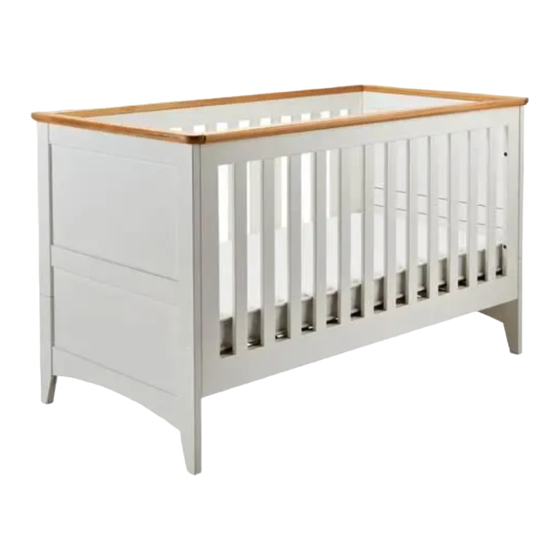

Camborne - Cotbed
Assembly Instructions -
Please keep for future reference
737/8443
737/6483
Dimensions
Width - 148,8m
Depth - 80cm
Height - 89,9cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, c a l l t h e
Customer Helpline: 03456 400 800
Issue 1 - 05/07/17
Advertisement
Related Manuals for Argos Cotbed 737/8443
Summary of Contents for Argos Cotbed 737/8443
- Page 1 Camborne - Cotbed Assembly Instructions - Please keep for future reference 737/8443 737/6483 Dimensions Width - 148,8m Depth - 80cm Height - 89,9cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 03456 400 800 Issue 1 - 05/07/17...
- Page 3 Components - Panels Please check you have all the panels listed below Headboard top x 2 Headboard bottom x 2 (80 x 55,9cm) (75,8 x 43,5cm) Side Frame x 2 (140 x 67,4cm) 4 Side bar x 2 (140 x 9,0cm) 5 Slat x 12 (67,8 x 7,0cm)
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Metal dowel x 4 Locking nut x 4 Allen key x 1 70mm Bolt x 8 Spacer x 02 35mm Screw x 24 Tools required Phillips screwdriver (medium &...
- Page 5 Assembly Instructions Option 1 This manual will show assembly of option 1 31,5 cm Option 2 53,5 cm...
- Page 6 Assembly Instructions Step1 Step2 Option 2 Option 1...
- Page 7 Assembly Instructions Step3 Insert locking nuts into side bars Make sure locking nuts are positioned as show Step4 Fit side bars to headboard bottom...
- Page 8 Assembly Instructions Step5 Fit side bars to headboard bottom...
- Page 9 Assembly Instructions Step6 Fix one side frame to the headboards using bolt and allen key...
- Page 10 Assembly Instructions Step5 Step7 Using allen key , tight locking nuts by turning them clockwisele lock.
- Page 11 Assembly Instructions Step5 Step8 using screws...
- Page 12 Assembly Instructions Step9 Fix the other side frame to the headboards using bolt and allen key...
- Page 13 Assembly Instructions Assembly Instructions Step11 Step 10 Assembling toddler bed Remove all bolts from the headboard, cotbase and side frames and take the cotbed apart. Step11 a) Screw metal dowels into headboard top 3l...
- Page 14 Assembly Instructions Step12 Fit the headboard top to the bed base. Step13 Using an allen key turn locking nuts clockwise to Assemble toddler bed...
- Page 15 Assembly Instructions Step14 Fit the other headboard top to the base, and using an allen key turn locking nuts clockwise to lock...
- Page 16 Assembly Instructions Step15 Assembly is complete. If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 03456 400 800...
