Prebena Slider 4C-Z50 Operating Note

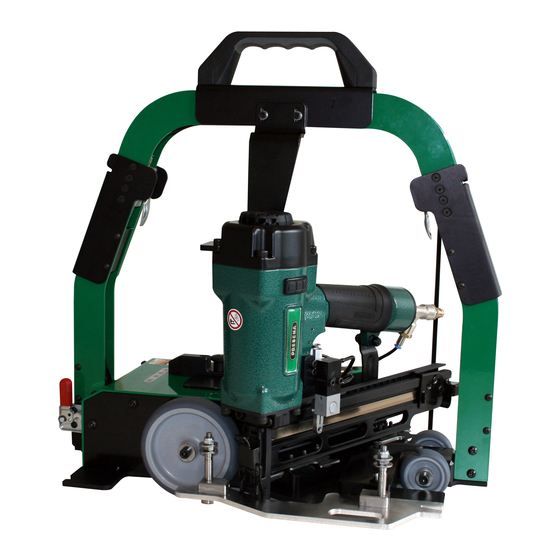

Operating note
Slider 4C-Z50, 4C-L50, 5C-Z75, 5C-Q67 oder 5C-L67:
ATTENTION! Separate the slider from the compressed air supply during
the following settings to avoid unintentional shots.

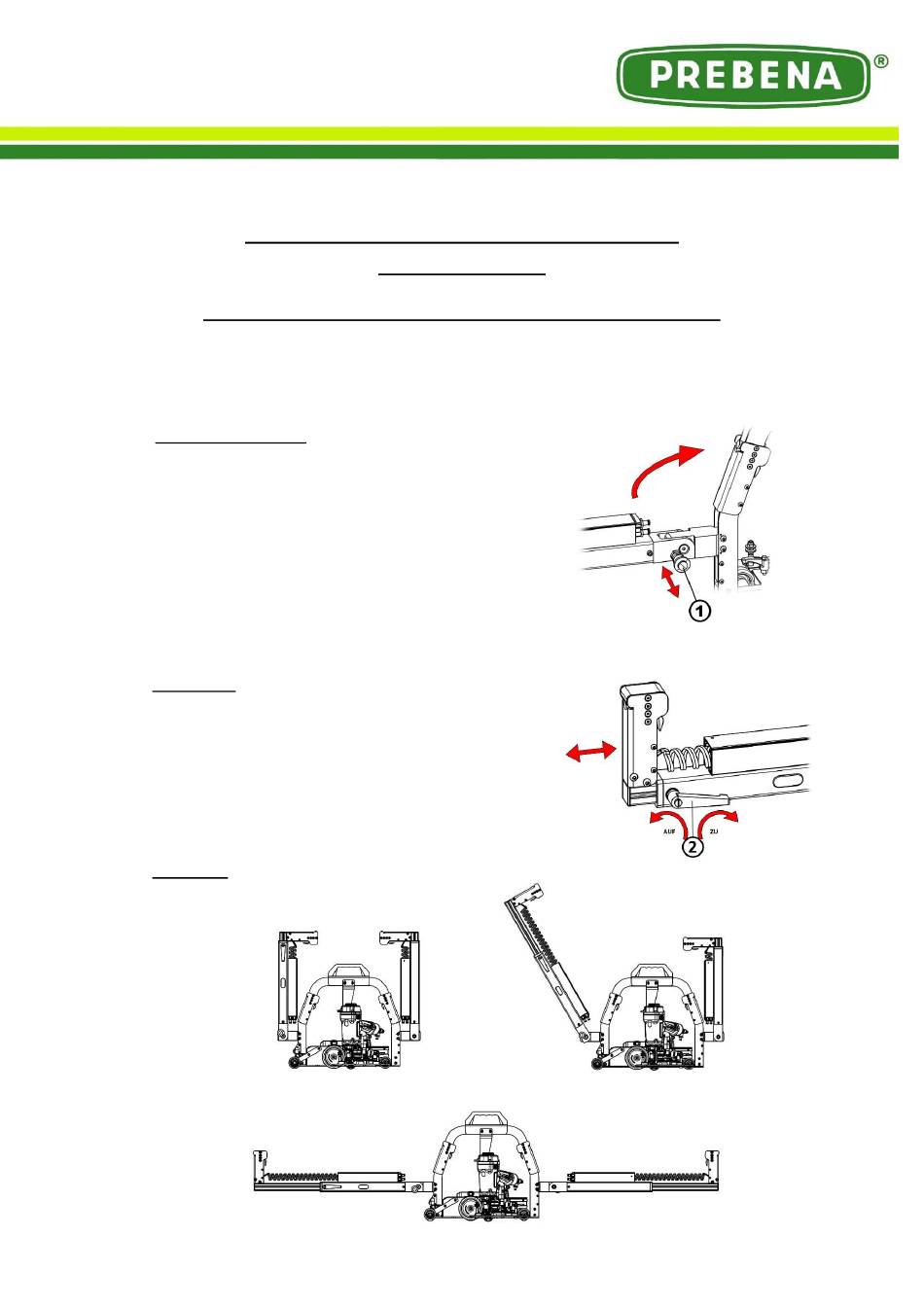

Pan telescopic arm:
Keep the red button on the locking pin (1) pushed and
pull back the black part. Now it is unlocked. While the
locking pin is pulled back you could choose the position
of the telescopic arm (positions Fig .3-5). Then release
the locking pin. Now it is locked when the red butten
juts out.
ATTENTION!
The locking pin only locks properly in the
shown positions (Fig.3-5).
Set length:
Turn the tension lever (2) anticlockwise for two turns to
open it. Then you can adjust the length of the telescopic
arm as desired by pulling or pushing on the handle. To fix
the telescopic arm, tighten the tension lever (2) clockwise.
Positions:
170619
for the telescopic arms
for device types:
Fig. 3
Fig. 5
Fig. 1
Fig. 2
30°
Fig. 4
97544702_EN
