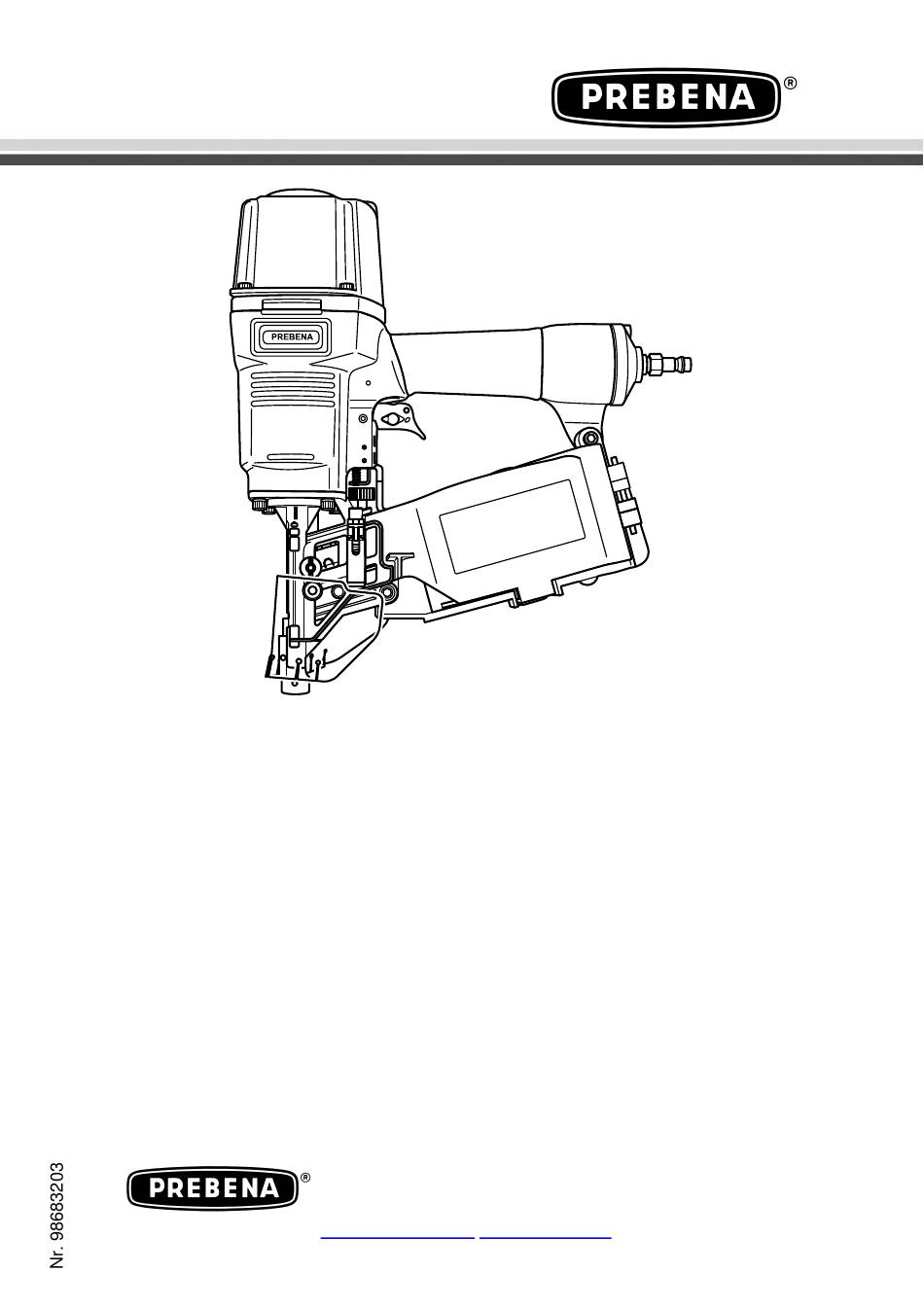

Original operating instructions for
Pneumatic Coilnailers
PREBENA 3X-CNW50
PREBENA 4X-CNZ45
PREBENA 5F-CNW65
PREBENA 7F-CNW90
PREBENA 9F-CNW100EPAL
_____________________________________________________
PREBENA Wilfried Bornemann GmbH & CO. KG
Seestraße 20 – 26, 63679 Schotten, Germany
Tel.: +49 (0) 60 44 / 96 01-0, Fax: +49 (0) 60 44 / 96 01-820
,
info@prebena.com
www.prebena.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prebena 3X-CNW50
Summary of Contents for Prebena 3X-CNW50
- Page 1 PREBENA 4X-CNZ45 PREBENA 5F-CNW65 PREBENA 7F-CNW90 PREBENA 9F-CNW100EPAL _____________________________________________________ PREBENA Wilfried Bornemann GmbH & CO. KG Seestraße 20 – 26, 63679 Schotten, Germany Tel.: +49 (0) 60 44 / 96 01-0, Fax: +49 (0) 60 44 / 96 01-820 info@prebena.com www.prebena.de...
- Page 2 Foreword This operating manual helps you in the proper, safe and effective use of the following pneumatic coilnailers: 3X-CNW50 4X-CNZ45 5F-CNW65 7F-CNW90 9F-CNW100EPAL. In this operating manual, these coilnailers are referred to as tackers for short. We assume that every user of the tacker is familiar with the use of pneumatic equipment and the materials employed.
-
Page 3: Table Of Contents
Table of Contents Layout Features ..................5 General layout features ................5 Features of the danger warnings ............5 Features of the warnings on material damage or environmental pollution5 Safety ......................6 Intended use ................... 6 Unauthorised use ..................6 Avoid risk of fatal injuries ................ - Page 4 Using the tacker ..................25 Select firing setting ................25 Set nailing depth ................... 26 Adjusting Type 7F-CNW90 ..............27 Adjusting the nailing depth via the working pressure ......27 Checking nailing depth ................. 28 Driving in nails ..................28 After use ....................
-
Page 5: Layout Features
Layout Features Layout Features General layout features Various elements in the operating manual are marked with specific layout features. This allows you to easily distinguish whether it is normal text, ● lists or work steps that you are reading. Tips contain additional information, such as for example special instructions for effective use of the tacker. -
Page 6: Safety
PREBENA WILFRIED BORNEMANN GMBH & CO. KG accepts no liability for any damage resulting from any such unauthorised use. -
Page 7: Avoid Risk Of Fatal Injuries
Safety Avoid risk of fatal injuries Never direct the tacker at people, animals or parts of their body. Only actuate the tacker when the tool nose is pressed against the workpiece. Do not allow children to play with packaging films - risk of suffocation. Ensure that the coilnails are not driven into power cables. -
Page 8: Description
Description Description Tacker overview " & "... - Page 9 Tool nose with trigger lock Protective cover Magazine lock Adjusting wheel for adjusting the nailing depth (Type 3X-CNW50, 4X-CNZ45, 5F-CNW65, 7F-CNW90 only) Thread for attachment of an additional handle (Typ 9F-CNW100EPAL) Selector switch for setting the firing mode (Type 3X-CNW50, 4X-CNZ45, 5F-CNW65, 7F-CNW90 only)
-
Page 10: Scope Of Supply
The 3X-CNW50, 5F-CNW65, 7F-CNW90 and 9F-CNW100EPAL tackers drive PREBENA coilnails individually into wood and packagings using compressed air. The 4X-CNZ45 tacker drives PREBENA roofing felt nails individually into roofing felt and bitumen shingles using compressed air. The 9F-CNW100EPAL tacker is used for manufacturing and repairing Europallets. -
Page 11: Product Features Of The Tackers
Description Product features of the tackers All types The tackers have the following common features: Firing protection Silencer 3X-CNW50 The tacker has the following additional features: Recoil-free Single and bump firing No-mar tip Setting of the nailing depth 4X-CNZ45 The tacker has the following additional features:... - Page 12 Description WARNING Danger of very serious injuries if the tacker is operated with defective or by-passed firing protection device. Use the tacker only with a fully functional firing protection device. Fire the tacker only when the tool nose is pressed firmly against the material. Warning signs on the tacker The following applications are not permitted with the trigger setting "repeat firing":...
-
Page 13: Accessories
The following accessories are available for the tackers: All tackers Nails (see overview from page 9 mm hose set Z 200.20 Spiral hose Z 160.12 PREBENA special nailer oil Hose reel Z 180.00 Z 200.10 Oil atomizer Z 200.00 5F-CNW65 Hanger loop ET 99300122 Weight balancer Z 110.32... -
Page 14: Preparing The Tacker
Preparing the tacker Preparing the tacker Unpacking the tacker Remove the tacker from the packaging. Remove all packaging materials, such as plastic films, filler material and the cardboard box.´ WARNING Do not allow children to play with plastic packaging films. Risk of suffocation! Do not allow children to play with plastic packaging films. -
Page 15: Connect Tacker To Compressed Air Supply
If no oiler is installed, the length of the air line to the tacker must not exceed max. 10 metres. Otherwise pour three to five drops of PREBENA special nailer oil directly into the air inlet port of the tacker every day before starting work. - Page 16 Preparing the tacker CAUTION Operation on compressed air systems not satisfying the preconditions described above can result in damage to the tacker. Operate the tacker only on suitable compressed air systems. Operate the tacker only when it is in a safe working condition.
-
Page 17: Open Magazine
Push the quick coupler (1) of the compressed air hose onto the connection (2) until it engages audibly. Check the working pressure at the pressure gauge of the compressor. The maximum admissible working pressure for the tackers 3X-CNW50, 4X- CNZ45, 5F-CNW65, 7F-CNW90 und 9F-CNW100EPAL is 8.3 bar. WARNING Risk of explosion if the maximum working pressure is exceeded. - Page 18 Preparing the tacker Type 9F-CNW100EPAL To open the magazine, press the magazine catch (1) upwards in the direction of the arrow. Slide out the magazine lock (2) to the left. Slide out the magazine (3) to the right. Type 4X-CNZ45 The 4X-CNZ45 tacker is equipped with a quick loading system.
-
Page 19: Set Nail Length
Preparing the tacker Set nail length Type 3X-CNW50, 5F-CNW65, 7F-CNW90 and 9F-CNW100EPAL Inside the magazine are two scales with centimetre and inch graduations. These scales indicate the selectable nail length in each case for the tacker. To use longer nails, pull the magazine shaft (1) out to the desired position. - Page 20 Preparing the tacker Type 4X-CNZ45 Inside the magazine are two scales with centimetre and inch graduations. These scales indicate the selectable nail lengths in each case for the tacker. To use longer nails, grip the magazine shaft (1) at the handle (2). Pull the magazine shaft out to the desired position.
-
Page 21: Inserting Nails
Preparing the tacker Inserting nails In insert the nails into the magazine, place the coil onto the magazine shaft. The tips of the nails must thereby touch the magazine disc. Roll out the end of the coil until you can place the first nail into the guide (1). -
Page 22: Close Magazine
Preparing the tacker Close magazine To close the magazine, push the magazine (1) inwards. Snap in the magazine lock (2). Press firmly against the magazine lock (3) until the magazine lock engages. The magazine is closed. Adjusting the vent To adjust the vent, turn the adjusting wheel (1) in the desired direction. Turn the vent so that the exhaust air is not directed at either yourself or other persons. -
Page 23: Use Of The Stop On Type 4X-Cnz45
Preparing the tacker Use of the stop on Type 4X-CNZ45 The 4X-CNZ45 tacker is equipped with an adjustable stop. The stop is located on the underside of the magazine. A centimetre (3) and inch (2) scale is provided for adjustment. To adjust the stop (1), press the stop lock (4) in the direction of the arrow. -
Page 24: Use With A Weight Balancer
The hanger loop (Article No. ET 99300122) can be obtained from PREBENA. To attach the loop (1) to the housing head, remove the rubber plug (2) from the thread. -
Page 25: Using The Tacker
Select firing setting Type 3X-CNW50, 4X-CNZ45, 5F-CNW65 and 7F-CNW90) The 3X-CNW50, 4X-CNZ45, 5F-CNW65 and 7F-CNW90 tackers can be set for single firing or for repeat firing. With the repeat firing setting, the trigger does not have to be pressed every time. Every firing of the tacker drives a nail into the material. -
Page 26: Set Nailing Depth
The firing setting is selected. Set nailing depth Type 3X-CNW50, 4X-CNZ45 and 5F-CNW65 On the 3X-CNW50, 4X-CNZ45 and 5F-CNW65 tackers you can set the nailing depth of the coilnail by adjusting the adjusting wheel and by changing the working pressure of the compressor. -
Page 27: Adjusting Type 7F-Cnw90
Using the tacker Adjusting Type 7F-CNW90 The nailing depth of Type 7F-CNW90 is determined by the position of the lower safety bracket. The higher you fit the lower safety bracket, the greater the nailing depth. To adjust the nailing depth, loosen socket-head screw (1). Move the lower safety bracket (2) vertically along the safety bracket (3) into the desired position. -
Page 28: Checking Nailing Depth
Using the tacker Checking nailing depth Press the tool nose against a wooden test block with the same characteristics as the material to be nailed. Check the setting with a single firing against the test material. Repeat these steps until the desired nailing depth is obtained. Driving in nails WARNING Risk of injury due to electric shock. - Page 29 Using the tacker A severe recoil occurs if nails are driven into excessively hard workpieces or into other nails. This can cause the tacker to slip off the workpiece. The nailing depth of the nails depends on the hardness and thickness of the wood and on the set working pressure.
-
Page 30: After Use
Using the tacker To fire the tacker repeatedly, proceed as follows: Check the setting by firing once. Lift the tacker off the wood. Adjust the desired nailing depth (see page 26), if necessary. Set the selector switch to "TTT" (repeat firing) (see page 25). Press the trigger lever. -
Page 31: Empty Magazine
Using the tacker Empty magazine Open the magazine as described from page 17. Remove the coil. Ensure that no wire residues remain in the magazine. Remove any wire residues, if necessary. Close the magazine as described from page 22. Transporting and storing the tacker Packing Pack the tacker before storage or before transporting over the following distances:... -
Page 32: Transporting
Using the tacker Transporting The method of transport differs, depending on whether you have to transport the tacker over long or short distances. Transport over short distances Short distances are distances of not more than 10 metres. WARNING Inadvertent firing can result in serious or even fatal injuries. -
Page 33: Storage
Using the tacker Storage Oil all metal parts of the tacker thinly with PREBENA special nailer oil. Pack the tacker in the transport case. Store the tacker at room temperature in a dry place protected from dust. Servicing the tacker The tacker may only be serviced by persons with the necessary know-how, abilities and experience. -
Page 34: Oiling The Tacker
If no oiler is installed and the length of the compressed air line to the tacker is more than 10 metres, adequate lubrication is not assured. In this case pour two to five drops of PREBENA special nailer oil directly into the port for the compressed air source every day before starting work. -
Page 35: Other Malfunctions
If malfunctions occur in the tacker that cannot be remedied by cleaning and oiling, please contact PREBENA Service. Do not carry out repairs to the tacker yourself. Ensure that all malfunctions in the tacker are remedied by PREBENA Service. Troubleshooting chart The following chart shows possible malfunctions and the necessary measures. - Page 36 Clean the magazine. driven in. Wrong nails loaded into Empty the magazine. the magazine. Fill the magazine with PREBENA nails (see page 37). The tacker is not Pour PREBENA special sufficiently lubricated. nailer oil into the compressed air port used.
-
Page 37: Ordering Accessories
Accessories can be re-ordered from the manufacturer (see page 41). Use only original PREBENA accessories or accessories approved by PREBENA for use with the tacker. Re-ordering nails The tackers may only be used with the PREBENA coilnails illustrated on the rating plate. 3X-CNW50 Drahtmaß... -
Page 38: Ordering Further Accessories
Never throw the tacker or parts thereof into the normal domestic refuse. If you wish to dispose of the tacker, send it to PREBENA. PREBENA will ensure proper disposal of the tacker. The contact data can be found on page 41. -
Page 39: Technical Data
Technical data Technical data 3X-CNW50 Tacker dimensions (L x W x H): 260 × 108 × 302 mm Weight of tacker: 1.55 kg Dimensions of transport case (L x W x H): 360 × 375 × 130 mm Weight of transport case with contents: 3.06 kg... - Page 40 5 – 8.3 bar Air consumption: 2.18 l/nailing Magazine type: coilnailer system Firing system: single firing with firing protection device Nail types: PREBENA coilnails Working temperature: –5° C to +45° C Storage/transport temperature: room temperature Vibration characteristic: 5.0 m/s² Noise levels...
-
Page 41: Manufacturer's Address
5 – 8.3 bar Air consumption: 5.38 l/nailing Magazine type: coilnailer system Firing system: single firing with firing protection device Nail types: PREBENA roofing felt nails Working temperature: –5° C to +45° C Storage/transport temperature: room temperature Vibration characteristic: 5.35m/s² Noise levels = 102.3 dB... -
Page 42: Guarantee
The guarantee does not cover wear parts such as e.g. O-rings, etc. It shall be at the discretion of PREBENA to observe the guarantee by replacement of the faulty part or by the supply of a new product. No further claims will be accepted. -
Page 43: Index
Index Index Quick coupler 15 Accessories 38 Adjustment Description Vent 22 Function 10 Air conditioner 15 Product features 11 Scope of supply 9 Air hose 14 Disposal 38 Applications 25 Europallets 10 Bitumen shingles 10 Exhaust air 22 CE symbol 13 Firing 25, 28 Check Fault 35... - Page 44 Nails 37 Disc 19 Empty 31 Fill 17 Lock 22 Placing into storage 33 Open 17 Shaft 19 Prebena 41 Malfunctions Preparation After-Sales Service 34 Adjust stop 23 Remedy 34 Attaching handle 23 Connect to compressed air Manufacturer's address 41...
- Page 45 Index Safety devices 11 Tool nose 24 Warning signs 12 Transport Safety bracket 27 Short distances 32 Safety devices Transport case 10, 31 Check condition 14 Trigger lever 9, 26 Selector switch 26 Troubleshooting 34 Service 33, 41 Setting Firing setting 25 Nailing depth 26, 27 Unauthorised use 12 Short distances 32...
- Page 46 KONTECXT GmbH www.technische-dokumentation.de _____________________________________________________ PREBENA Wilfried Bornemann GmbH & CO. KG Seestraße 20 – 26, 63679 Schotten, Germany Tel.: +49 (0) 60 44 / 96 01-0, Fax: +49 (0) 60 44 / 96 01-820 info@prebena.com www.prebena.de...
