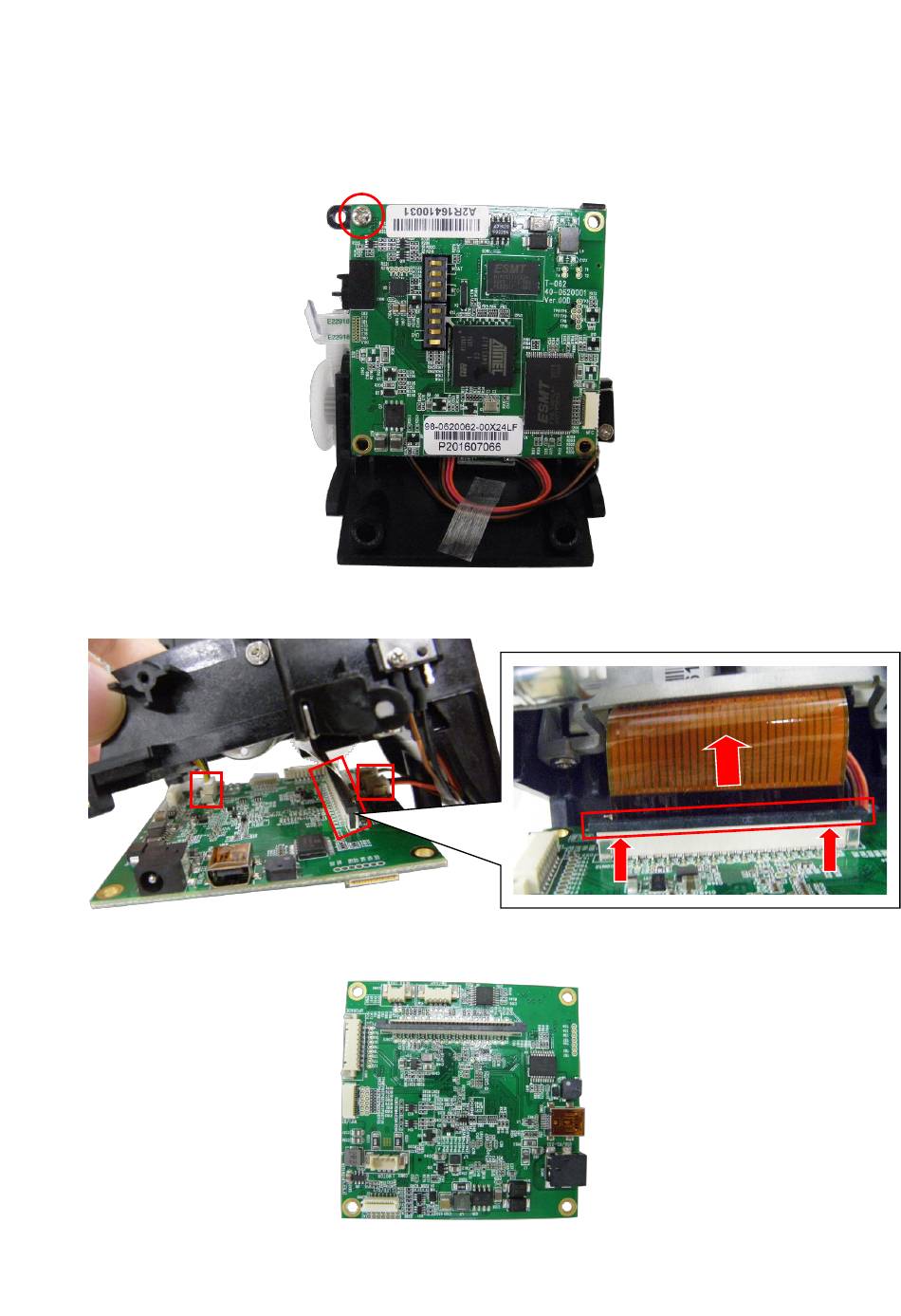

3.8 Replacing the Main Board Assembly
Refer to section 3.4 to remove the Wi-Fi or Bluetooth module.
1.
Remove a screw on the main board.
2.
Disconnect all the connectors on the main board. (For TPH connector, loosen the
3.
connector lock (black) then disconnect the flat cable from the main board.)
Replace the main board.
4.
22
2
1
