Delta LYTE DRL-24V480W1A Series Technical Data Sheet

TECHINCAL DATASHEET
LYTE DIN Rail Power Supply
24V 480W 1 Phase / DRL-24V480W1A

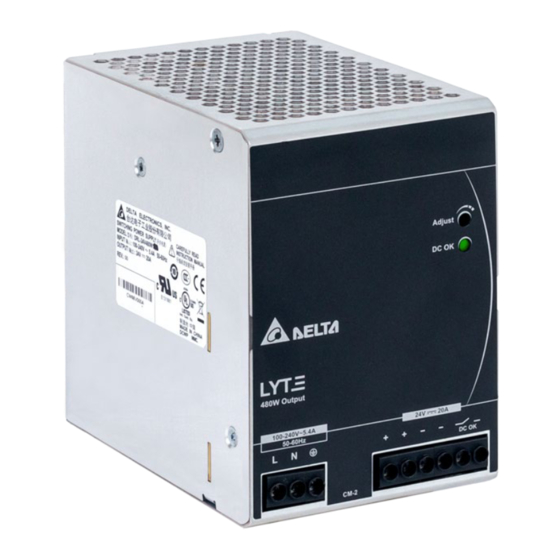

*This picture is for reference to DRL-24V480W series only.
General Description
Delta's LYTE DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many
general industrial applications, without compromising on quality and reliability. The convection-cooled LYTE series will operate
between -20°C to +70°C, with full rated power available from -10°C to +50°C at 230Vac. The overcurrent protection is designed to
operate in constant current mode, which makes the LYTE series suitable for inductive and capacitive load applications. The product is
certified according to safety standards IEC/EN/UL 60950-1 & IEC/EN/UL 62368-1 for Information Technology Equipment (ITE) and UL
508 for Industrial Control Equipment (ICE). Electromagnetic radiated and conducted emissions are compliant to EN 55032, Class B;
and, the product is RoHS compliant for environmental protection.
Model Information
LYTE DIN Rail Power Supply
Model Number
DRL-24V480W1A☐
Model Numbering
L –
DR
DIN Rail Product Type
L – LYTE Series
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (December 2020, Rev. 05)
Arrow.com.
Downloaded from
Input Voltage Range
85-264Vac (120-375Vdc)
24V
480W
Output Voltage Output Power
□
Highlights & Features
• Universal AC input voltage
Built-in constant current circuit for reactive loads
•
• Up to 88.0% efficiency
Full power from -20°C to +50°C operation at 230Vac
•
@ 5,000 meters or 16,400 feet altitude
Built-in DC OK relay contact option available
•
• Compliance to SEMI F47 @ 200Vac
Conformal coating on PCBAs to protect against common
•
dust and chemical pollutants
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Rated Output Voltage
24Vdc
1 A
Single Phase Delta
Standard
DRL-24V480W1A☐
1.30 kg (2.86 lb)
123.6 x 85.5 x 128.5 mm
(4.87 x 3.37 x 5.06 inch)
Rated Output Current
20.0A
□
A – Without DC OK Contact
S – With DC OK Relay Contact
