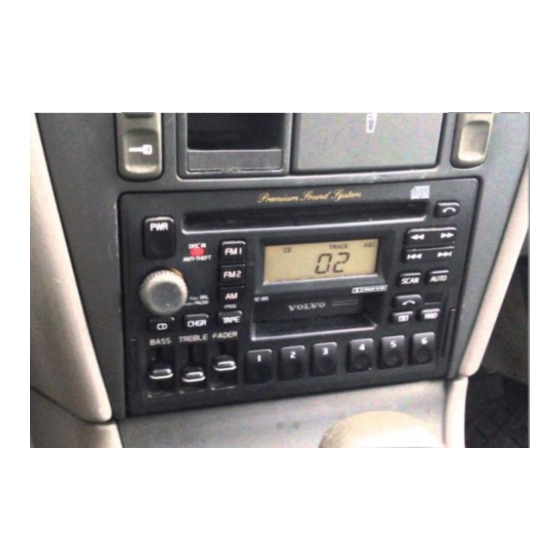

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-VOL QUICK START BLUETOOTH INSTALLATION GUIDE FOR VOLVO CD CHANGER CONTROLLING RADIOS...
-
Page 2: Installation
Introduction Many Volvo car owner’s adamant about keeping their cars as stock possible, will be thrilled with the A2DIY-VOL kit which adds modern Bluetooth features without changing the look and feel of dashboard components. Features Bluetooth Hands-Free and music streaming from any Smartphone with A2DP and HFP Fig. - Page 3 Connect harness 8-pin plug (See Fig. 3) to “CD” port (See. Fig. 4). Factory CD changer (if present) must be disconnected. Fig. 6 Optional push-button microphone: Connect microphone plug to Module “MIC” input jack and secure button in location within driver reach (cable is 6ft.
- Page 4 Flush to Dash or Panel (requires drilling) Drill a ¾” hole in the dash or panel using a step drill bit or equivalent (See Fig. 10) Tap YELLOW wire from installation harness to YELLOW/PURPLE (Battery supply) wire on radio harness or another source for 12V Fig.
- Page 5 Push USB head (See Fig. 13) until it snaps in place and flush with mounting surface (See Fig. 14) Fig. 15 USB mounting bracket Insert the 6 ft. USB male terminal through bracket hole (See Fig. 16) Fig. 13 and connect to Module USB port (See Fig. 12) USB head Fig.
-
Page 6: Media Button
Attach button to steering wheel (includes holder) or dashboard using included double sided tape – your choice! The A2DIY-VOL connects to one device at a time. You must disconnect/unpair first device before pairing a second, or simply disable Bluetooth on first device. -
Page 7: Operation
Operation: Volvo Bluetooth comparison chart Once paired with smartphone/Tablet, users may perform the following functions Feature A2D-VOL A2DIY-BKR on iOS devices with Bluetooth 3.0 and later or Android 4.0 or later. Media button functions are NOT applicable to the C5 radio. CD changer retention 3.5mm AUX input ✓... -
Page 8: Noise Filter Installation
Operation: Turn ignition to ACC and radio “ON” 2. Press radio “CD” CHG” or “CHGR” button to enter AUX mode 3. Launch smartphone music streaming application 4. Use media button to change tracks, adjust device volume, pause etc. 5. Place phone call or ask someone to call. 6. - Page 9 Volume button on radio is used to set the playback level. 5. Can I pair or save more than one device to the A2DIY-VOL? YES; more than one device (slaves) can be paired however only one connection can be active at a time. To pair a second device, you must disconnect first device.
