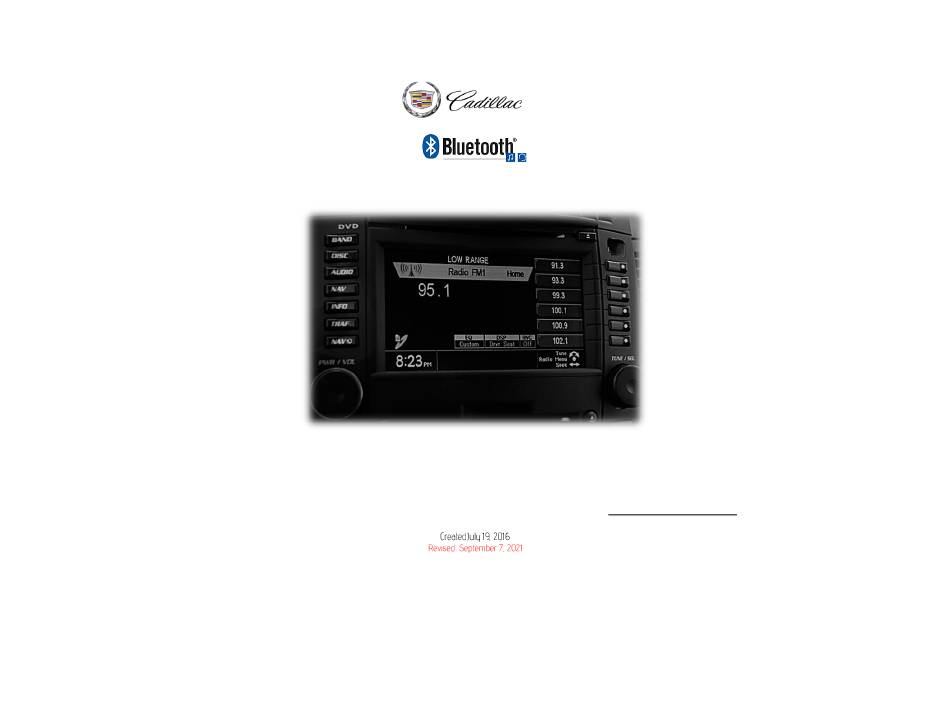

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-CTSx QUICK START INSTALLATION GUIDE FOR SELECT 2003-07 CADILLAC CTS/SRX WITH XM TUNER MODULE...
-
Page 2: Installation
If your state has enforced hands-free laws and you own a 1 Generation CTS or SRX with an XM tuner module (with or without subscription), the A2DIY-CTSx is for you! This kit supports Hands-free calls, music streaming and option to retain Open ash tray and remove tray. - Page 3 Remove the (4) 10mm screws securing radio to the dash (See Fig. 3) Fig. 5 Connect harness 8-pin BLACK plug (See Fig. 6) to radio chamber vacated in step 6. Warning: Module is wired to receive 12V from radio amplifier turn on lead (PIN 2-gray plug);...
- Page 4 Non-XM subscribers: Connect included 3.5mm male to male audio cable Excursive caution when routing microphone so to not damage the (See Fig. 7) to module “AUX” jack (See Fig. 8) and route other end to front cable and ensure no ventilation ducts are pointed towards of the dash where aux device will reside (within 3ft.) microphone.
- Page 5 Optional charging kit : (not for thumb drives etc.) Optional “Fast charging” kit can be added to the A2DIY-CTSx. Should you decide to purchase, we suggest one of 2 connecting options: A. Flush to dash/panel requires drilling a ¾” hole B.
-
Page 6: Bracket Mount
Bracket Mount Media button operation: (No drilling) Locate a flat surface at location of choice within 3.2 ft. of module to Pairing media button: mount USB support bracket (See Fig. 15) using adhesive/tape or Ensure Bluetooth is enabled on your device (e.g., screws (included). -
Page 7: Operation
Operation: Module Pairing: Once paired with smartphone/Tablet, users may perform the following functions Pairing varies among devices but basic steps are the same. This process is done on iOS devices with Bluetooth 3.0 and later or Android 4.0 or later. upon initial install and will not have to be repeated. -
Page 8: Test Operation
Operation: Frequent ask questions & troubleshooting: Test Operation: My XM subscription has expired. Will the A2DIY-CTSx work without subscription? YES. If subscription has expired (no plans to renew in the future), an AUX Turn ignition and radio “ON” input jack is provided through which users can connect and play portable 2. - Page 9 For help email support@discountcarstereo.com © 1995-September 7, 2021 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
