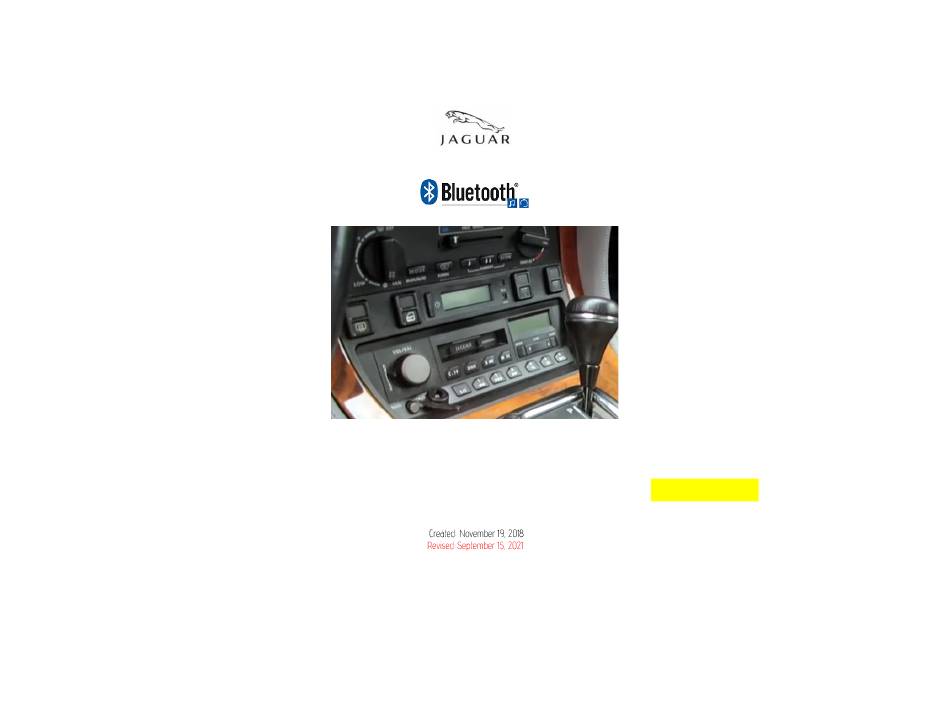

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-JAG97CD QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT PRE-1998 JAGUAR WITH CD CHANGER...
- Page 2 GPS etc.) while also retaining usage of the CD changer. In addition, an optional “Fast charge” USB port is available to keep those current hungry devices charged while on the road. The A2DIY-JAG97CD upgrades older Jaguars to support Bluetooth features only available on newer cars.
- Page 3 Connect/splice/tap red wire (See Fig. 4) to a 12V accessory (switched) supply in vehicle. 12V accessory or switched supply may be available at cigar lighter Orange/Brown wire, or pin 11 (light green/orange or White/Yellow) wire on radio 14-pin power/speaker plug etc. Avoid connecting red wire to 12V battery (always on) Warning: Fig.
- Page 4 Optional charging kit Optional USB charging port can be added to the A2DIY-JAG97CD to keep devices charged while on the road. Should you decide to add it, we suggest one of 2 connecting options: A. Flush to dash/panel requires drilling a ¾” hole Fig.
-
Page 5: Bracket Mount
Fig. 16 Snap USB head (See Fig. 16) to bracket until flush (See Fig. 17) Fig. 14 Flush mounted to dash Tuck and secure any extra wire from moving parts and test operation Fig. 17 Tuck and secure any extra wire away from moving parts and test Bracket Mount See Bluetooth Pairing and Connection (No drilling) - Page 6 Operation: Bluetooth media button Once paired with smart device (e.g., Phone, Tablet, etc.), users may perform the Pairing: Ensure Bluetooth is enabled on your device (e.g., Smartphone/Tablet following functions on iOS with Bluetooth 3.0 and later or Android 4.0 or later. etc.) The media button function applies to smartphone NOT the Jaguar radio.
- Page 7 Bluetooth module pairing and connection Operation This process must be carried out upon initial install after which module automatically reconnects with paired phone. Turn ignition and radio “ON” Load at least one disc in changer magazine (important) Go to smartphone settings and enable Bluetooth Press “CD”...
- Page 8 Does the A2DIY-JAG97CD work in premium systems? Does the A2DIY-JAG97CD supports hands-free calls? YES; the A2DIY-JAG97CD works in all pre 1998 Jaguar audio systems with a YES. In addition to music streaming and changer playback retention, the CD changer. CD Changer remains connected and functional.
