INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008936

SYNOPSIS:

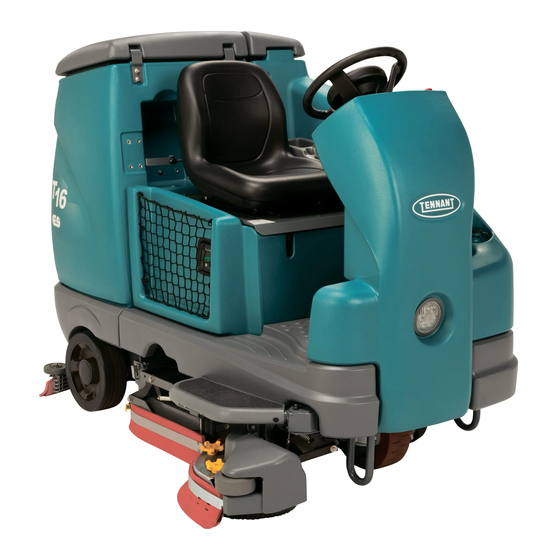

This kit contains the parts needed to replace the rear squeegee vacuum hose on T16 scrubbers not
equipped with the optional vacuum wand assembly.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 15 minutes)

PREPARATION:

1. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
VELCRO is a registered trademark of Velcro Industries B.V.
®
IB 9008935 (04- -2011)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, old machine components,
and hazardous fluids in an environmentally safe way according to
local waste disposal regulations.
Always remember to recycle.

INSTALLATION:

1. Remove the existing vacuum hose from the
machine. Discard the vacuum hose.
2. Install the Velcro strap (2) onto the end of
®
the vacuum hose (1) with the cuff. Refer to
Fig. 1.

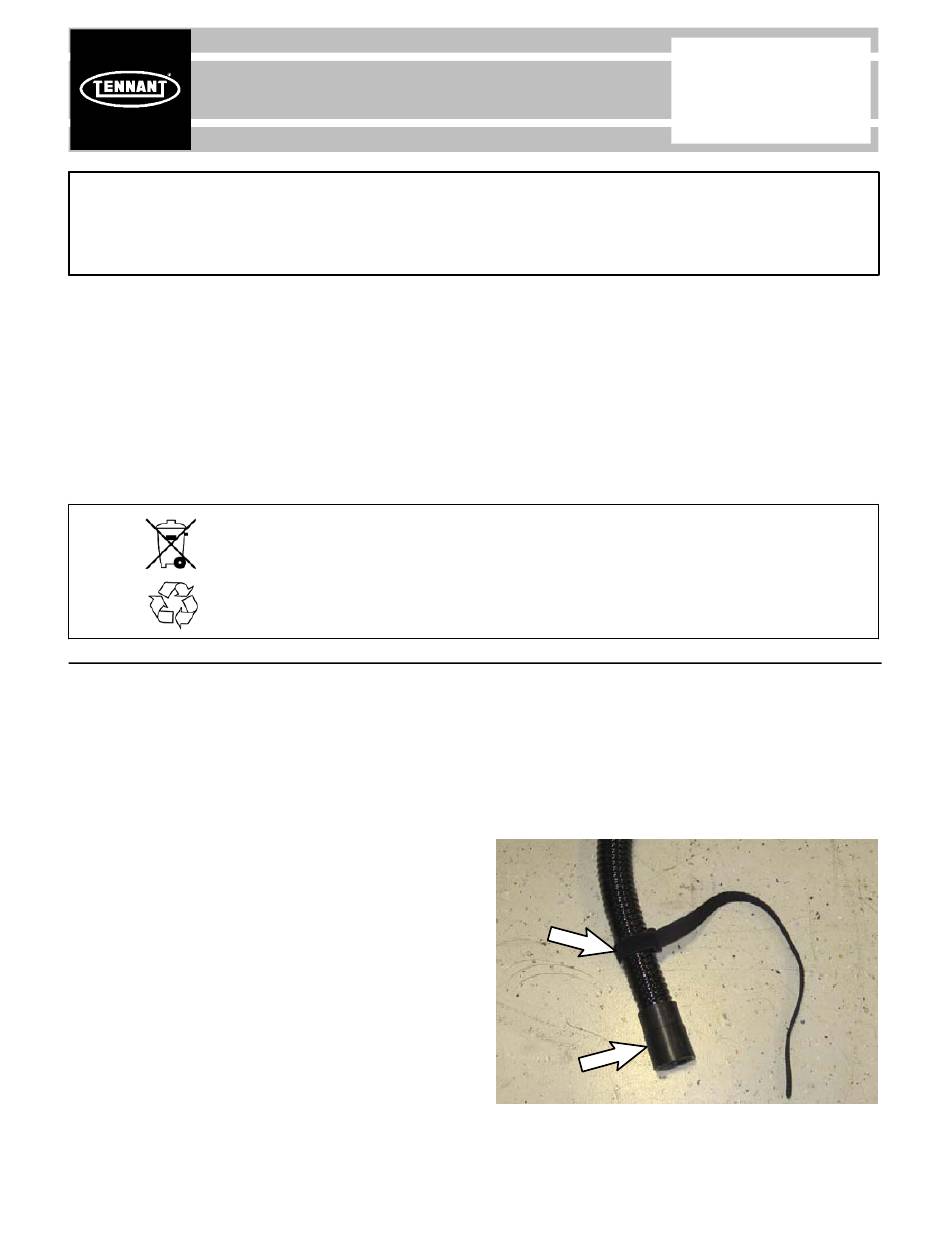

FIG. 1
No. 9008935
Machine: T16
Published: 04- -2011
Rev. 00
