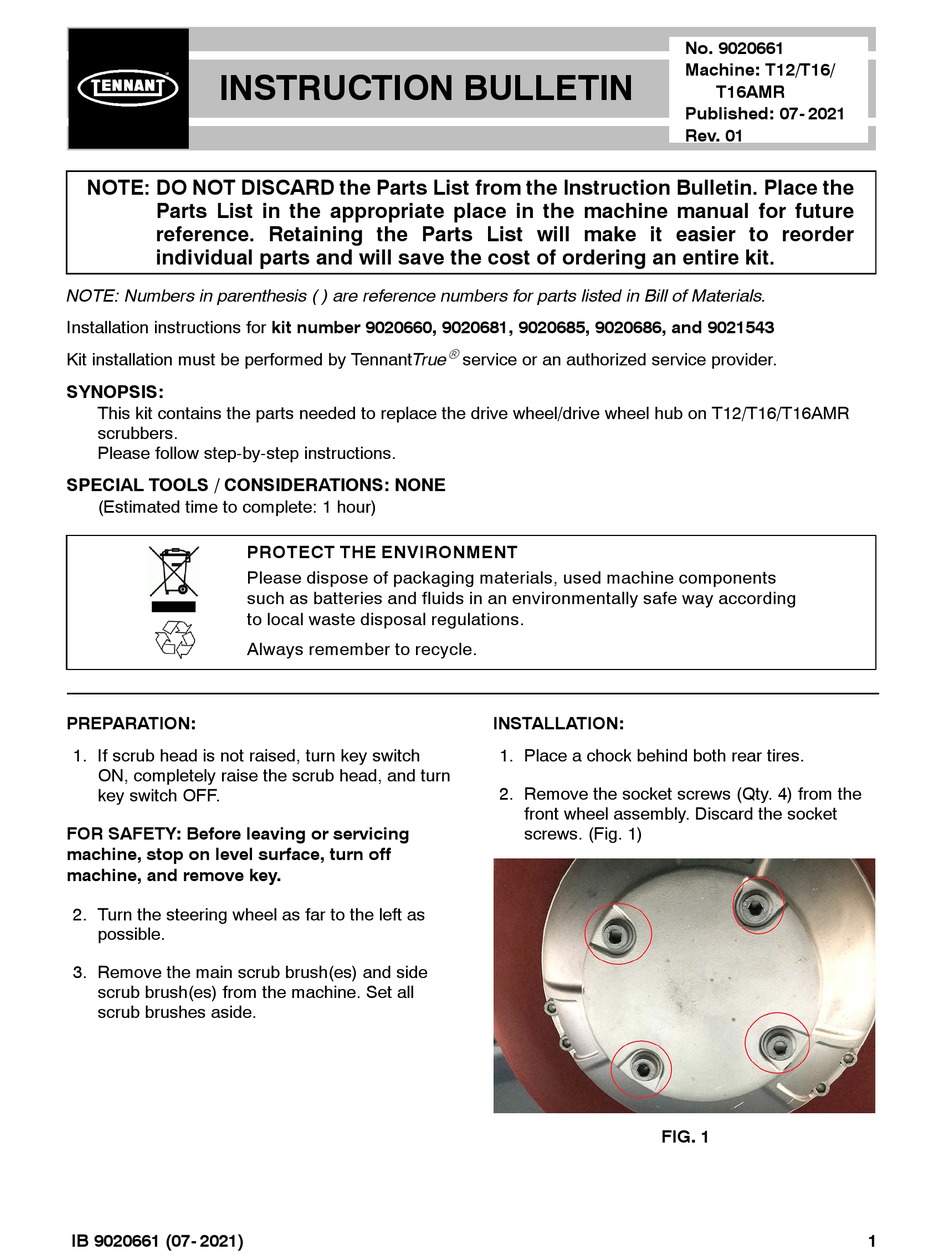

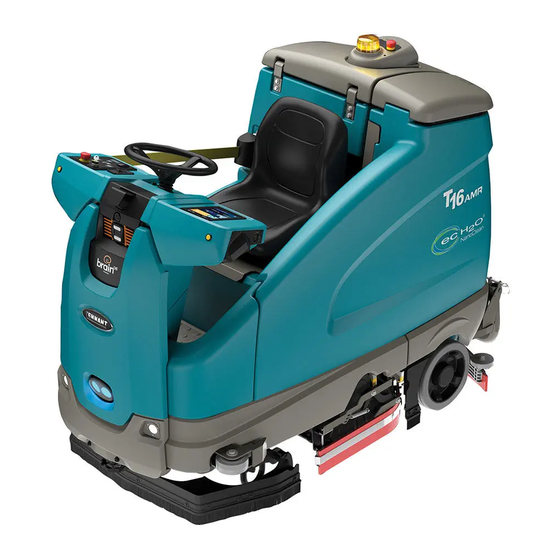

Tennant T16AMR Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9020660, 9020681, 9020685, 9020686, and 9021543
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to replace the drive wheel/drive wheel hub on T12/T16/T16AMR
scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
1. If scrub head is not raised, turn key switch
ON, completely raise the scrub head, and turn
key switch OFF.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Turn the steering wheel as far to the left as
possible.
3. Remove the main scrub brush(es) and side
scrub brush(es) from the machine. Set all
scrub brushes aside.
IB 9020661 (07- 2021)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

service or an authorized service provider.
INSTALLATION:
1. Place a chock behind both rear tires.
2. Remove the socket screws (Qty. 4) from the
front wheel assembly. Discard the socket
screws. (Fig. 1)
No. 9020661
Machine: T12/T16/
T16AMR
Published: 07- 2021
Rev. 01
FIG. 1
1
