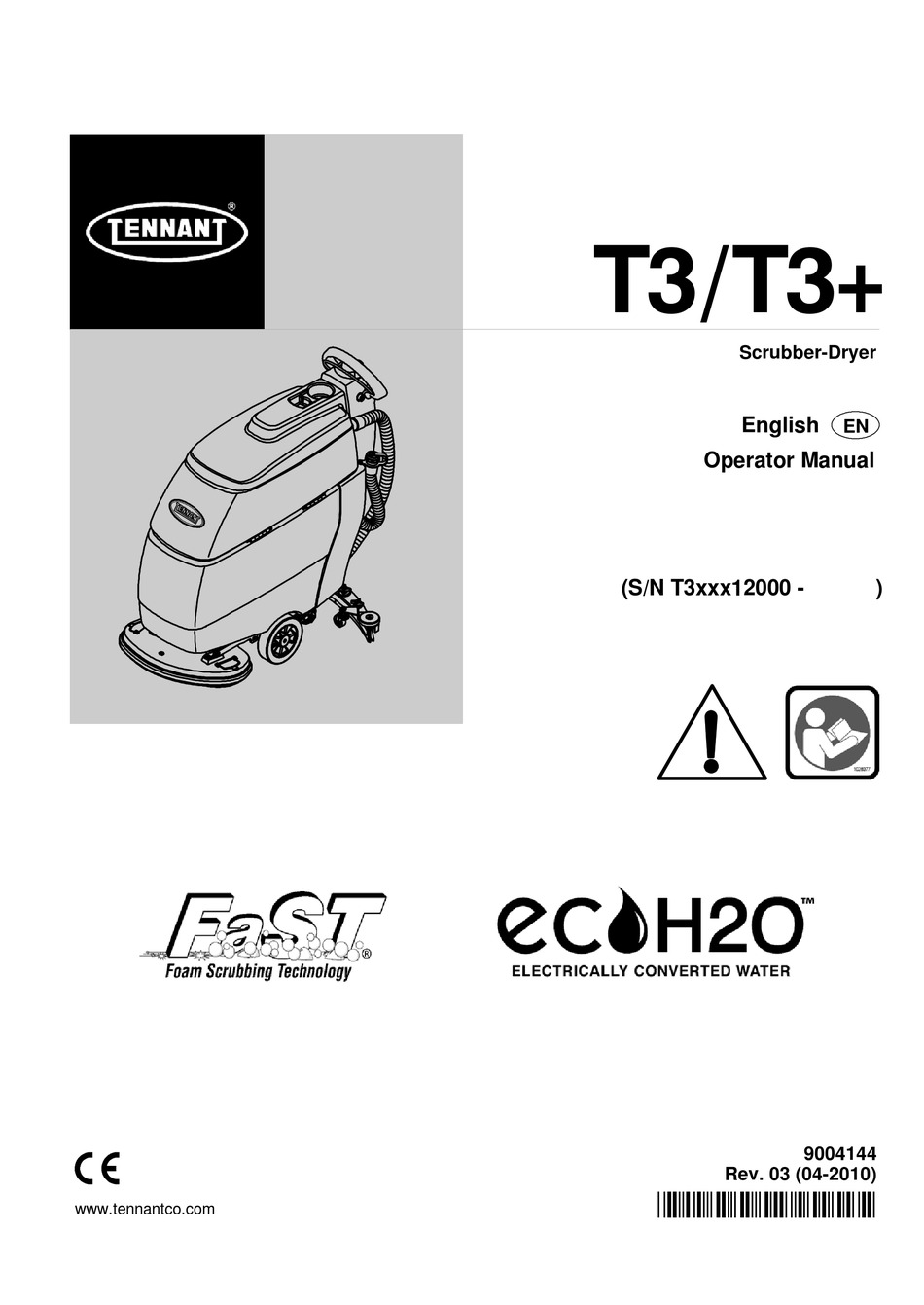

  • Page 1 T3/T3+ Scrubber-Dryer English Operator Manual (S/N T3xxx12000 - 9004144 Rev. 03 (04-2010) *9004144* www.tennantco.com Home Find... Go To..

  • Page 2: Machine Data

    P.O. Box 6 5400 AA Uden- -The Netherlands europe@tennantco.com www.tennantco.com Specifications and parts are subject to change without notice. Original instructions, copyright E2008, 2010 Tennant Company. All rights reserved. EC DECLARATION OF CONFORMITY FOR MACHINERY (Annex II, sub A) TENNANT N.V.

  • Page 3: Table Of Contents

    ON--BOARD BATTERY CHARGER FAULT CODES ......Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 4: Safety Precautions

    WARNING: Spinning Brush. Keep Hands Away. Turn Off Power Before Working On Machine. Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 5: Safety Labels

    Flame Away. Keep Battery Compartment Open When Charg- ing. SPINNING BRUSH LABEL - - cated on scrub head WARNING: Spinning Brush. Keep Hands Away. Turn Off Pow- er Before Working On Machine. Tennant T3 / T3+ (01- -08) Home Find... Go To..

  • Page 6: Machine Components

    32. Wall Rollers 15. Squeegee Assembly 33. Parking Brake 16. Solution Flow Control Knob 34. ec- -H2O System Indicator light (ec- -H2O Model) 17. Solution Tank Clean-Out Port 18. Squeegee Lift Lever Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 7: Control Panel Symbols

    ATTENTION: Do not roll machine off pallet unless a ramp is used, machine damage may occur. ATTENTION: To prevent possible machine damage, install batteries after removing machine from shipping pallet. FIG. 1 Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 8: How The Machine Works

    The converted water then returns to normal water in the recovery tank. Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 9: Machine Setup

    FIG. 5 Spring Clip 5. Check the squeegee blades for proper adjustment FIG. 8 (See SQUEEGEE BLADE ADJUSTMENT). Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 10: Installing Fast--Pak (Fast Model)

    FIG. 12 NOTE: When filling the solution tank with a bucket, make sure that the bucket is clean. Do not use the same bucket for filling and draining the machine. Tennant T3 / T3+ (03- -08) Home Find... Go To..

  • Page 11: Machine Operation

    - For FaST or ec- H2O Scrubbing: Ensure that all conventional cleaning agents are drained and rinsed from solution tank. FIG. 14 Tennant T3 / T3+ (09- -08) Home Find... Go To..
  • Page 12 (Figure 18). FIG. 20 10. To stop scrubbing, release the control handle bail, NOTE: 45--60 meters per minute is the recommended raise the scrub head and the squeegee. scrubbing speed. Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 13: Emergency Stopping (Drive Model)

    20 minutes during scrubbing (See MACHINE MAINTENANCE). foam scrubbing with the FaST Model. 10. When the solution tank runs dry, empty the recovery tank before refilling. Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 14: Battery Meter

    (Figure 25). If the red light appears, the scrubbing function will shut off automatically. This protects the batteries from total discharge. Recharge FIG. 27 the batteries immediately. Stop scrubbing and recharge batteries FIG. 25 Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 15: Draining Tanks

    (Figure 29). water (60°C maximum) directly into the two fill--ports located under the recovery tank (Figure 32). FIG. 29 FIG. 32 Tennant T3 / T3+ (03- -08) Home Find... Go To..

  • Page 16: Charging Batteries

    FIG. 36 To determine your battery type, see battery label. If not specified, contact your battery supplier. To verify the setting of the charger profile: Tennant T3 / T3+ (01- -08) Home Find... Go To..

  • Page 17: On--Board Battery Charger Fault Codes

    Contact Service Center Internal short circuit -- blown output fuse Replace battery charger Red Light Flashing Safety timer exceeded maximum charging Repeat charging cycle. If error repeats, re- time place batteries Tennant T3 / T3+ (01- -08) Home Find... Go To..

  • Page 18: Machine Maintenance

    6. Remove the pad(s)/brush(es) and clean. Rotate pad or replace when worn (Figure 46). FIG. 42 3. Remove and clean the float shut--off screen located in the recovery tank (Figure 43). FIG. 46 FIG. 43 Tennant T3 / T3+ (01- -08) Home Find... Go To..
  • Page 19 (Figure 52). (See CHARGING FOR SAFETY: When cleaning machine, do not BATTERIES). power spray or hose off machine. Electrical malfunction may occur. FIG. 52 FIG. 49 Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 20: Monthly Maintenance

    Water Filter solvent. (50 Mesh/Brown) 6. Check the machine for loose nuts and bolts. 7. Check the machine for leaks. MOTOR MAINTENANCE Contact an Authorized Tennant Service Center for carbon brush replacement. Air Filter (50 Mesh/Brown) Carbon Brush Replacement Hours Drive Transaxle Motor FIG.

  • Page 21: Ec--H2O Module Flush Procedure

    Make sure the Authorized Service Center. retainer plate tabs engage the blade slots. Reinstall the band then retighten the knobs. Retainer Plate FIG. 57 FIG. 60 Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 22: Squeegee Blade Adjustment

    Use a scrub brush with a mixture of baking soda and water (Figure 64). FOR SAFETY: When cleaning batteries, wear protective gloves and eye protection. Avoid contact with battery acid. FIG. 62 FIG. 64 Tennant T3 / T3+ (01- -08) Home Find... Go To..

  • Page 23: Brush Motor Belt Replacement (Dual Disk Models)

    6. To install belt, use a socket driver ratchet with an extension and a large flathead screwdriver as shown. The hub driver is equipped with tool slots (Figure 70). FIG. 67 FIG. 70 Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 24: Transporting Machine

    Continue with the freeze protection procedure if 1. Raise the squeegee and scrub head. machine is equipped with the ec- -H2O system. 2. Load the machine using a recommended loading ramp. Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 25: Recommended Stock Items

    3. Disconnect the black connector fitting at the scrub head and place the hose into a bucket (Figure 74). To access the connector fitting, you may have to remove the front cover from the machine. FIG. 74 Tennant T3 / T3+ (09- -08) Home Find... Go To..

  • Page 26: Troubleshooting

    Contact Service Center Faulty FaST system on/off switch Contact Service Center Faulty pump Contact Service Center Clogged solution tank filter Drain solution tank. remove solution tank filter, clean and reinstall Tennant T3 / T3+ (04- -10) Home Find... Go To..
  • Page 27 - H2O Model: ec- - H2O system indicator light does not turn on Clogged module Contact Service Center - H2O Model: No water flow Defective solution pump Replace solution pump Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 28: Battery Meter Led Fault Codes (Drive Model)

    Recharge batteries immediately. Eight Controller tripped. Contact Service Center. High battery voltage reading Check battery connections. No Bars Sleep mode Turn key to restore. Bars Rippling Throttle engaged. Release activation bail. Tennant T3 / T3+ (01- -08) Home Find... Go To..

  • Page 29: Specifications

    0.72 L/min (optional) 0.72 L/min (optional) 0.76 L/min (optional) 0.95 L/min (optional) 0.95 L/min (optional) 0.95 L/min (optional) * If the optional solution flow rates are required, contact an Authorized Service Center. Tennant T3 / T3+ (04- -10) Home Find... Go To..

  • Page 30: Machine Dimensions

    OPERATION MACHINE DIMENSIONS 486mm 517mm * 560 mm** 1090 mm 1128 mm 760 mm 1167 mm * 1225 mm** 50 cm Dual Disk Model 60 cm Dual Disk Model Tennant T3 / T3+ (01- -08) Home Find... Go To..
