INSTRUCTION BULLETIN

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008033

SYNOPSIS:

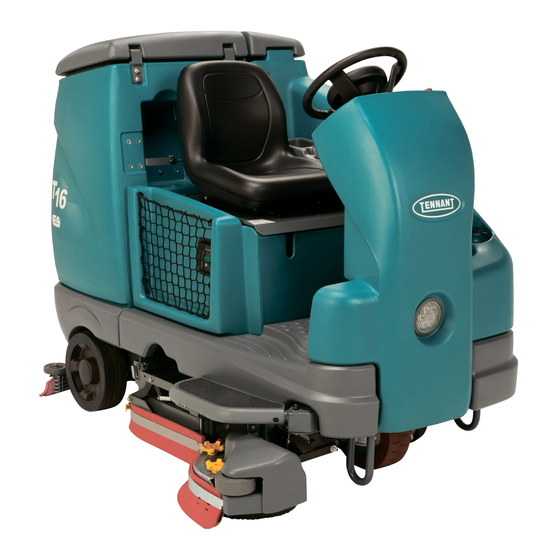

This kit contains the parts needed to install the deluxe seat onto T16 scrubbers.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, and remove the key.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Disconnect the battery cables from the

batteries.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

IB 9008540 (07- -2011)

No. 9008540

Machine: T16

Published: 07- -2011

Rev. 00

Need help?

Do you have a question about the T16 and is the answer not in the manual?

Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9008033 SYNOPSIS: This kit contains the parts needed to install the deluxe seat onto T16 scrubbers. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE...
Page 2 INSTALLATION: Remove and discard seat Remove and discard seat slide rail and hardware Remove and discard seat slide rail and hardware Seat switch harness Seat plate Remove and Remove and discard discardhardware hardware FIG. 1 1. Remove the existing seat assembly from the 4.
Page 3 7. Position the suspension seat (1) onto the seat 10. Use two SEMS hex screws (14) to install the plate and connect the seat switch harness to arm rest (13) onto the suspension seat (1). the seat switch. Refer to Fig. 2. 8.
Page 4 Bill Of Materials For Seat Kit, Dlx, CI [T16] - - 9008033 Tennant Part No. Ref. Description Qty. 9008033 Seat Kit, Dlx, CI [T16] 223595 Seat, Suspension [Michigan Model V--5200] 223078 Switch, Seat, No [Delta 6500] 01760 Nut, Hex, Lock, .31--18, NL, Thin 32491 Washer, Flat, 0.31, Std...
