INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9008115
SYNOPSIS:

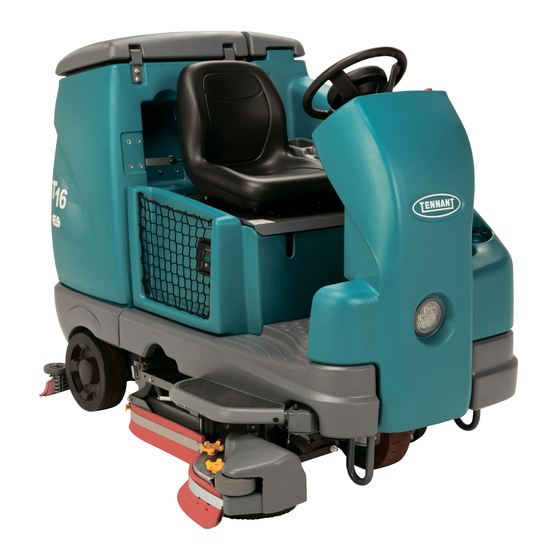

This kit contains the parts needed to replace the spray nozzle hose on T16 scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
1. Completely empty the solution tank and the
recovery tank. Refer to the Operators Manual
for instructions how to empty both tanks.
2. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
3. Disconnect the battery cables from the
batteries.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
4. Disconnect the main wire harness from the
vacuum fan assembly.
5. Remove the vacuum fan assembly from the
back end of the machine. Set the vacuum fan
assembly and hardware aside.
IB 9008464 (07- -2011)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components,
and hazardous fluids in an environmentally safe manner according
to local waste disposal regulations.
Always remember to recycle.
6. Remove the cable clamp securing the 35"
solution supply hose to the spray nozzle
assembly. Set the cable clamp aside and M8
hex screw aside. Refer to Fig. 1.
7. Disconnect the 35" solution supply hose from
the spray nozzle assembly. Set the hose
clamp aside. Refer to Fig. 1.
8. Remove the rotary fitting from the spray
nozzle assembly. Set the rotary fitting aside.
Refer to Fig. 1.
9. Use a cable tie (2) to secure the reel
assembly to the mounting plate. Refer to
Fig. 1.
10. Remove the spray nozzle assembly from the
machine. Set the M8 hex screws aside. Refer
to Fig. 1.
11. Remove the hose from the spray nozzle
assembly. Set the hose clamp aside. Refer to
Fig. 1.
12. Remove the spray nozzle gun and fitting from
the hose. Set the spray nozzle gun and fitting
aside. Discard the hose. Refer to Fig. 1.
No. 9008464
Machine: T16
Published: 07- -2011
Rev. 00
