INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9008135
SYNOPSIS:

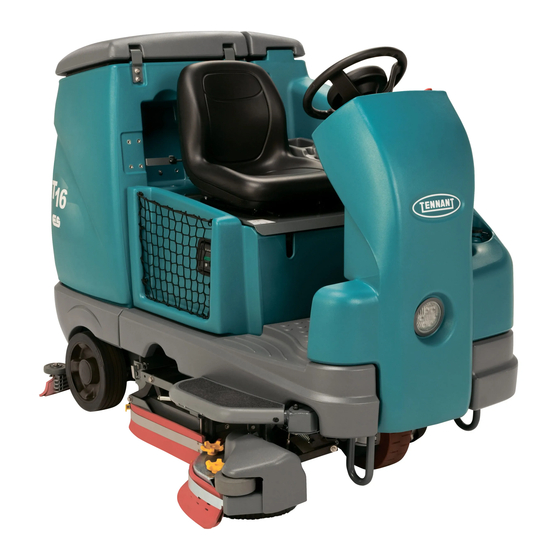

This kit contains the parts needed to install a strobe light kit on T16 scrubbers equipped with overhead
guards.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1.25 hours)

PREPARATION:

1. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Disconnect the battery cables from the
batteries.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
IB 9007961 (08- 2015)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
No. 9007961
Machine: T16
Published: 08- 2015
Rev. 01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T16

Summary of Contents for Tennant T16

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9008135 SYNOPSIS: This kit contains the parts needed to install a strobe light kit on T16 scrubbers equipped with overhead guards. Please follow step-by-step instructions.
  • Page 2 INSTALLATION: 3. Insert the rocker switch (12) into the instrument panel where the hole plug was NOTE: Complete Step 1 through Step 5 only if previously located. (Fig. 1) machine is not equipped with a front headlight. Proceed to Step 6 if machine is equipped with 4.
  • Page 3 6. Crimp the bullet terminals (11) onto the strobe 9. Use two M5 pan screws (2), two flat washers light (1) wires. (Fig. 2) (3), and two hex nuts (4) to install the strobe light (1) onto the overhead guard. (Fig. 2) 7.
  • Page 4 11. Connect the overhead guard light wire harness (9) to the main wire harness. (Fig. 2 / Fig. 4) 12. Route the overhead guard light wire harness (9) up to the strobe light (1) and connect the harness to the strobe light. (Fig. 2 / Fig. 4) 13.
  • Page 5 15. Remove the hardware holding the electrical 18. Install a 2.5- Amp circuit breaker (16) and a panel to the machine. Set the hardware aside. circuit breaker boot (17) into electrical panel (Fig. 5) CB13 location. (Fig, 7) FIG. 5 FIG.
  • Page 6 FIG. 9 IB 9007961 (08- 2015)
  • Page 7 Bill Of Materials For Light Kit, Strobe, OHG, CI [T16] - 9008135 Tennant Part No. Ref. Description Qty. 9008135 Light Kit, Strobe, OHG, CI [T16] 1017250 Light, Strobe, Amb, 12- 48VDC 9000845 Lamp, Bulb, Strobe 9000879 Lens, Amb, F/ Revl / Flasher 06933 Screw, Pan, Phl, M5 X 0.80 X 16, 4.8...
