KIT NO. 9014676- USA, 9014101- International
This kit includes the necessary parts to install IRIS telemetry technology on a standard T300 model.
INSTALLATION INSTRUCTIONS:
Installation Time: 1.5 Hours
Kit Installation Requirements:
- Tennant ServiceLink computer or a computer with Wi-Fi
connection to access the Tennant Service Application
Software, and USB cable (supplied with kit).
Computer System Requirements: Windows
Microsoft .NET Framework 4.5 or later, USB Port.
- The IRIS Telemetry Kit MUST be activated to complete
installation. After kit is installed CALL Technical Support to
activate as described on page 6.
Special Tools Required: T-25 torque screwdriver
PREPARE MACHINE FOR KIT INSTALL:
1. Drain the solution and recovery tanks.
2. Park the machine on a level surface and remove key.
3. Disconnect battery cables from battery pack. If model
is equipped with the red quick disconnect connector,
disconnect connector (Figure 1).
NOTE: If model is equipped with the optional battery
lift-out tray, the batteries and tray must be removed from
machine to allow space to replace the circuit board.
WARNING: Always disconnect battery cables
from machine before working on electrical
components.
4. Cut the three cable-ties that secure the vacuum hose,
drain hose, and battery cables to the heat- sink panel
(Figure 2).
Cable-Ties
9014180 Rev. 03 (01- 2017)
T300 IRIS Telemetry Kit
7 OS,
Models with battery
cable connectors
Fig. 1
Cable-Tie
Fig. 2
5. Remove the top two screws from the heat-sink panel
and carefully lower panel as shown (Figure 3). Place a
piece of cardboard over the battery terminals to prevent
contact with metal heat-sink panel.
FOR SAFETY: When servicing machine, keep all
metal objects off batteries.
6. Disconnect wire connections and remove circuit board
from the heat-sink panel (Figure 4). The circuit board
is mounted to panel with eight torque head screws
and five standoffs. Squeeze standoff flange to release
circuit board from panel.
Standoff
Tennant Company
Page 1 of 9
Fig. 3
Heat-sink
Panel
Fig. 4
www.tennantco.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the T300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T300

Summary of Contents for Tennant T300

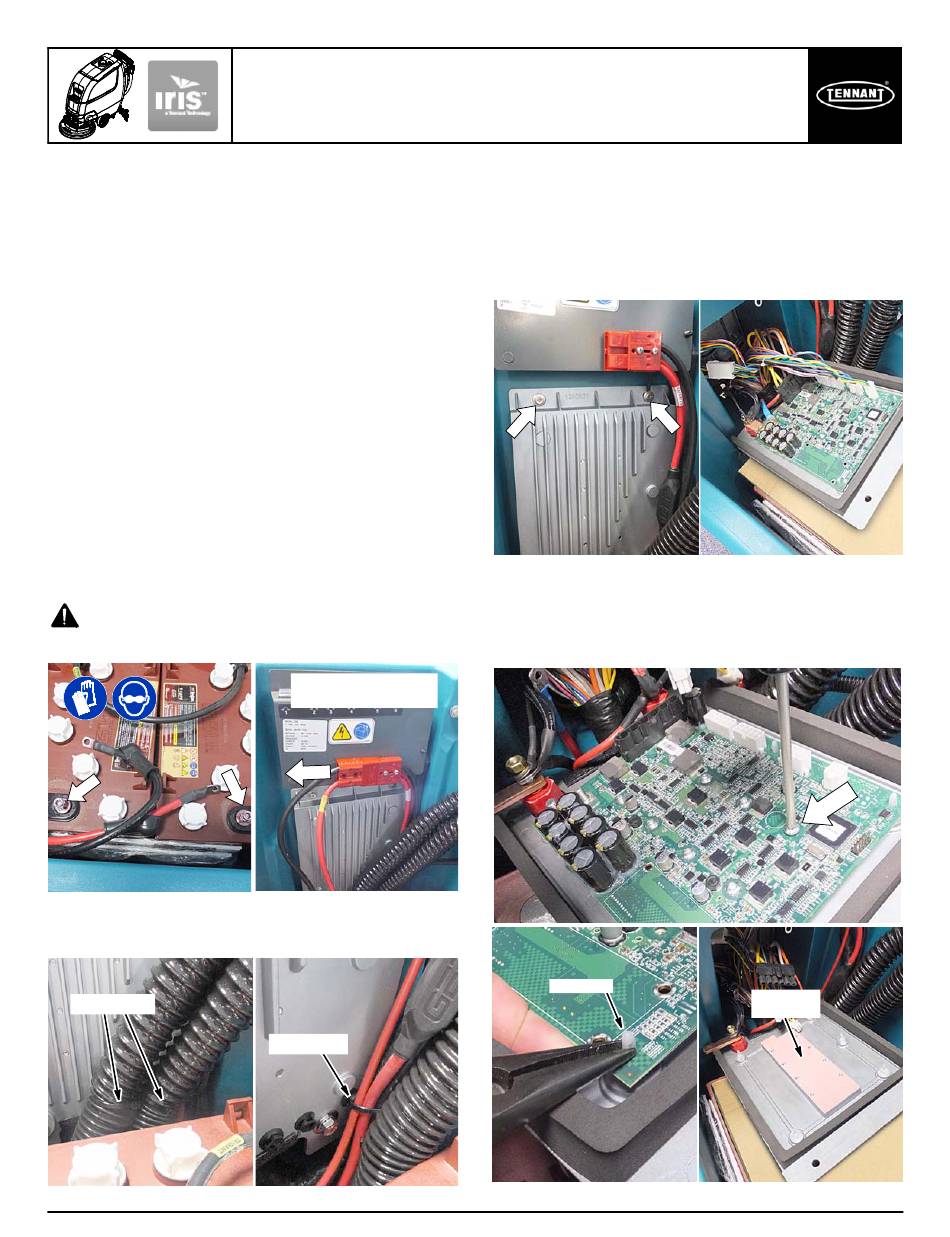

  • Page 1 Page 1 of 9 KIT NO. 9014676- USA, 9014101- International T300 IRIS Telemetry Kit This kit includes the necessary parts to install IRIS telemetry technology on a standard T300 model. INSTALLATION INSTRUCTIONS: 5. Remove the top two screws from the heat-sink panel and carefully lower panel as shown (Figure 3).
