Network interface module

Advertisement

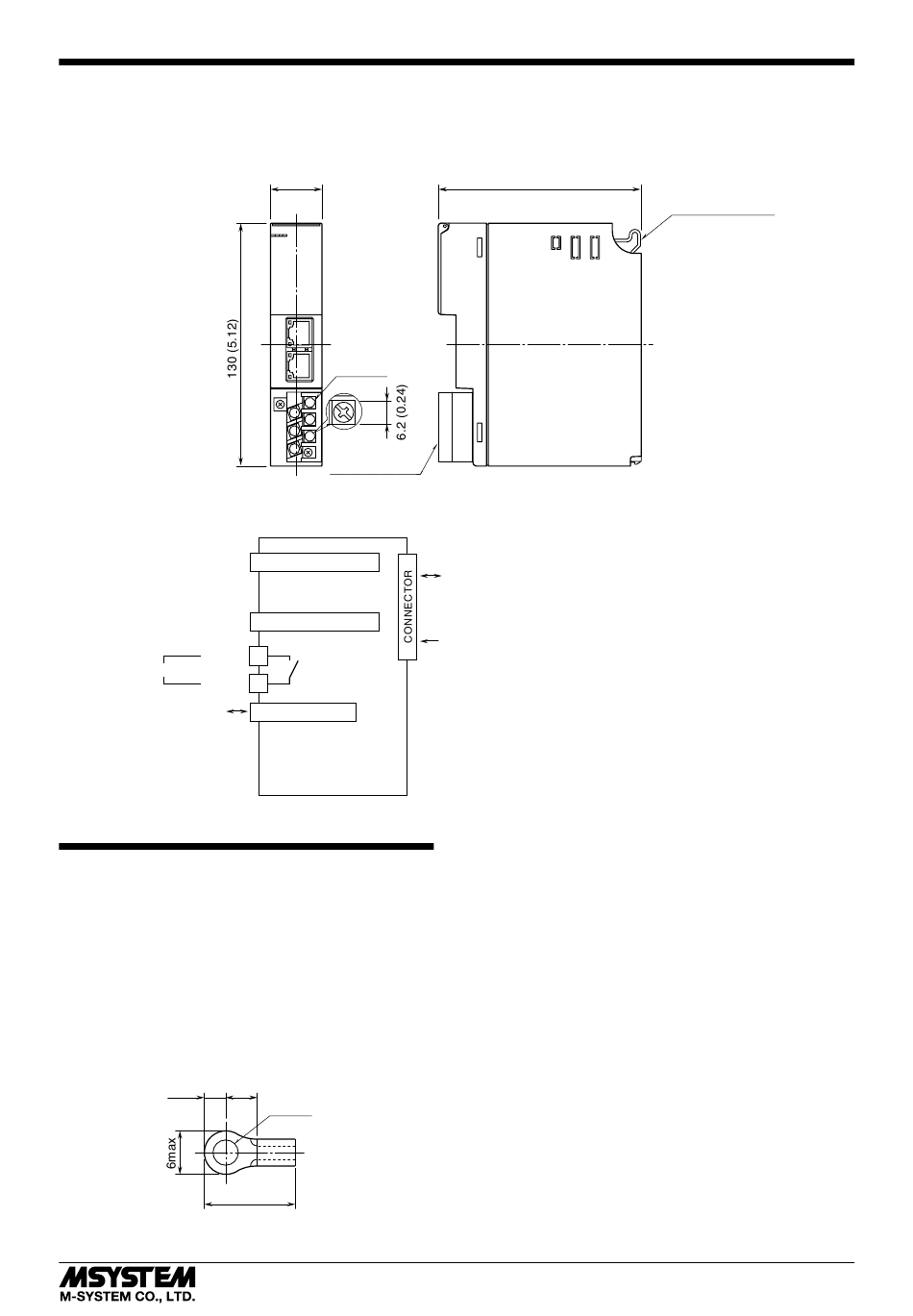

TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
■ EXTERNAL DIMENSIONS unit: mm (inch)
■ CONNECTION DIAGRAM
EtherCAT (IN)
EtherCAT (OUT)
RUN +
RUN CONTACT OUTPUT
RUN –
Configuration Connector
WIRING INSTRUCTIONS
■ M3 SCREW TERMINAL (RUN contact output)
Torque: 0.5 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable. Sol-
derless terminals with insulation sleeve do not fit.
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
Applicable wire size: 0.75 to 1.25 mm
3max
4min
12max
27.5 (1.08)
6-M3
SCREW
1
4
2
5
3
6
Terminal Cover
RJ-45 MODULAR JACK
RJ-45 MODULAR JACK
1
4
USB CONNECTOR
2
3.2 dia.
(mm)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
109 (4.29)
INTERNAL BUS
INTERNAL POWER
R3-NECT1
Positioning Guide
EM-8274 P. 4 / 18
