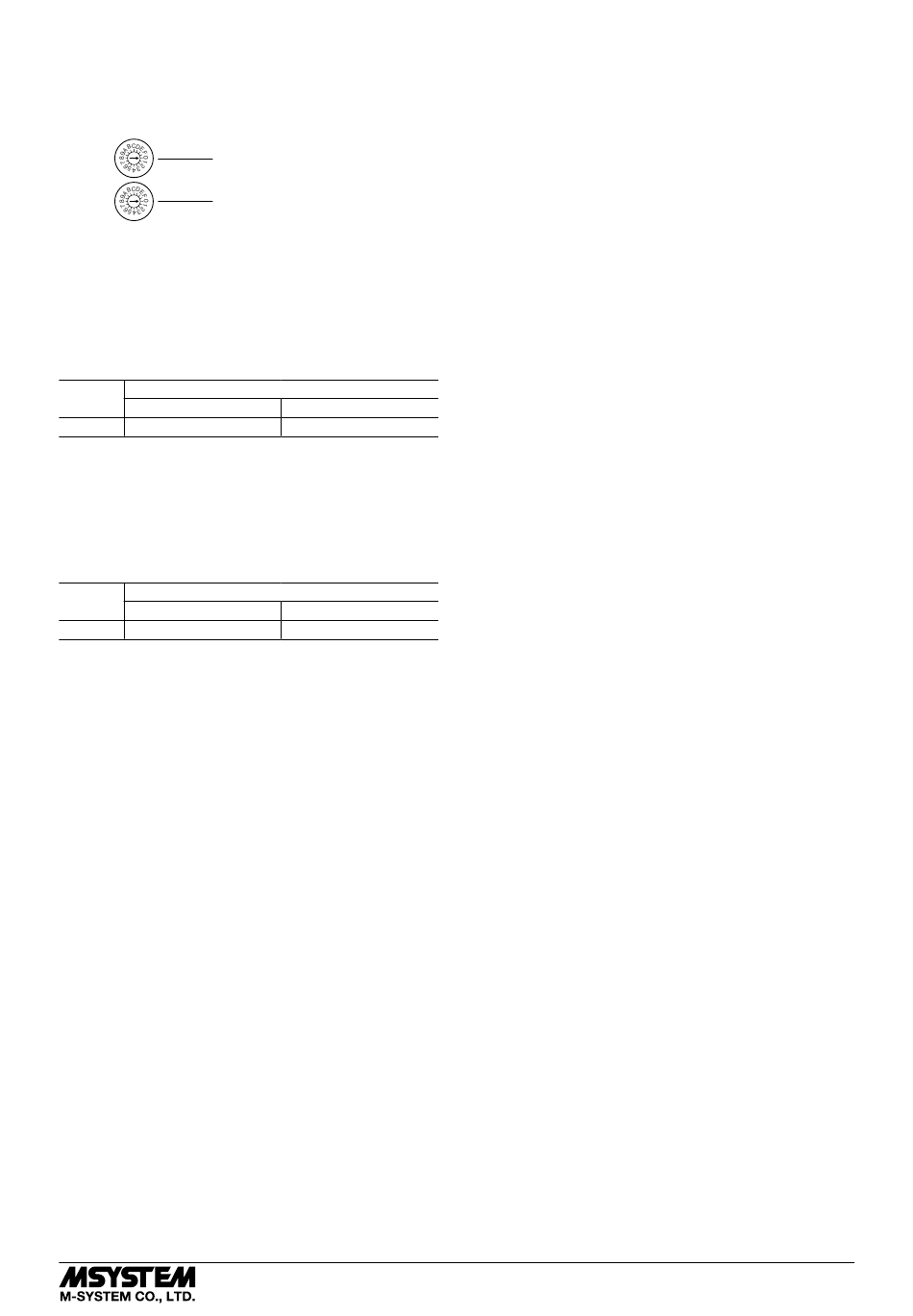

■ FIXED ADDRESS SETTING ROTARY SW
Fixed address 1 to 255 can be set using the two rotary
switches each marked 0 to F in combination.
When fixed address is not used, set the switches to 0.
Fixed Address Setting (x16)
Fixed Address Setting (x1)
■ DIP SW
(*) factory default setting
• Dual Communication: SW3-1
When two network modules are mounted, one must be
'Main' (OFF) network and the other must be 'Sub' (ON) net-
work. For single communication, the network module must
always be set to 'Main' (OFF).
DUAL COMMUNICATION
SW
MAIN (*)
SW3-1
OFF
• Input Error Data: SW3-2
Hold: When the communication from an input module is lost
due to the input module error, the network module holds the
signal and stands by until the communication recovers.
Set to '0': When the communication from an input module
is lost due to the input module error, the network module
outputs '0.'
INPUT ERROR DATA
SW
HOLD (*)
SW3-2
OFF
Note: Be sure to set unused SW3-3 and 3-4 to OFF.
SUB
ON
SET '0'
ON
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
R3-NECT1
EM-8274 P. 3 / 18
