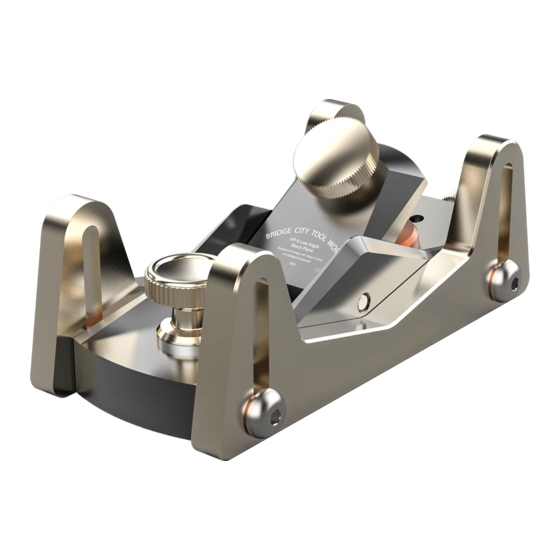

HP-8 Mini Block Plane
HP-8 迷你短刨
BRIDGE CITY TOOL WORKS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bridge City HP-8

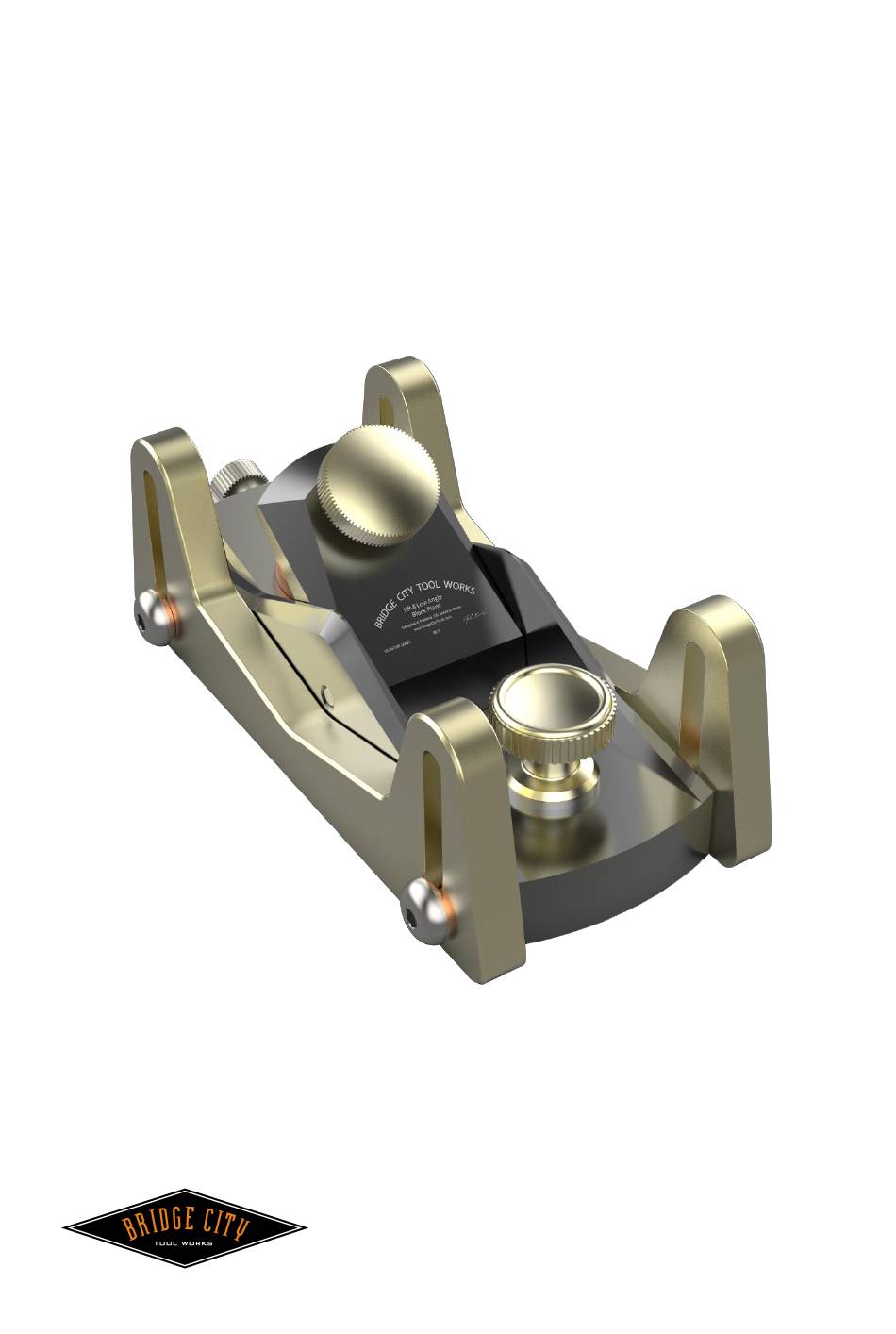

  • Page 1 HP-8 Mini Block Plane HP-8 迷你短刨 BRIDGE CITY TOOL WORKS...
  • Page 2 DEPTH SKIDS The HP-8 has a set of Depth Skids. These allow you to create accurate small pieces of wood that are the same thickness. The thickest piece of wood you could plane is 13/16" (about 21 mm).
  • Page 3 table surface, then tighten the lock screws. After planing the stock for several times and achieving the ideal surface, we recommend flipping the stock and planing again until there is no more cutting. Now, besides getting the 0.25’’ stock, you make the two surfaces of the stock smooth and clean.
  • Page 4 CARE AND CLEANING The beauty of aluminum is that it does not rust. The stainless steel parts need only to be wiped with rubbing alcohol to remove fingerprints. We strongly recommend that you coat the iron with a rust-inhibitor (i.e, WD-40TM or Boe-ShieldTM) prior to storage. And remember to clean the rust-inhibitor before using.
  • Page 6 HP-8 迷你短刨 恭喜您购买了 HP-8。在使用之前,请阅读以下使用说明。 刨刀 刨刀刃口主斜面为 25°,刃口切削角为 30°。为保证刨削质 量,建议您在使用一段时间后,对刨削刃口进行修磨。我们推荐 您只对 30°刨削刃口进行打磨(可使用 8000 目的砂纸或干净的 皮革),绝不建议您对刀背进行任何修磨,因为打磨刀背会降低 表面质量,从而影响刃口的锋利程度。 平刨导向板 HP-8 配有平刨导向板。利用平刨导向板可以进行定厚刨削 加工,最大定厚厚度为 13/16”(大约 21mm)。 调节平刨导向板可使用 4 只相同直径的的针规 (针规是机械 加工中常用的量具,其精度可达 0.01mm)来完成。 例如,需要加工出 6mm 厚度的木料,确定刨削厚度约 0.1mm,选出 4 只直径 6.10mm 的针规,放置在光滑平整的平 台上,2 只置于喉板下方,另 2 只放在刨底后方,贴近导向板,避 开刀具。松开锁紧平刨导向板的螺钉,调至两侧的平刨导向板底...
  • Page 7 调节刨削量 刨削量由调节旋钮控制,顺时针旋转调节旋钮增大刨削量, 反之减小。旋转一圈调节旋钮,刨削量变化 0.07mm。 调节方法:略微松开刨刀锁紧旋钮,旋转调节旋钮,将刨刀 刃口调至与刨子底平面平齐,根据刨削需求,旋转调节旋钮达到 所需的刨削量,锁紧刨刀压紧盖即可。如无经验,您可以逐步微 调调节旋钮,每次 1/2 圈,进行试刨,直到调节到您满意的刨削 量为止。理想情况下,刨刀将会伸出刨子底面极其小的距离,从 而达到干净和精确的刨削。 最后,这是一个精密短刨,不需要将刨刀压紧盖锁的过紧。 保养和清理 HP-8 迷你短刨的铝制刨身永不生锈。 不锈钢部件只需用酒精擦拭去掉指纹即可。 刀具建议在使用后涂抹防锈剂,使用前需清理掉防锈剂。 调节旋钮上的螺纹部位需在清理干净的前提下,定期涂抹油 脂,并旋转调节旋钮,使油脂均匀涂布在整个螺纹部位。...
  • Page 8 保修 所有退货、 换货、 技术服务和支持均由经销商的客户服务机构负责。 如果在原始购买日期后一年内发现工具存在工艺缺陷(客户无过 失),请与经销商客户服务机构取得联系,并由该服务机构决定是 否对工具进行修理或更换。 Bridge City Tool Works www.bridgecitytools.com...
