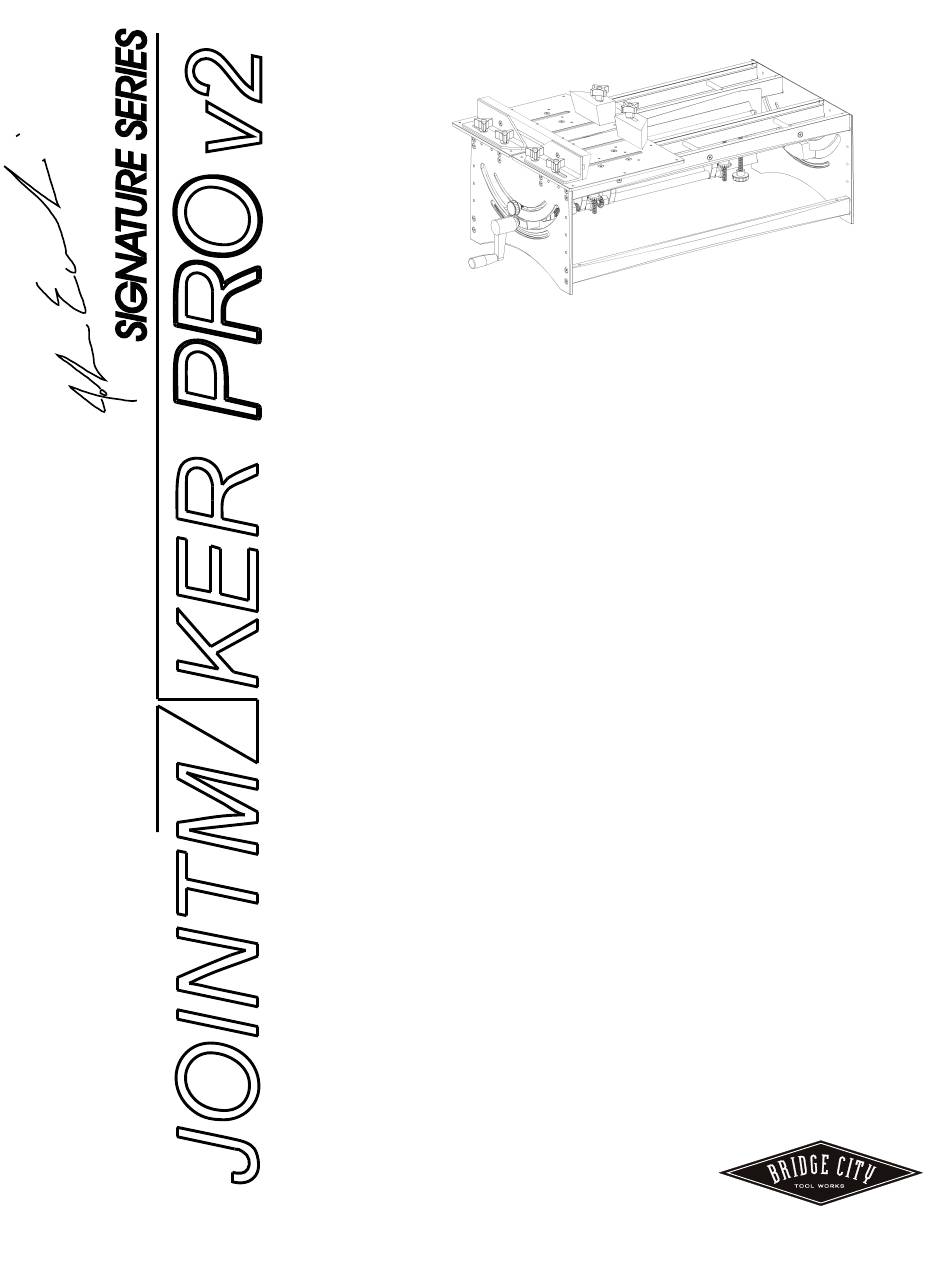

USER'S GUIDE
Important! Read First ......................................
Read First: Assembled Version Only ................
Front and Back Plates.......................................
Rear Shaft to Keel.........................................
Front Shaft to Keel............................................
Drive Shaft Burn-In............................................
Front Height Shaft to Spine...............................
Rear Height Screw to Keel................................
Saw Spine to Keel.............................................
Spine Guides to Keel.........................................
Pitch Adjustor Assembly....................................
Blade Retaining Screws....................................
Saw Blade Guides...........................................
Progress Check................................................
Transmission Check.........................................
Trunions...........................................................
Keel Assembly to Frame...................................
Assembly Detail................................................
Table Bumpers.................................................
Linear Rails......................................................
Tables...............................................................
Fence and Trap Clamps..................................
Saw Blade........................................................
Blade Alignment...............................................
Cursor and Flip Down Stops............................
Blade Height Stop............................................
Lubrication Guide.............................................
Optional Stand..................................................
Stand Corner Key.............................................
Cutting Guide..................................................
Notes...............................................................
Accessories.....................................................
1101-284-08 Rev. 2014v1
1
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
Made in the USA
www.BridgeCityTools.com
Patent No. 8,544,372
Advertisement
Table of Contents
Related Manuals for Bridge City Signature Series
Summary of Contents for Bridge City Signature Series
-
Page 1: Table Of Contents
1101-284-08 Rev. 2014v1 USER’S GUIDE Important! Read First ........Read First: Assembled Version Only ....Front and Back Plates........Rear Shaft to Keel......... Front Shaft to Keel..........Drive Shaft Burn-In..........Front Height Shaft to Spine....... Rear Height Screw to Keel........ Saw Spine to Keel.......... -
Page 2: Important! Read First
I M P O R T A N T : R E A D F I R S T ! SAFETY Thank you for your purchase of the Jointmaker Pro! Your Jointmaker Pro is no different than any other sharp tool— Your experience with this innovative new tool should be use common sense! nothing but positive. - Page 3 You will know when your blade is dull because of the resistance SAW BLADES & DEPTH OF CUT you sense with cutting or the quality of the cut is not smooth All of the saw blades currently designed for the Jointmaker Pro to the touch.
- Page 4 LUBRICATION We invite you to visit our website (www.bridgecitytools.com Please review the lubrication guide on page 19 for all the lubri- <http://www.bridgecitytools.com> ) to view videos of how we cut cation locations (this is done once or twice a year depending on different materials.
-
Page 5: Read First: Assembled Version Only
find a dedicated Jointmaker Pro Section. Here you will find frequently asked questions, tips and ideas, and fellow users (including our staff) who can help you with any questions. Thank you! Sincerely, John Economaki President/Woodworker Bridge City Tool Works john@bridgecitytools.com 1-800-253-3332... -
Page 6: Front And Back Plates
1. FRONT & BACK PLATES STEPS: 1. Fasten Lower Stretchers to Front and Rear Plates. Note: counter bored holes should face up. Rear Plate 2. When tightened, frame should sit flush on a flat surface. Counter Bore Front Plate w/ Protractor Counter Bore Note: In hardware Bag #1 there are 16 flat head screws. -
Page 7: Front Shaft To Keel
3. FRONT SHAFT TO KEEL 10-32 x 1" Flat Head Cap Screw x 4 STEPS: 1. Do not overtighten screws in acetyl bearing blocks. 2. When properly assembled all 5 gears should spin smoothly with no longitudinal movement in either shaft. If it’s tight Step 4 should remedy. -
Page 8: Front Height Shaft To Spine
5. FRONT HEIGHT SCREW TO SPINE STEPS: 1. Align holes of Height Screw and the Saw Spine 2. Insert Spring Pin flush with Spine 3. When properly assembled the Height Shaft should pivot and feel firm. Saw Spine Spring Pin Height Screw 6. -
Page 9: Saw Spine To Keel
7. SAW SPINE TO KEEL STEPS: 1. Thread Front Height Screw (LH threads) into Front Gear Bushing 2. Threaded end of Front Height Screw should protrude 3/4" (19mm) from bottom of gear. Rotate front shaft for Front Height Screw/Saw Spine Assy. precise setting. -
Page 10: Pitch Adjustor Assembly
9. PITCH ADJUSTOR ASSEMBLY STEPS: 1. Insert Shaft Collar into Saw Spine Slot 2. Insert Barrel Nut into the Barrel Nut Housing 3. Thread Pitch Adjustor into Barrel Nut and continue until shaft is fully inserted into Shaft Collar Barrel Nut Housing 4. -
Page 11: Saw Blade Guides
If there seems to be a binding point during the Champagne Step 13 Transmission Check, Saw Guide contact Bridge City Tool Works for custom shim washers. Washers x 4 Keel Front Spine Guide 12. PROGRESS CHECK 1. -
Page 12: Transmission Check
13. TRANSMISSION CHECK Open Bag #3 STEPS: 1. Place Keel Assembly in vise (do not damage keel edges). 2. Thread Crank onto Front Shaft. Use a 3/8” wrench to hold the front shaft while you tighten the crank to the shaft. 3. -
Page 13: Keel Assembly To Frame
15. KEEL ASSY. to FRAME STEPS: 1. Slide rear trunion to end of trunion track in the rear plate. 2. Insert back of Keel Assembly into the rear plate trunion track. 3. Move Keel Assy forward so front shaft protrudes through the front trunion and the keel rests on top of the trunion. -
Page 14: Linear Rails
17. TABLE BUMPERS STEPS: 1. Attach Table Bumpers as shown Note Bevel Locations 8 - 32 x 3/8" Phillips Head Screw x 4 Bumper x 4 Bearing Block x 4 18. LINEAR RAILS STEPS: 1. Set saw on a flat surface. 2. -
Page 15: Tables
19. TABLES 10 - 32 x 5/8" FH Cap Screws x 12 STEPS: 1. Attach Tables as shown 20. FENCE AND TRAP CLAMPS STEPS: 1. Assemble table components as shown. NOTE: The heads of each bolt slides in slotted recesses on the underside of the tables. 3 Wing Lock Knob x 4 4 Wing Lock Knob x 2 L. -
Page 16: Saw Blade
21. SAW BLADE STEPS: 1. Position both tables as illustrated below. 2. Loosen Light Grey Saw Guide. (The Black Guide is never adjusted--it is a reference surface.) 3. Insert Crosscut Blade and tighten 5 spine screws. 4. Pinch blade between fixed BLACK guide and the adj. LIGHT GREY GUIDE. -
Page 17: Cursor And Flip Down Stops
23. CURSOR/FLIP DOWN STOPS STEPS: HINT: If the fence feels "stuck" after loosening the locking screws, tap the Note: Remove blue film on both sides of cursor prior to installing screws (hex key inserted) to free dovetail nut. 1. Insert acrylic cursor into front traveler groove and secure with screw. -
Page 18: Lubrication Guide
25. CONGRATULATIONS! Your saw should sit perfectly flat. The blade should be dead parallel to table travel. Raising and lowering the blade should be smooth and easy. NOTE: Your Jointmaker Pro must be firmly anchored to a stand or work surface prior to use. 26. -
Page 19: Optional Stand
JOINTMAKER STAND STEPS: NOTE: For clarity, carraige bolts are not shown. Insert from outside and 1. Assemble Stand upside-down on bench. use washer under nut. 2. Follow the callouts below in numerical order. 3. When stand is completely assembled, invert and set on floor. 4. -
Page 20: Stand Corner Key
STAND CORNER KEY... -
Page 21: Cutting Guide
CUTTING GUIDE... -
Page 22: Notes
NOTES... -
Page 23: Accessories
JM-P ACCESSORIES Rip Blade blades 1101-201RB6 Finger Stops (4 pack) 1101-201-07 Rip Blade blades 1101-201RB3 (3 Pack) Cross Cut B 32 TPI blades 1101-201RB2 (3 Pack) Cross Cut B 32 TPI blades 1101-201RB5 Cross Cut A 28 TPI blades 1101-201RB4 Cross Cut A 28 TPI blades 1101-201RB1 (3 Pack) Trap Fence Indicator 1101-201-05... - Page 24 Should you require a return authorization, please contact us for packaging requirements. DO NOT DISSASSEMBLE your Jointmaker Pro without contacting Bridge City Tool Works for packaging instructions. For our full return/repair policy, please refer to our website.
