Models:

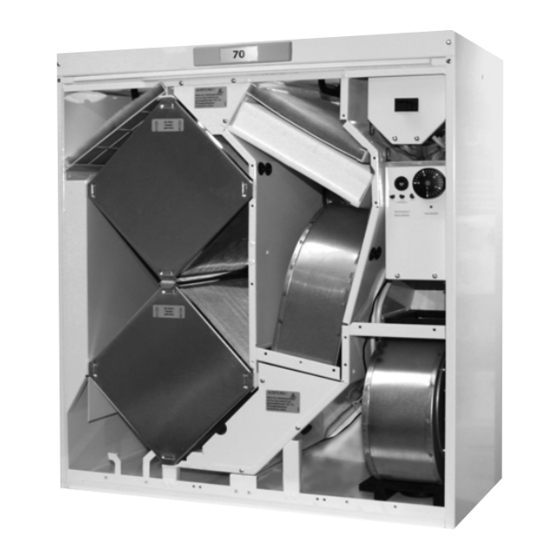

VALLOX 70 COMPACT R/L
VALLOX 70K COMPACT R/L
• For dwelling-specific ventilation for detached houses,
terraced houses and blocks of flats
• Supply and extract air ventilation with heat recovery
• Silent operation
• Good filtering
• Fireplace switch function (option).
• In-built heat recovery bypass for summer ventilation
• Control through a separate switch or cooker hood
• Service switch as standard
• Depth adjustment
• Fixed air flow measuring outlets

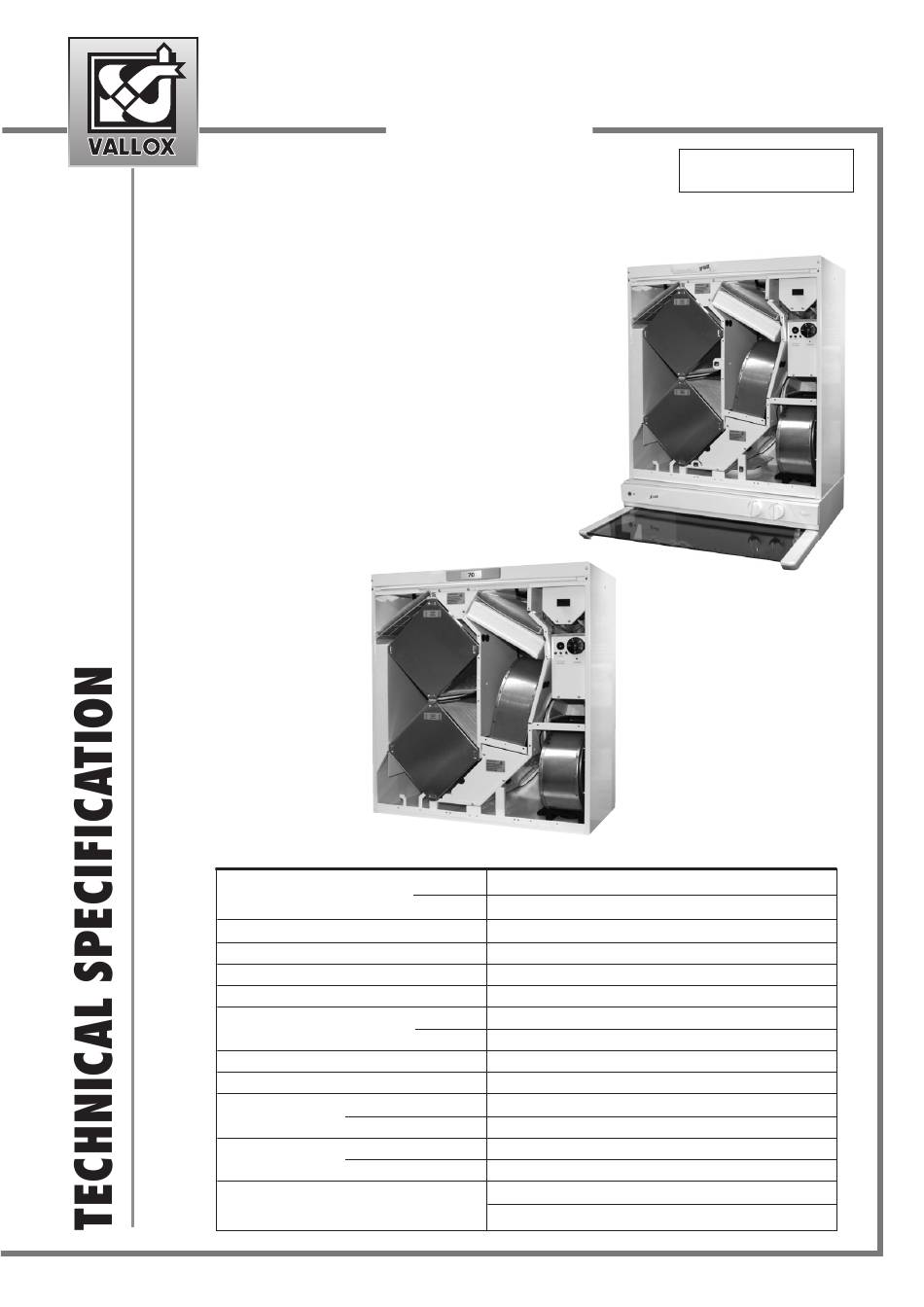

Technical specifications
Fans
VALLOX 70/70K COMPACT
Heat recovery
Heat recovery bypass
Post-heating
Preheating (option)
Filters
Weight
Service switch
Power adjustment
Input power and data
Options
© VALLOX • We reserve the right to make changes without prior notification.
What the units include can vary depending on the sales area.
Vallox
VALLOX 70
COMPACT R
Supply air
Extract air
Supply air
Extract air
VALLOX 70 COMPACT
VALLOX 70K COMPACT
VALLOX 70 COMPACT
VALLOX 70K COMPACT
70
Compact
VALLOX 70K
COMPACT R
105 W
56 dm
3
/s
105 W
65 dm
/s
3
2 x plate heat exchanger, efficiency approx. 75 %
Summer / winter damper
Electric, max. 900 W
Electric, max. 900 W
G4 + F 7
G4
40 kg
Door switch
4-step speed selector or cooker hood PTXP/I 130
Cooker hood
230 V, IP 34, 105 W
230 V, IP 30, 105 W
Fireplace switch function
Filter guard
70 Compact, code A3475
70K Compact, code A3476
50 Pa
50 Pa
• 1.09.354E
• 3.10.2012
© VALLOX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70 COMPACT R/L and is the answer not in the manual?

Questions and answers

Related Manuals for Vallox 70 COMPACT R/L

Summary of Contents for Vallox 70 COMPACT R/L

  • Page 1 VALLOX 70 COMPACT 230 V, IP 30, 105 W VALLOX 70K COMPACT Fireplace switch function Options Filter guard © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
  • Page 2 (supply air) side and suction (extract air) side of the fan. In model L, dimensions as a mirror image. © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
  • Page 3 32/33 39/41 43/47 52/59 , dB(A) *) In VALLOX 70K Compact, flap closed. (1.2/110V calculatory values) © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.

  • Page 4: Speed Selector

    Summer use The heat recovery cell is bypassed in VALLOX 70 COMPACT with an in-built damper. In the summer position air flow through the cell is prevented, and heat recovery bypass is activated.
  • Page 5 PRE- AND POST-HEATING Post-heating radiator The post-heating radiator of the VALLOX 70 COMPACT unit is a PTC resistor, which aims at heating the air blown to the rooms to preset temperature. The temperature of supply air is adjusted at the thermostat regulator located inside the unit. The post-heating radiator is a PTC resistor, the laminas of which are live when the unit is in operation.

  • Page 6: Control Diagram

    VALLOX 70 COMPACT CONTROL DIAGRAM © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.

  • Page 7: Description Of Operation

    © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.

  • Page 8: Internal Electrical Connections

    For instance a 15-minute timer with opening points. Post-heating radiator Mounted to replace wire Preheating radiator © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
  • Page 9 3 x 1.5 S 4 x 1.5 S OPERATING STATUS DATA CONTROL CENTRE 1993A YK 8095703A © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
  • Page 10 VALLOX 70K Hood VALLOX 70K COMPACT For instance a 15-minute timer with opening points. Mounted to replace wire © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.

  • Page 11: Installation

    Lower edge of covering door © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
  • Page 12 Vallox Oy • Myllykyläntie 9-11 • FIN-32200 Loimaa Finland Telephone +358 10 7732 200 • www.vallox.com. © VALLOX • We reserve the right to make changes without prior notification. What the units include can vary depending on the sales area.
