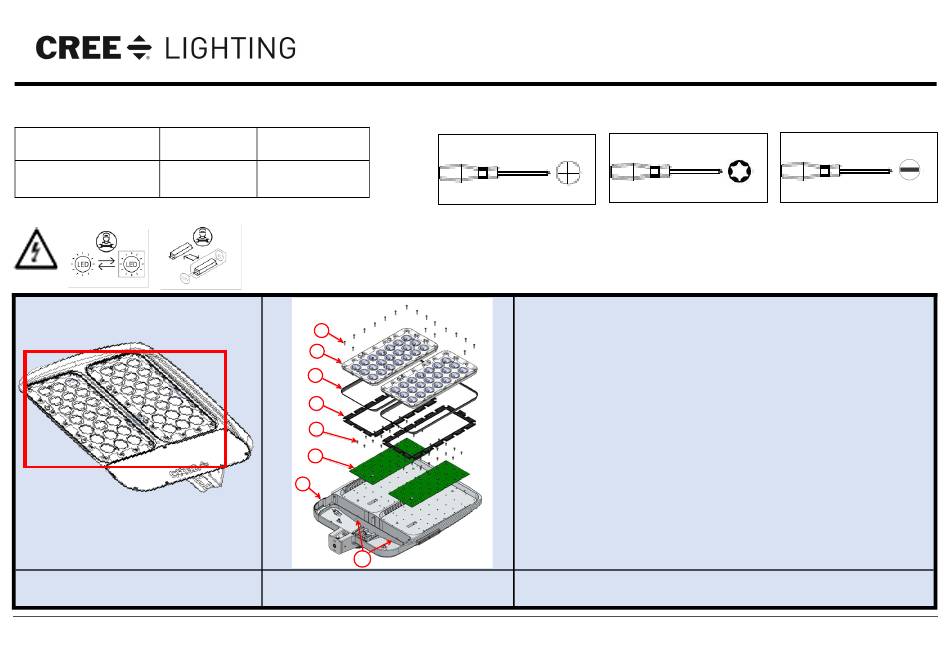

CREE LIGHTING OSQ Series Disassembly Instructions

Advertisement

Models :
OSQ e OSQ High Output
Light Sources
codes
LEA###
OSQ-###
OSQ-HO-###
Disassembly Instructions
Light Source (LS)
For End User (EU)
For Control Authority (CA)
N° DOC: DI119RLER0
Rev: 01
Power supply
codes
LEM###
PH##
Warning: Before opening the appliance, remove voltage from the mains line
7
6
5
4
3
2
1
8
Tools:
LS-EU
1.Follow points "a":"b" of the instructions in the paragraph PS-EU
2.Unscrew screws 7, then remove optics 6 and gaskets 5 and 4
3.Unscrew the screws 3
4.Remove damaged LED bars 2
5.Replace damaged LED bars and, if necessary, wire replacement LED
bars such as damaged ones
6.Follow point "i" of paragraph PS-EU
7.Reapply the insulating paste on the holes 8
8.Assemble the new LED bars on housing 1 using screws 3 at a torque of
2.7 Nm
9.Reapply gaskets 4 and 5 in order
10.Reapply 6 lenses using 7 screws to a torque of 3 Nm
LS-CA
Follow points 1 -2- 3- 4 of the instructions in the paragraph LS-EU
OSQ Series
Area OSQ
Includes: Fixtures OSQ-HO and OSQ
DISASSEMBLY INSTRUCTIONS
Latest release date: 18/11/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSQ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CREE LIGHTING OSQ Series

  • Page 1 OSQ Series Area OSQ Includes: Fixtures OSQ-HO and OSQ DISASSEMBLY INSTRUCTIONS Models : Tools: OSQ e OSQ High Output Light Sources Power supply codes codes LEA### OSQ-### LEM### OSQ-HO-### PH## Warning: Before opening the appliance, remove voltage from the mains line...
  • Page 2 Disassembly Instructions PS-EU a.Access the wiring compartment by Power Supply (PS) unscrewing the two 10 screws on door 9 of For End User (EU) the appliance b.Disconnect the red and black cables of the LED bars from the connectors 14 c.Unplug connector 11 d.Unscrew the screws 12 of the metal plate 13 e.Remove the drivers below plate 13...
  • Page 3 For more information on available collection facilities, contact your local waste collection service or the shop where you bought this ap- pliance. © 2021 Cree Lighting, A company of IDEAL INDUSTRIES. All rights reserved. For informational purposes only. Content is subject to change. See www.creelighting.com/warranty for warranty and specifications. Cree® and the Cree logo are registered trademarks of Cree, Inc.
