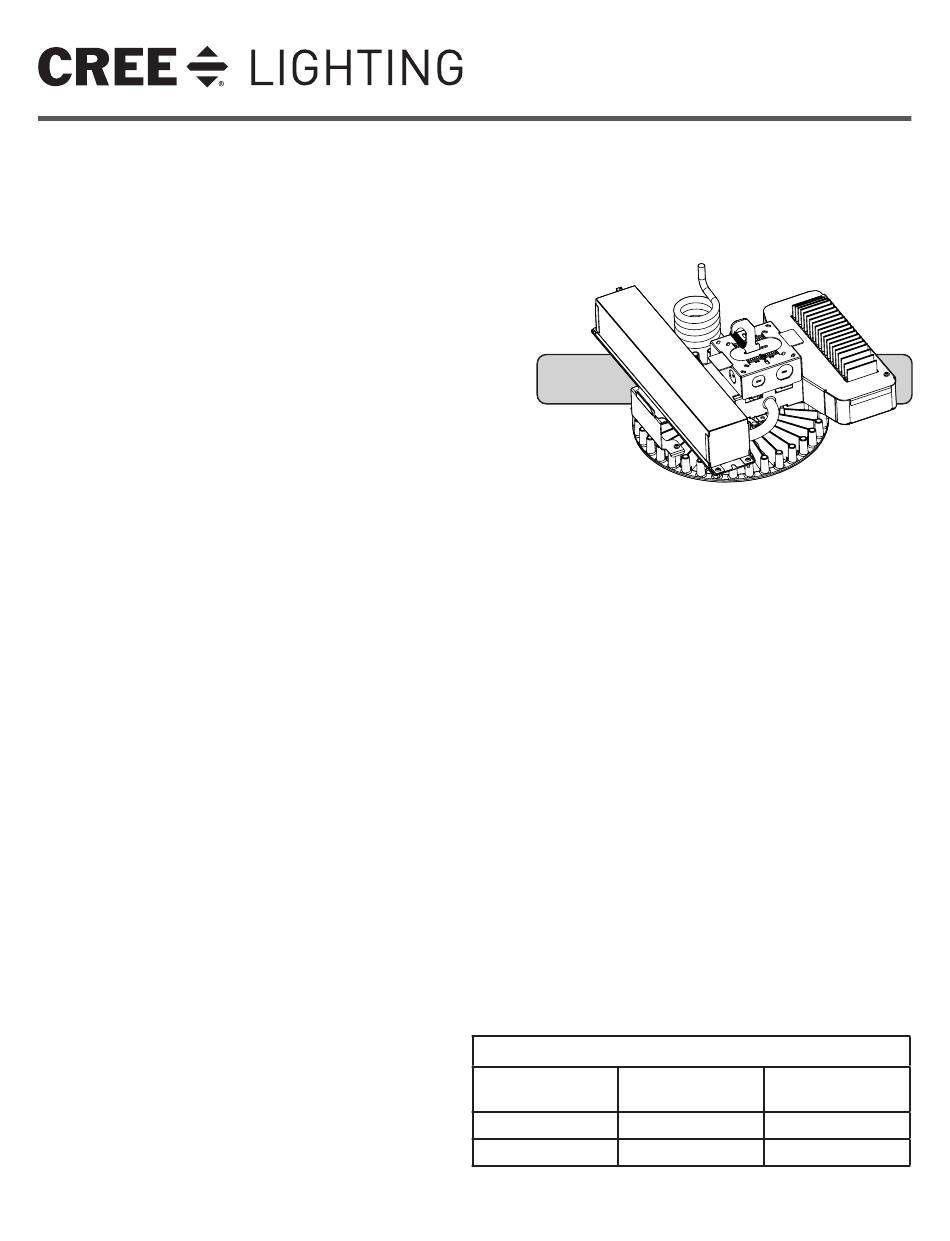

CREE LIGHTING KBL Series Installation Instructions

Highbay led luminaire with emergency driver, universal hook and cord or pendant mount
Hide thumbs Also See for KBL Series:
1
2
3
4
5

Advertisement

Table of Contents

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before
installation.
DANGER - RISQUE DE CHOC - COUPER
L'ALIMENTATION AVANT L'INSTALLATION
2.
This luminaire must be installed in accordance with the NEC
or your local electrical code. If you are not familiar with these
codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3.
To reduce the risk of electric shock, disconnect both standard
and emergency power supplies and converter connector of
the emergency driver before servicing.
Pour réduire le risque de décharge électrique, vous devez
déconnecter à la fois le disjoncteur divisionnaire ou les
fusibles et les alimentations d'urgence avant l'entretien.
4.
Do not use outdoors.
Ne pas utiliser à l'extérieur.
5.
Do not let power supply cords touch hot surfaces.
Ne laissez pas les cordons d'alimentation toucher les surfaces chaudes.
6.
Do not mount near gas or electric heaters.
Ne montez PAS près des appareils de chauffage de gaz ou électriques.
7.
Equipment should be mounted in locations and heights where it will not readily be subjected to tampering by unauthorized
personnel.
L'équipement doit être monté dans des endroits et à des hauteurs où il ne sera pas soumis à des altérations par des personnes
non autorisées.
8.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
L'utilisation d'accessoires non recommandés par le fabricant peut causer une situation dangereuse.
9.
Suitable for damp location.
Convient aux emplacements humides.
10. Maximum ambient operating temperature: 9L, 12L, and 18L(M) = 50°C and 24L, 25L (H), and 30L= 40°C.
Température ambiante maximale de fonctionnement: 9L, 12L, and 18L (M) = 50°C and 24L, 25L(H), and 30L= 40°C.
11. MIN 90°C SUPPLY CONDUCTORS
LES FILS D'ALIMENTATION 90°C MIN.
12. Check to make sure that all input power connections have been properly made and the module is grounded to avoid potential
electrical shock.
13. DO NOT lift luminaire by the cord.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
NOTES:
•
For each mounting application below, when mounting to
surface ensure that the mounting surface and customer
supplied hardware is capable of supporting the weight
of the luminaire.
•
The center of mounting is NOT the same as the center
of luminaire.
1 of 5
Highbay LED Luminaire with Emergency Driver
Universal Hook and Cord or Pendant Mount
Maximum Mounting Height in Feet
Lumen output
With prismatic diffuser
9L-12L
30
18L-30L
44
KBL Series
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
With prismatic diffuser
and conic lens
23
33
LPN00627X0001A1_D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBL Series and is the answer not in the manual?

Questions and answers

Related Manuals for CREE LIGHTING KBL Series

Summary of Contents for CREE LIGHTING KBL Series

  • Page 1 KBL Series Highbay LED Luminaire with Emergency Driver Universal Hook and Cord or Pendant Mount INSTALLATION INSTRUCTIONS IMPORTANT SAFEGUARDS INSTRUCTIONS D’INSTALLATION When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY...

  • Page 2: Pendant Mount

    TO INSTALL: HOOK AND CORD MOUNT STEP 1: Push down on retainer spring until top of spring is free of luminaire hook. See Figure 1. Luminaire Hook STEP 2: Slide hook into securely mounted customer supplied eye Retainer Spring hanger and return retainer spring to original position. NOTE: The luminaire should already be factory set for correct balance.

  • Page 3: Reflector Installation

    REFLECTOR INSTALLATION Add 2 Screws For Aluminum Reflectors TOOL LESS REFLECTOR: STEP 1: Place the reflector over the luminaire mounting tabs so that the big reflector keyhole slots align Luminaire with the tabs. See Figure 4. Mounting NOTE: For aluminum reflectors, insert Tabs two screws, provided with the reflector, for retention as shown in Figure 4.

  • Page 4: Federal Communication Commission Interference Statement

    INSTALLING SAFETY CABLE NOTE: Safety Cable is sold separately as an accessory, please refer to installation sheet in safety cable packaging for complete installing instructions. STEP 1: Attach one end of the safety cable through the fin of the heatsink. See Figure 8. STEP 2: Attach other end of the safety cable to mounting surfaces Heatsink...

  • Page 5: Electrical Connections

    Locate the two white leads with connectors located inside the luminaire junction box and connect them.. © 2019 Cree Lighting, A company of IDEAL INDUSTRIES. All rights reserved. For informational purposes only. Content is subject to change. See www.creelighting.com/warranty for warranty and specifications. Cree and the Cree logo are ®...
