CREE LIGHTING VG Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including
the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before installation or
servicing.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local electrical code.
If you are not familiar with these codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local. Si vous
n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un électricien
qualifié.
3. DO NOT lift luminaire by the power leads.
4. DO NOT carry or lift luminaire by wireform. Wireform is only for supporting luminaire while
making wiring connections.
SAVE THESE INSTRUCTIONS FOR FUTURE

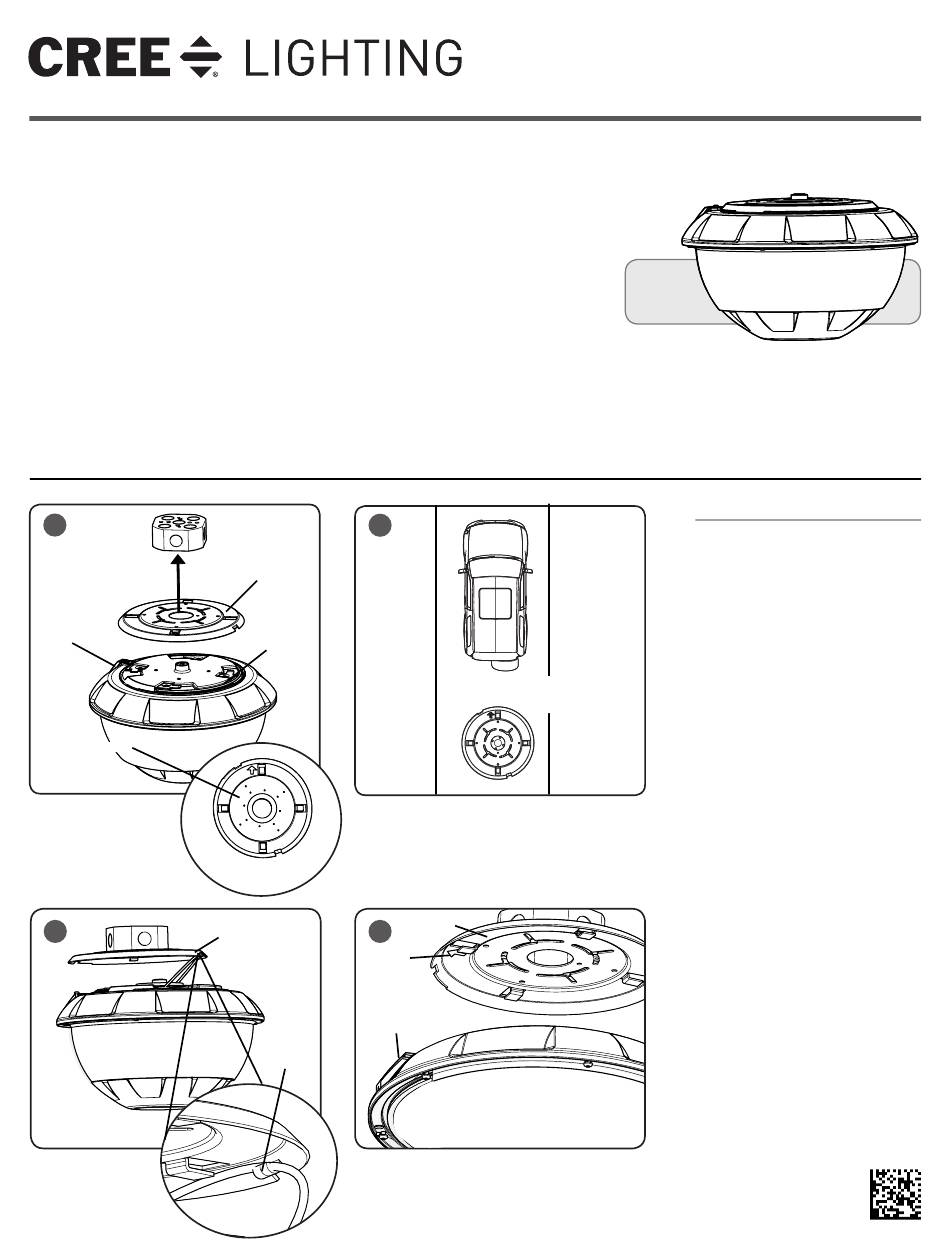

TO INSTALL:
1
Latch
3/16" Thick Gasket
3
Mounting Plate
1 of 2
REFERENCE
2
Mounting Plate
Wireform
Underside View of
Mounting Plate
4
Arrow
Latch
Mounting
Plate Hook
Arrow On Mounting Plate
Pointing Parrallel To
Traffic
Mounting Plate
VG Series
LED Parking Luminaire
Junction Box Mount (JB)
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
LUMINAIRE INSTALLATION
STEP 1:
Using customer supplied hardware,
attach mounting plate to customer
supplied junction box with the arrow
on the underside of the Mounting
Plate directed parallel to vehicle
traffic. See Figure 1 and 2.
STEP 2:
Peel back and remove adhesive
backing on 3/16" thick gasket,
provided in hardware bag, and attach
it centered to underside of Mounting
Plate covering all slots and screw
heads. See Figure 1.
STEP 3:
For hands-free wiring locate the
wireform on luminaire and remove
tape. Attach it to the hook on the
Mounting Plate. See Figure 3.
STEP 4:
Make wiring connections per
"Electrical Connections" section.
STEP 5:
After wiring connections have been
made no need to remove wireform
from hook. DO NOT let the luminaire
hang by the power leads.
STEP 6:
Bring luminaire up to Mounting Plate,
rotate luminaire until the arrow on the
inside of the Mounting Plate points to
the recessed area nearest to the latch
on the luminaire. See Figure 4.
LPN00100X0001A0_B
