CREE LIGHTING Energy Series Disassembly Instructions

Models :
Energy Uno – Due – Tre Light Source
codes
LEA###
TRS-###
TRM-###
TRL-###
Disassembly Instructions

Light Source (LS)

For End User (EU)
For Control Authority (CA)
N° DOC: DI133RLER0 Rev: 00
Power Supply
codes
TRI###
Warnings: Before opening the device, disconnect the power from the mains
Tools:
LS-EU

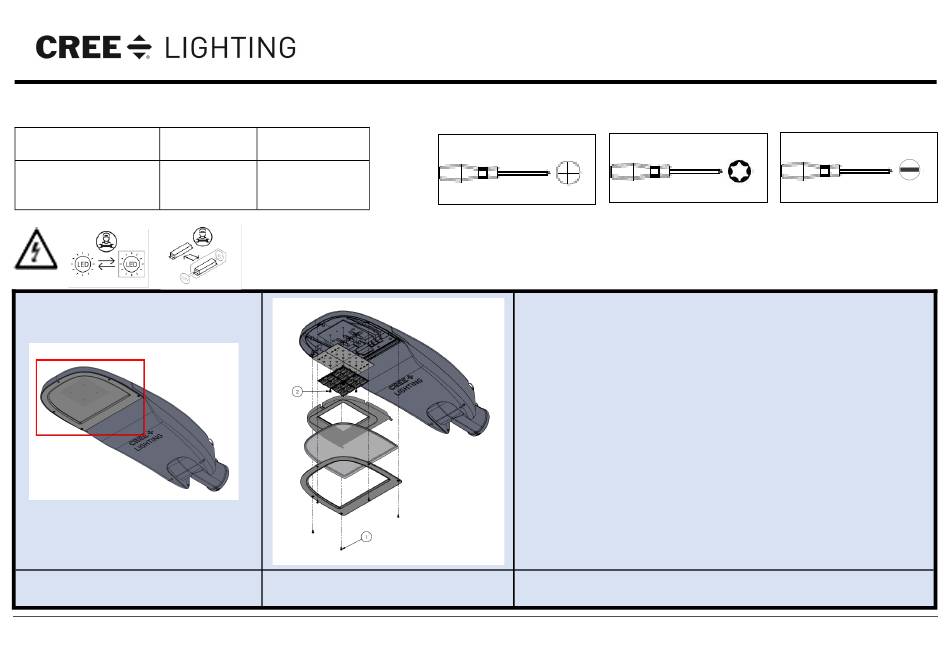

1.Unscrew the screws 1, then remove the frame, the glass and the reflec-
tor
2.Follow points "A- B - C" of PS-CA paragraph
3.Unscrew the optics' screws 2
4.Remove optics and lightbars
5.Replace the damaged lightbars and assemble with relative optics using
screws 2 at a torque of 0.5 Nm
6.Reconnect the lightbars' power cables
7.Follow points "i - j" of PS-CA paragraph
8.Replace the diffuser and the glass, making sure not to press or damage
the cables
9.Reposition the frame and fix it with the appropriate screws 1 at a torque
of 1.2 Nm
LS-CA
Follow points "1 -2- 3- 4" of LS-EU paragraph
Energy Series
Includes: Energy Uno, Energy Due and Energy Tre Luminaires
DISASSEMBLY INSTRUCTIONS
Latest Release Date: 04/03/2021
Street Lights
