CREE LIGHTING KBL Series Installation Instructions Manual

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. This luminaire must be installed in accordance with the NEC or
your local electrical code. If you are not familiar with these codes
and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3. Suitable for damp location.
Convient aux emplacements humides.
4. Maximum ambient operating temperature: 9L, 12L, 18L (M) =
50°C and 24L (H), and 30L= 40°C.
Température ambiante maximale de fonctionnement:
9L, 12L, 18L (M) = 50°C et 24L (H), et 30L= 40°C.
5. MIN 90°C SUPPLY CONDUCTORS
LES FILS D'ALIMENTATION 90°C MIN.
6. Check to make sure that all input power connections have been
properly made and the module is grounded to avoid potential
electrical shock.
7. DO NOT lift luminaire by the power cord or any of the cables
connected to the LED heatsink and LED driver.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
NOTES:
• Images used in this installation sheet are for illustration purpose,
there are different configurations of the luminaire.
• For each mounting application below, when mounting to surface
ensure that the mounting surface and customer supplied
hardware is capable of supporting the weight of the luminaire.
• The center of mounting is NOT the same as the center of
luminaire.
TO INSTALL:

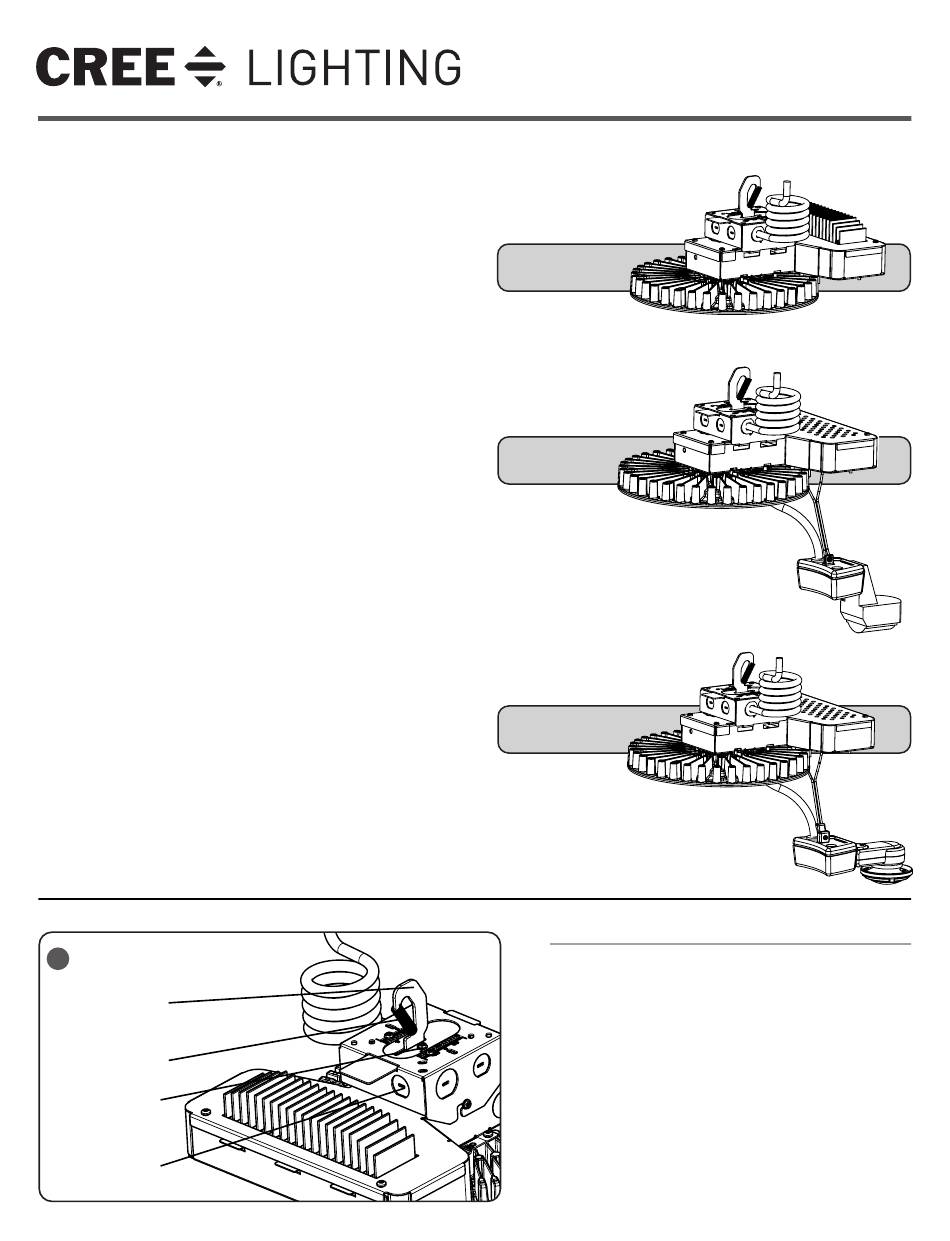

1
Luminaire Hook
Retainer Spring
Hook Adjustment Screws
1/2" (13mm) IP, 0.875"
(22mm) O.D. Knockout
1 of 6
Universal Hook and Cord or Pendant Mount
KBL
KBL WITH ML
SENSOR
KBL WITH PML
SENSOR
HOOK AND CORD MOUNT
STEP 1:
Push down on retainer spring until top of spring is free of
luminaire hook. See Figure 1.
STEP 2:
Slide hook into securely mounted customer supplied eye
hanger and return retainer spring to original position.
NOTE: The luminaire should already be factory set for correct
balance. If necessary, the fixture may be balanced by loosening
the hook adjustment screws on the top of the housing and
sliding the hook as necessary for correct balance. Tighten hook
adjustment screws when finished. See Figure 1.
STEP 3:
Make wiring connections per the Electrical Connections
section. After electrical connections for luminaires with a
sensor go to pages 4-6 for installation of sensor.
KBL Series
LED Luminaire
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
LPN00513X0001A4_D
