CREE LIGHTING IG Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local electrical
code.
If you are not familiar with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local.
Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un
électricien qualifié.
3. USE MIN. 90°C SUPPLY CONDUCTORS for 120-277V luminaires and USE MIN
75°C SUPPLY CONDUCTORS for the 347V luminaires.
LES FILS D'ALIMENTATION 90°C MIN pour 120-277V et LES FILS
D'ALIMENTATION 75°C MIN pour 347V .
4. DO NOT lift luminaire by the power leads.
5. DO NOT carry or lift luminaire by Splice Inspection Tether or wireform. Splice
Inspection Tether and wireform are only for supporting luminaire while making
wiring connections.
SAVE THESE INSTRUCTIONS FOR FUTURE

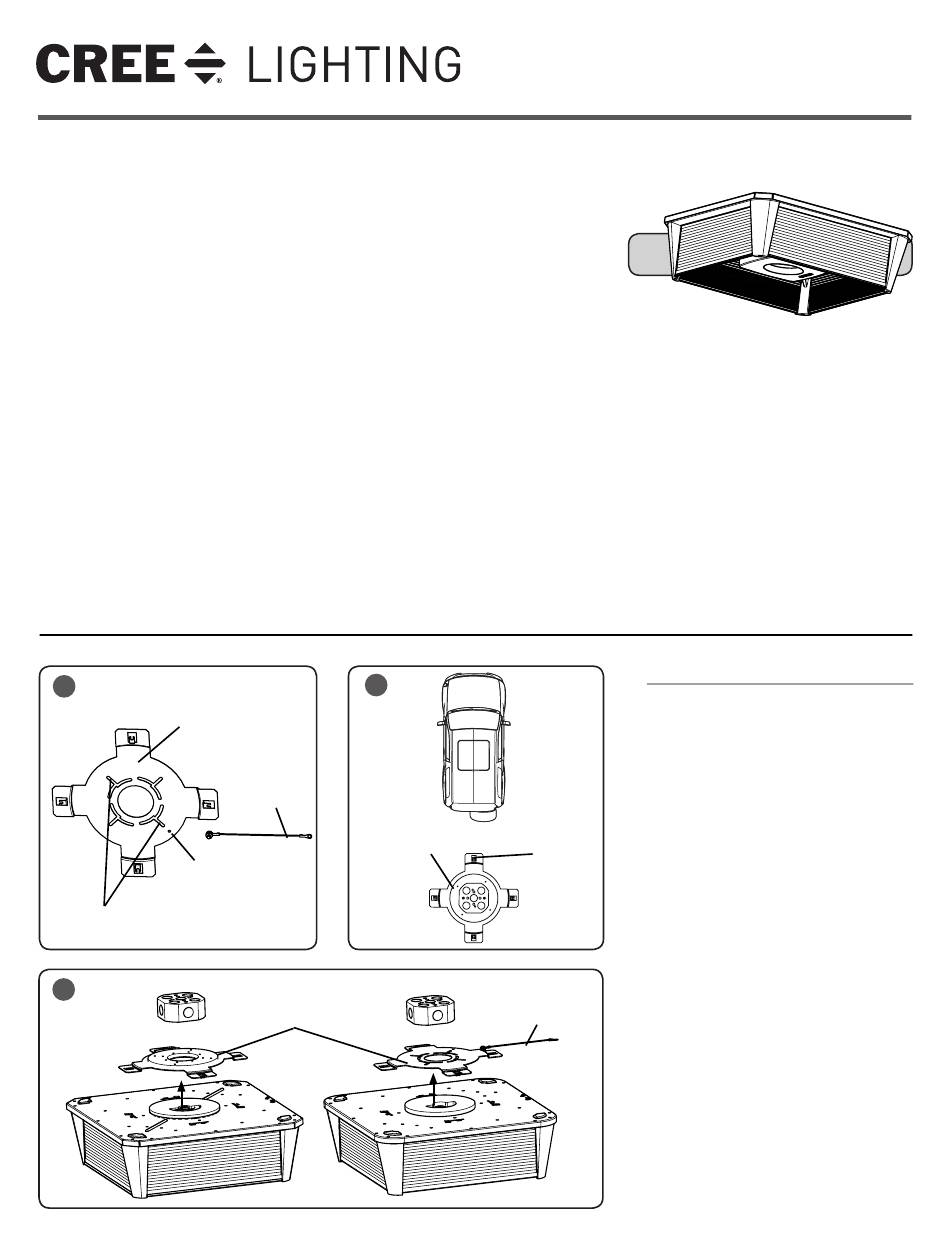

TO INSTALL:
1
Mounting Plate
Splice Inspection Tether
Screw Hole
Use these 2 slots for
mounting to junction box.
3
1 of 4
INSTRUCTIONS
REFERENCE
2
Splice Inspection
Tether
Mounting Plate
Mounting Plate
Wireless LED Parking Luminaire
INSTRUCTIONS D'INSTALLATION
NOTE:
• During installation and maintenance handle
the luminaire only by the housing NOT by the
lens.
JUNCTION BOX MOUNTING
NOTE: "J" Input Power Designator comes with
Splice Inspection Tether only. "A" Input Power
Designator comes with a Splice Inspection
Tether or wireform.
STEP 1:
WITH SPLICE INSPECTION TETHER
Locate the Splice Inspection Tether on
the luminaire and attach the cable to the
designated screw hole on the mounting plate
Mounting
using the provided screws. See Figure 1.
Plate Tab
STEP 2:
WITH SPLICE INSPECTION TETHER
NOTE: Ensure to install mounting plate to
junction box using the two screws slots on the
mounting plate that are diagonal to the Splice
Inspection Tether. See Figure 1.
NOTE: Two people may be needed for
installing to junction box, one to hold the
Splice Inspection
luminaire and another to install the mounting
Tether
plate to the junction box.
Attach mounting plate to customer supplied
junction box with the tabs on the Mounting
Plate directed parallel to vehicle traffic as
shown in Figure 2. Torque to 20 in-lbs. See
Figure 2 and 3.
STEP 3:
Make wiring connections per "Electrical
Connections" section.
IG Series
Junction Box and Pendant Mount
INSTALLATION INSTRUCTIONS
