Novoferm NovoFold Installation Manual page 10

Lateral motor configuration
EN

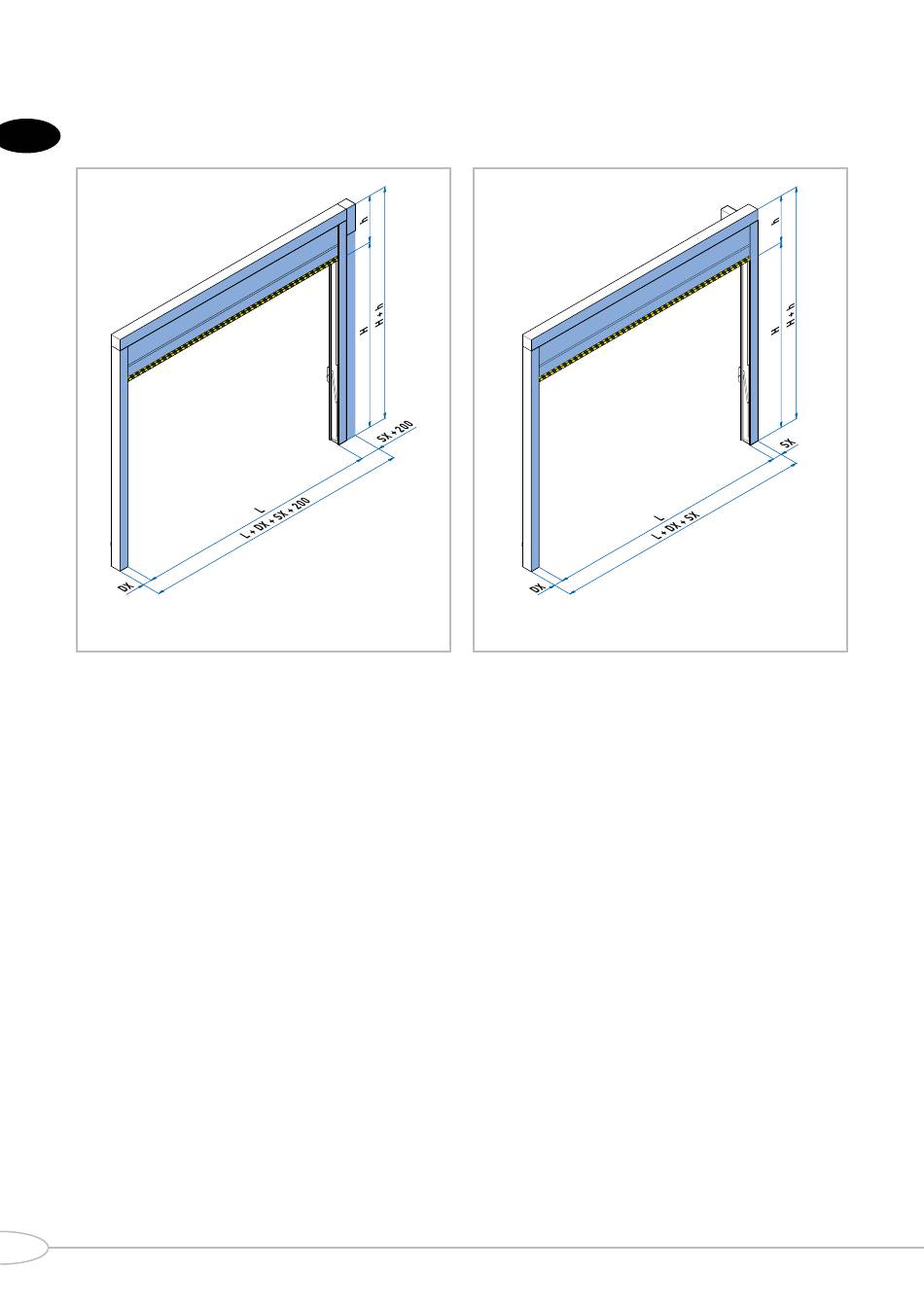

Figure 3.a - Required right-left lateral
space and lintel of the opening.
• Make sure that the floor on which the pre-assembly is to be carried out is smooth and has the right dimensions
for the door to be placed horizontally. Check that the floor where the door is to be assembled is level.
• Check whether the building materials of the opening in which the door is to be installed are concrete/brick or
metal. This information will determine the system for fixing the door to the hole. In both cases, metal brackets
are supplied that are screwed/welded to the drawer, and in turn, screwed/welded to the wall.
• In case of doubt or contradictory data, please contact Novoferm.
• Avoid installing the door in places where its use and duration are incompatible with the materials used to
manufacture it. (e.g. Strongly corrosive environment). If in doubt, please contact Novoferm.
• The installation of the door while children are present, or in any case while in the presence of persons not
related to the assembly work, is forbidden. We recommend that the assembly be carried out by qualified
installers.
Before connecting the motor, check that:
• The data on the motor plate is compatible with the mains data.
• The product is connected to an efficient earthing system.
• A differential switch has been installed on the panel that controls the motor.
• Apply the signs provided for by current regulations to identify hazardous areas.
• Before connecting the power supply, check that the installed power is greater than that required by the
automated system.
• Carry out the earthing according to the safety regulations in force.
• The installer must inform the user about the automatic and manual emergency operation of the door and
give him/her the instructions for use.
• The manufacturer cannot be held responsible for any damage caused as a result of failure to comply with
these rules.
8
This installation manual must be handed to the customer and must be kept in a safe place throughout the whole period of use!
Front motor configuration
Figure 3.b - Required right-left lateral
space and lintel of the opening.
