OTS EC1111-X-MINI Series Quick Installation Manual

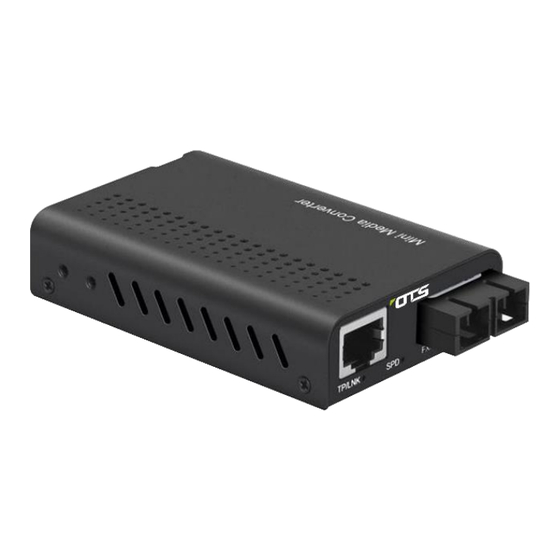

Mini-Type 10/100Base-TX to 100Base-FX Ethernet Media Converter
Package Content
⚫
Mini Type Media Converter x 1
⚫
1A 5VDC Power adaptor x 1
⚫
Quick Start Guide x 1
Installation
Interface
1.
⚫
RJ-45 interface: The transmission media adopts CAT5 or CAT5e twisted-pair with maximum
length up to 100meters (330feets).
⚫
Fiber interface: fiber interface is of duplex mode type, including two interfaces, namely TX
and RX. When the two sets of optical transceiver are interfaced or connected to switch
with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct
butting for single optical fiber transceiver module).
⚫
Power supply interface: The AC/DC power adaptor is connected to DC-input jack of media
converter.
2. Connection
The network device (IP camera, wireless AP, VoIP phone, etc.) with RJ-45 interface is connected
to RJ-45 jack of media converter through twisted-pair. And the multi/single mode optical fiber is
connected to SC/ST fiber interface of the optical transceiver module. Then connect the AC power
adaptor, the media converter will work. The corresponding LED is on for correct connection (See
the table below for the LED indicator lamp).
