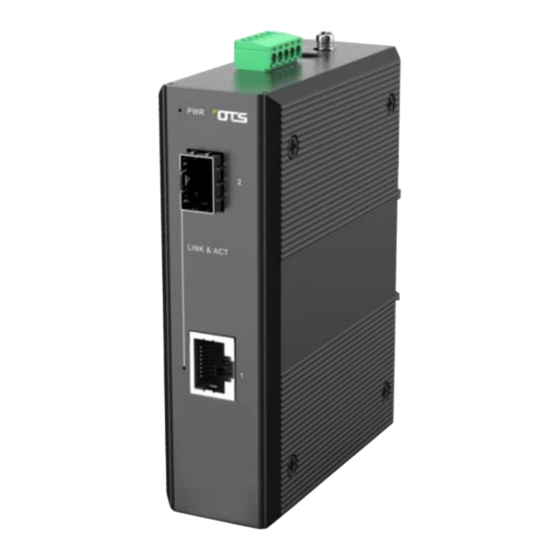

Industrial Grade 10/100/1000Base-TX to 1000Base-SFP Ethernet Media Converter
ET1212-S-DR is an Industrial Gigabit Ethernet Switch, which is designed for the small business network
application. Supports 1-Port 10/100/1000Base-T RJ45 and 1-port 1000Base-X SFP based fiber optics.
The traditional transmission distance of Fast Ethernet over RJ45 copper can be extended up to 100km+
over a fiber optics interface. LEDs provide visual monitoring of Ethernet-connected devices such as IP
cameras, wireless access points, or PC/laptop via 10/100/1000Base-T twisted-pair RJ45 ports,
particularly suitable for deploying and provisioning active Ethernet FTTX service of multi-service
operators (MSO).
Package Content
⚫
Gigabit Ethernet Media Converter x 1
⚫
Din-Rail Clip x 1
⚫
Wall-Mount Kits x 2
⚫
Quick Start Guide x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
Quick Installation Guide
ET1212-S-DR
Read Before Install
Quick Installation Guide
ET1212-S-DR / version 1.0
OT Systems Ltd. | www.ot-systems.com
Advertisement
Related Manuals for OTS ET1212-S-DR
Summary of Contents for OTS ET1212-S-DR
- Page 1 ET1212-S-DR Industrial Grade 10/100/1000Base-TX to 1000Base-SFP Ethernet Media Converter ET1212-S-DR is an Industrial Gigabit Ethernet Switch, which is designed for the small business network application. Supports 1-Port 10/100/1000Base-T RJ45 and 1-port 1000Base-X SFP based fiber optics. The traditional transmission distance of Fast Ethernet over RJ45 copper can be extended up to 100km+ over a fiber optics interface.
- Page 2 Quick Installation Guide ET1212-S-DR / version 1.0 ◎ Make sure enough power supply from PSU that will not overload ◎ Double check the wiring ( +/- ) is correct. ◎ Keep installation dry and clean. ◎ Do not open the chassis...
- Page 3 Quick Installation Guide ET1212-S-DR / version 1.0 Power Input DC 9-56V Power Redundant input available, connect to phoenix contact PWR1 and PWR2 Setup and States a) Connect the Ethernet port of the media converter to a PoE IP camera (PoE device) or network device with a network cable.
