OTS ET1111CBH-S-DR Quick Installation Manual

Industrial grade 10/100base-tx to 100base-sfp ethernet media converter with 1-ch bidirectional contact closure

Advertisement

Quick Links

Industrial Grade 10/100Base-TX to 100Base-SFP Ethernet Media Converter with 1-ch Bi-
Package Content
Fast Ethernet Media Converter x 1
1A 12VDC Power Adaptor x 1
Quick Start Guide x 1
Keep power off during installation
use Antistatic Wrist Strap correctly
Make sure using correct power supply, voltage must match
Make sure enough power supply from PSU that will not overload
Double check the wiring ( +/- ) is correct.
Keep installation dry and clean.
Do not open the chassis
Quick Installation Guide
ET1111CBH-S-DR
Directional Contact Closure
Read Before Install
Quick Installation Guide
ET1111CBH-S-DR / version 1.0
OT Systems Ltd. | www.ot-systems.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET1111CBH-S-DR and is the answer not in the manual?

Questions and answers

Summary of Contents for OTS ET1111CBH-S-DR

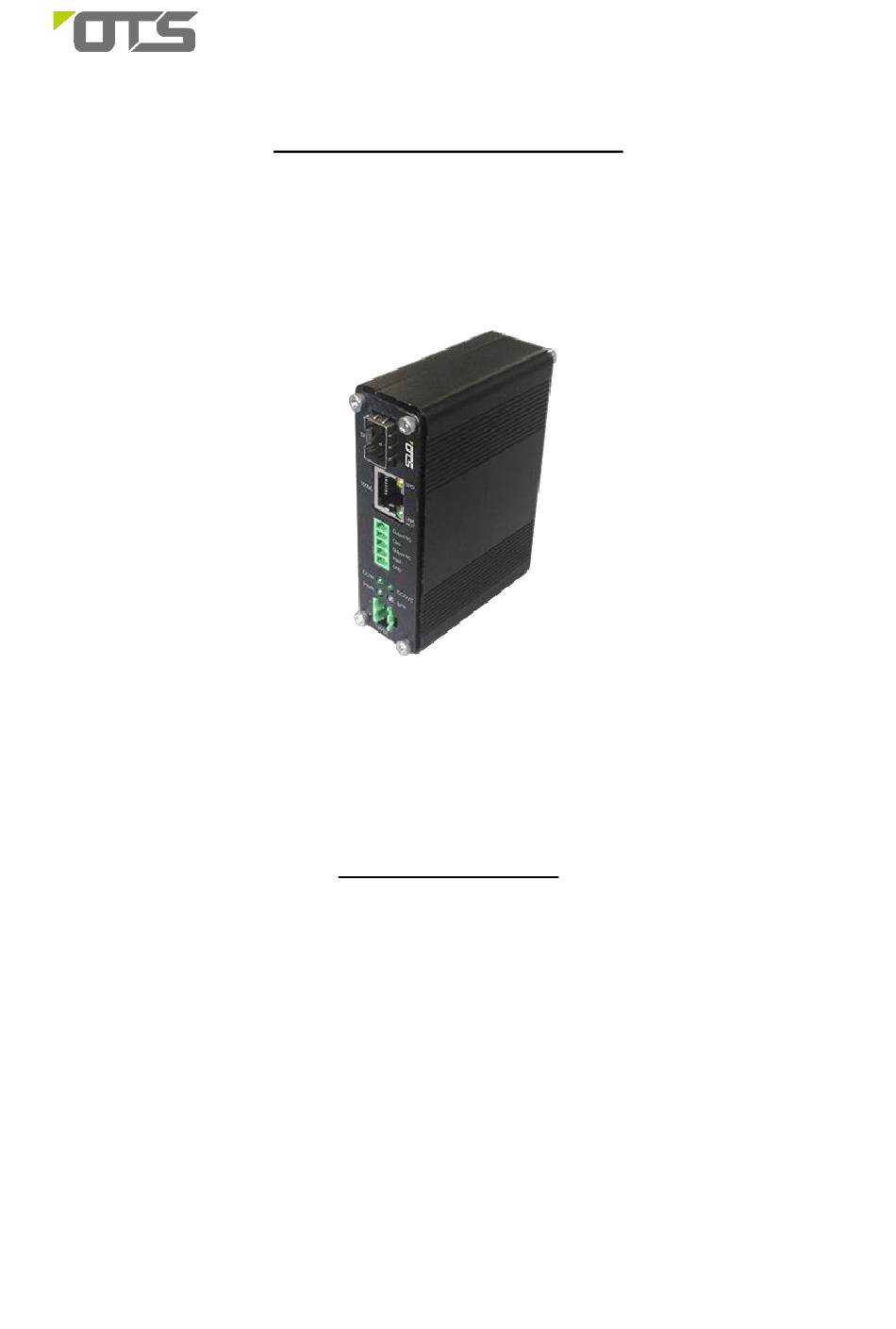

  • Page 1 Quick Installation Guide ET1111CBH-S-DR / version 1.0 Quick Installation Guide ET1111CBH-S-DR Industrial Grade 10/100Base-TX to 100Base-SFP Ethernet Media Converter with 1-ch Bi- Directional Contact Closure Package Content ⚫ Fast Ethernet Media Converter x 1 ⚫ 1A 12VDC Power Adaptor x 1 ⚫...
  • Page 2: Physical Description

    Ethernet Media Converter. Overview ET1111CBH-S-DR is a 1-ch Bi-Directional Contact Closure + 10/100Base-TX to 100Base- SFP Hardened Ethernet Media Converter. The Media Converter provides 1-ch Contact Closure function, SFP port to support the use with a compatible Small Form-factor Optical Transceiver module 100Mbp/s supporting 1 or 2 core Single-mode or multi-mode.
  • Page 3: Installation

    Quick Installation Guide ET1111CBH-S-DR / version 1.0 Installation Optical Transceiver Module Please confirm the transceiver module is 100Mb before use, the module can either be Multi or Single Mode. To insert/remove the SFP, the procedures are as follows: 1. On the front panel, insert the SFP module into the SFP port until it is securely locked.
  • Page 4 Insert the SFP and connect the optical fiber cable to its corresponding connector. Connect the ET1111CBH-S-DR to the power supply. Ensure the power supply in connected to a power source and the PWR indicator is ON. If not, please ensure that the power cable is connected properly, and the power supply is functioning normally.
  • Page 5 Quick Installation Guide ET1111CBH-S-DR / version 1.0 After all cables are connected, the indicators will be lit as per port status LEDs (page 4). Interface RJ-45 Pin Assignment Signal Name Power Connection: Description Power Input 12 VDC Terminal Connections (Contact Closure)
  • Page 6: Functional Description

    No network device is connected Ethernet link at 100Mbps. Amber Ethernet link at 10Mbps or off link. Dimensions of the ET1111CBH-S-DR (Unit: mm) Functional Description • Converts 10/100Base-TX to 100Base-SFP • Support 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX • Single mode or multi-mode fiber operation •...
