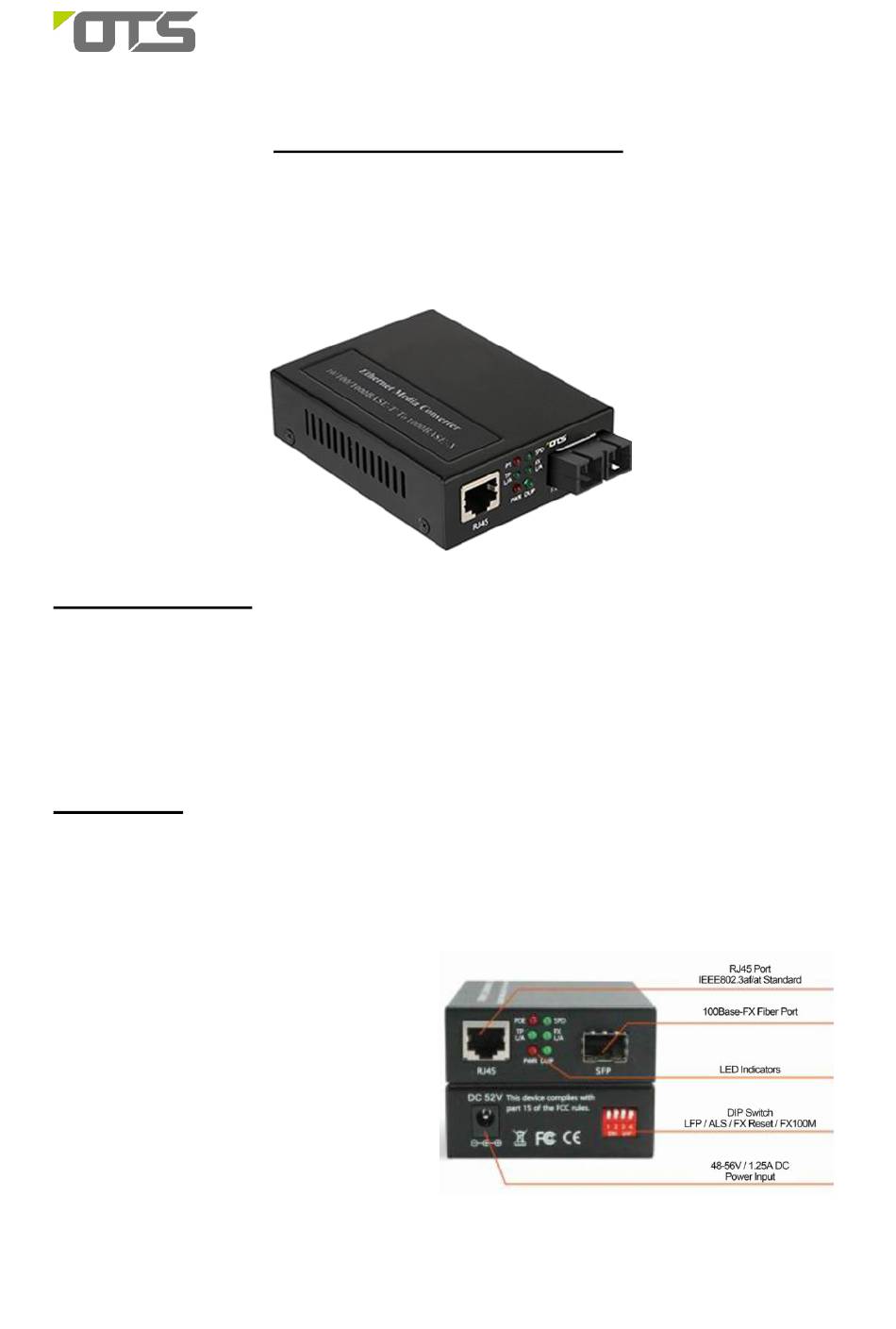

OTS EC1111Pp-X-MINI Series Quick Installation Manual

Mini-type 10/100base-tx (poe+) to 100base-fx ethernet media converter

Advertisement

Quick Links

Mini-Type 10/100Base-TX (PoE+) to 100Base-FX Ethernet Media Converter
Package Content
Mini Type PoE Media Converter x 1
52VDC power adapter x 1
Quick Start Guide x 1
Installation
Interface
1.
RJ-45 interface: The transmission media adopts CAT5 or CAT5e twisted-pair with maximum
length up to 100meters (330feets).
Fiber interface: fiber interface is of
duplex mode type, including two
interfaces, namely TX and RX. When
the two sets of optical transceiver are
interfaced or connected to switch
with fiber interface, the fiber is in
cross connection, namely "TX-RX",
"RX-TX" (direct butting for single
optical fiber transceiver module).
Power supply interface: The AC/DC power adaptor is connected to DC-input jack of media
converter.
Quick Installation Guide
EC1111Pp-X-MINI Series
Quick Installation Guide
EC1111Pp-X-MINI Series / version 1.0
