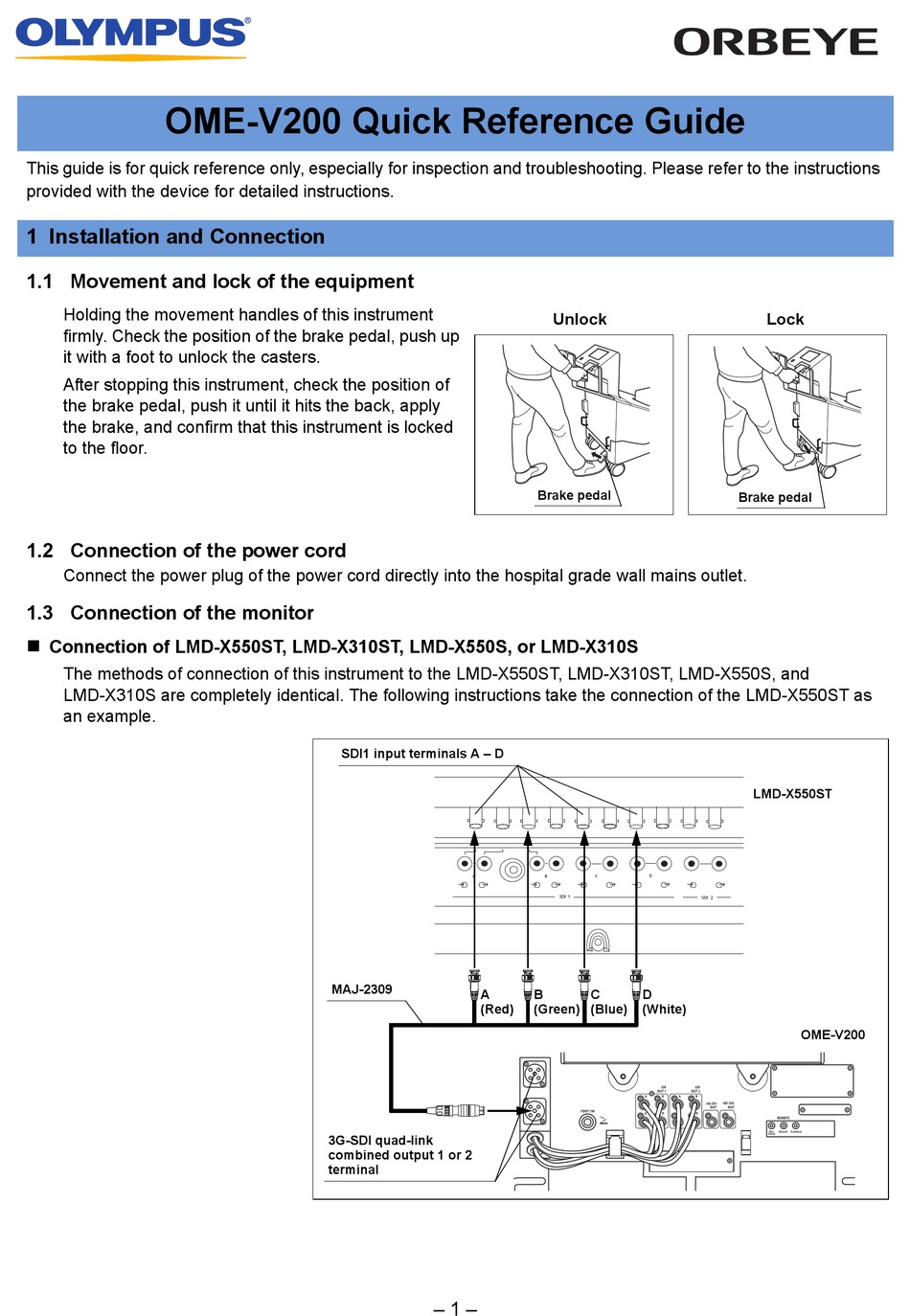

OME-V200 Quick Reference Guide
This guide is for quick reference only, especially for inspection and troubleshooting. Please refer to the instructions
provided with the device for detailed instructions.
1 Installation and Connection
1.1 Movement and lock of the equipment
Holding the movement handles of this instrument
firmly. Check the position of the brake pedal, push up
it with a foot to unlock the casters.
After stopping this instrument, check the position of
the brake pedal, push it until it hits the back, apply
the brake, and confirm that this instrument is locked
to the floor.
1.2 Connection of the power cord
Connect the power plug of the power cord directly into the hospital grade wall mains outlet.
1.3 Connection of the monitor
Connection of LMD-X550ST, LMD-X310ST, LMD-X550S, or LMD-X310S
The methods of connection of this instrument to the LMD-X550ST, LMD-X310ST, LMD-X550S, and
LMD-X310S are completely identical. The following instructions take the connection of the LMD-X550ST as
an example.
SDI1 input terminals A – D
A
→
→
MAJ-2309
A
(Red)
3G-SDI quad-link
combined output 1 or 2
terminal
– 1 –
Unlock
Brake pedal
c
B
D
→
→
→
→
→
→
→
SDI
1
SDI
B
C
D
(Green)
(Blue)
(White)
Lock
Brake pedal
LMD-X550ST
→
2
OME-V200
