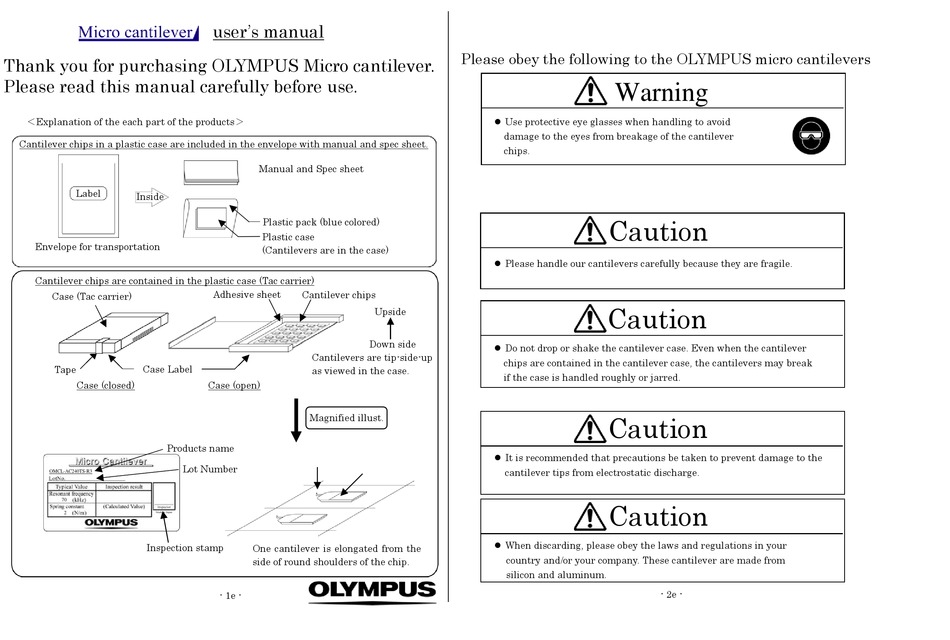

Olympus OMCL-AC240TS-R3 User Manual

Thank you for purchasing OLYMPUS Micro cantilever.
Please read this manual carefully before use.
＜Explanation of the each part of the products＞
Cantilever chips in a plastic case are included in the envelope with manual and spec sheet.
Label
Inside
Envelope for transportation
Cantilever chips are contained in the plastic case (Tac carrier)
Case (Tac carrier)
Tape Case Label
Case (closed)
Case label
Products name
OMCL-AC240TS-R3
70
2
Inspection stamp
user's manual
user's manual 書
Manual and Spec sheet
Plastic pack (blue colored)
Plastic case
(Cantilevers are in the case)
Adhesive sheet Cantilever chips
Cantilevers are tip-side-up
as viewed in the case.
Case (open)
Magnified illust.
Cantilever
Lot Number
One cantilever is elongated from the
side of round shoulders of the chip.
- 1e -
Please obey the following to the OLYMPUS micro cantilevers
 Use protective eye glasses when handling to avoid
damage to the eyes from breakage of the cantilever
chips.
 Please handle our cantilevers carefully because they are fragile.
Upside
Down side
 Do not drop or shake the cantilever case. Even when the cantilever
chips are contained in the cantilever case, the cantilevers may break
if the case is handled roughly or jarred.
Cantilever chip  It is recommended that precautions be taken to prevent damage to the
(substrate)
cantilever tips from electrostatic discharge.
 When discarding, please obey the laws and regulations in your
country and/or your company. These cantilever are made from
silicon and aluminum.
Warning
Caution
Caution
Caution
Caution
- 2e -
