Package Contents

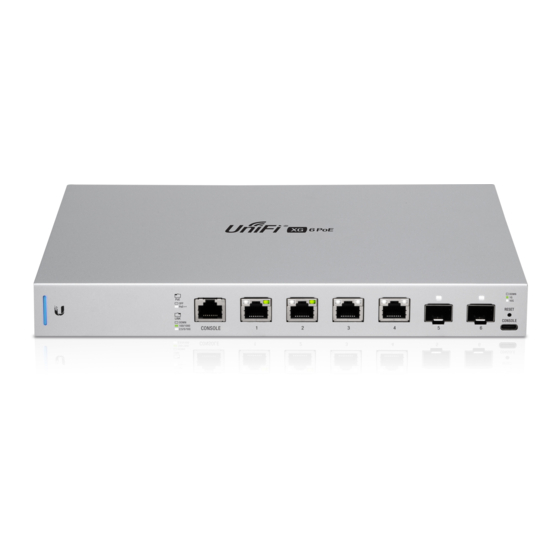

UniFi Switch
Mount Brackets (Qty. 2)
Bracket Screws (Qty. 8)
Mounting Screws (Qty. 4)
Screw Anchors (Qty. 4)
Power Adapter
Create PDF in your applications with the Pdfcrowd
HTML to PDF API
PDFCROWD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi US-XG-6POE and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UniFi US-XG-6POE

Summary of Contents for Ubiquiti UniFi US-XG-6POE

  • Page 1 Package Contents UniFi Switch Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 2: System Requirements

    Power Cord Cable Clip System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.8 or above recommended Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v5.8.x (or newer), available at: ui.com/download/unifi Hardware Overview Create PDF in your applications with the Pdfcrowd HTML to PDF API...
  • Page 3 System LED Flashing White Initializing. Steady White Factory defaults, waiting for adoption. Device is busy; do not touch or unplug it. This usually Alternating White/Blue indicates that a process such as a firmware upgrade is taking place. Successfully adopted by a network and working Steady Blue properly.
  • Page 4 PoE Disabled White 802.3af/at/bt PoE RJ45 Link/Speed/Activity LED (Ports 1 - 4) No Link Link Established at 1 Gbps Green Flashing Indicates Activity Link Established at 10 Gbps White Flashing Indicates Activity SFP+ Link/Speed/Activity LED (Ports 5 - 6) No Link Link Established at 1 Gbps Green Flashing Indicates Activity...
  • Page 5 Baud rate 115200 Data bits 8 Parity NONE Stop bits 1 Flow control NONE RJ45 (Ports 1 - 4) RJ45 ports support 100 Mbps or 1/2.5/5/10 Gbps Ethernet connections and 802.3af/at/bt PoE output. SFP+ (Ports 5 - 6) Hot-swappable SFP+ ports support 1/10 Gbps connections. USB Console Port USB Type C console port for Command Line Interface (CLI) management.

  • Page 6: Hardware Installation

    Note: Ensure the polarity is correct: red is positive (+) and black is negative (-). You can use the redundant DC power source as a hot spare; if there is no longer power through the Power port, the UniFi Switch will switch to the DC power source without interrupting its operation.
  • Page 7 Using the Cable Clip (Optional) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 9 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 10: Connecting Power

    Connecting Power You have two options: "Using the Power Adapter" "Using the DC Input (Optional)" Using the Power Adapter Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 12 Using the DC Input (Optional) For stand-alone power or redundant backup, connect a DC power source to the UniFi Switch. Note: Only one power source can be used at any one time. With both power sources connected, the input with the highest voltage will be used; the other power source defaults to backup.

  • Page 13: Connecting Ethernet

    Connecting Ethernet Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 14 Connecting SFP+ Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 15 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 16 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 17: Software Installation

    For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.8.x or newer installed, skip to the section, "Adopting the UniFi Switch".
  • Page 18 name and password that you created and click Sign In. You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to the section, "Adopting the UniFi Switch". For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch...
  • Page 19 1. From the UniFi Controller dashboard, click Devices in the left menu bar. 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 20: Specifications

    3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications US-XG-6POE Dimensions 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25") Weight 1.3 kg (2.87 lb) Interfaces Networking (4) 100 Mbps or 1/2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Create PDF in your applications with the Pdfcrowd...
  • Page 21 US-XG-6POE Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band Power Method 54VDC, 3.88A Power Adapter (Included) or 44 to 57VDC, 5.56A DC Input with Terminal Block Power Supply External AC/DC Adapter (Included) DC Power Source Supported Voltage Range 44 to 57VDC Max.

  • Page 22: Safety Notices

    Voltage Range 802.3af Mode 44-57V Voltage Range 802.3at/bt Mode 50-57V Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow.

  • Page 23: Limited Warranty

    3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.

  • Page 24: Declaration Of Conformity

    This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 25: Online Resources

    Online Resources © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
