Summary of Contents for Ubiquiti UniFi SWITCH 8 60W

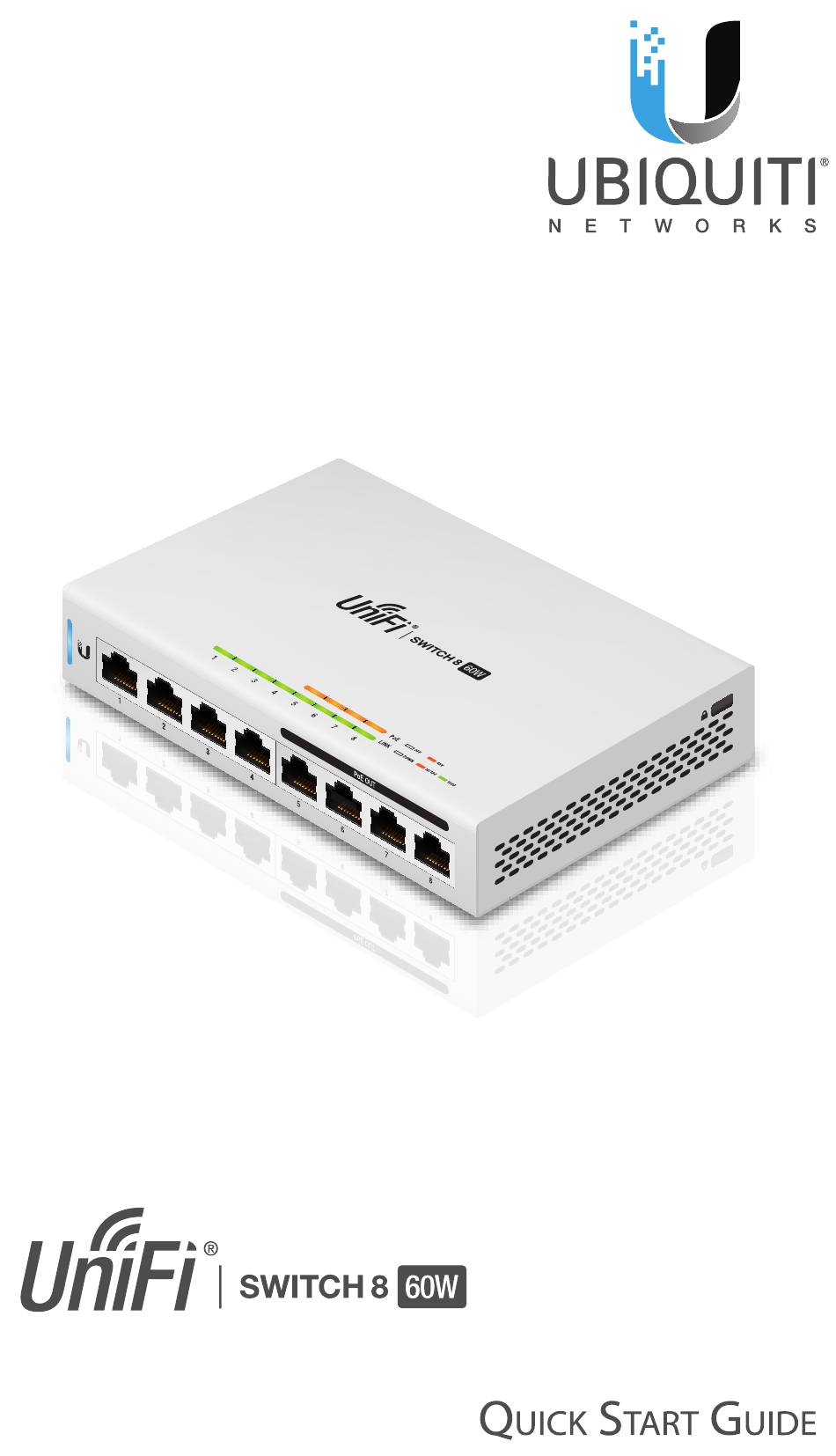

- Page 1 8-Port Managed Gigabit Switch with 802.3af PoE Model: US-8-60W...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® 8-Port Managed Gigabit Switch with 802.3af PoE. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents UniFi Switch Mounting Screws Screw Anchors (Qty. -
Page 3: Network Topology Requirements
Network Topology Requirements • A DHCP-enabled network for the UniFi Switch to obtain an IP address (connected devices will also obtain IP addresses after deployment) • A UniFi Cloud Key or management station running the UniFi Controller software v5.3 (or newer), located either on-site and connected to the same Layer 2 network, or off-site in a cloud or NOC UniFi Cloud Key... -
Page 4: Hardware Overview
Hardware Overview Front Panel Ports 1-4 Ports 5-8 Port Description RJ45 ports support 10/100/1000 Ethernet connections. RJ45 ports support 10/100/1000 Ethernet connections and auto-sensing 802.3af PoE. Back Panel Reset Ground Power Button Port Description Optional ancillary grounding point. Ground Power Connect the included Power Adapter to the Power port. - Page 5 LEDs System System LED State Status Flashing White Initializing. Steady White Factory defaults, waiting for integration. Alternating Device is busy; do not touch or unplug it. White/Blue This usually indicates that a process such as a firmware upgrade is taking place. Steady Blue Successfully integrated into a network and working properly.
- Page 6 RJ45 LEDs Link/Speed/Activity State Status PoE Off PoE On (IEEE 802.3af ) Amber No Link Link Established at 10/100 Mbps Link/ Amber Speed/ Flashing Indicates Activity Activity Link Established at 1 Gbps Green Flashing Indicates Activity *640-00253-05* 640-00253-05...
- Page 7 Side Panels Ventilation Holes WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. WARNING: The US-8-60W must not be stacked. Do not place it on top of another switch. Do not place anything on top of the US-8-60W.
-
Page 8: Hardware Installation
Hardware Installation The UniFi Switch can be mounted on a vertical surface or placed on a desktop. Follow the Wall Mounting instructions to mount the switch using the included screws and anchors. WARNING: To reduce the risk of fire or electric shock, do not expose the switch to rain or moisture. - Page 9 4. Mount the UniFi Switch by inserting the screw heads into the mounting slots on the bottom of the switch. Then slide the switch down to lock it in place.
- Page 10 Grounding (Recommended) The UniFi Switch is grounded through the Power Adapter; however, you can enhance ESD protection by connecting the ancillary ground. 1. Loosen the ground screw and secure a ground wire (not included) to the grounding point. 2. Secure the other end of the ground wire to a grounding block or other grounded structure.
-
Page 11: Connecting Power
Connecting Power 1. Connect the Power Adapter to the Power port on the back of the UniFi Switch. 2. Connect the Power Cord to the Power Adapter. Connect the other end of the Power Cord to a power outlet. -
Page 12: Connecting Ethernet
Connecting Ethernet 1. Connect an Ethernet cable from your DHCP server or LAN to any port on the UniFi Switch. P o E 2. Connect your 802.3af PoE devices to ports 5-8, and PoE will automatically be activated. P o E... -
Page 13: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software at www.ubnt.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.3.x or newer installed, skip to the section, Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. - Page 14 Adopting the UniFi Switch 1. From the UniFi Controller dashboard, click Devices in the left menu bar. 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. 3.
-
Page 15: Specifications
Specifications UniFi Switch US-8-60W 148 x 99.5 x 30.7 mm Dimensions (5.83 x 3.92 x 1.21") Weight 432 g (15.24 oz) (8) 10/100/1000 Mbps RJ45 Ports Networking Interfaces (4) Ports 5, 6, 7, 8: IEEE 802.3af PoE Interfaces 48VDC, Max. 2A Power Method External AC/DC Adapter: 48V, 1.25A Power Supply... -
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 18 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 19: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... -
Page 20: Australia And New Zealand
ISED Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian CAN ICES-003. CAN ICES-3(A)/NMB-3(A) Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. - Page 21 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu...
-
Page 22: Declaration Of Conformity
English Hereby, UBIQUITI NETWORKS, declares that this US-8-60W device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance... - Page 23 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta US-8-60W tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...
-
Page 24: Online Resources
Español [Spanish] Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo US-8-60W, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE. El texto completo de la declaración UE de conformidad está...
