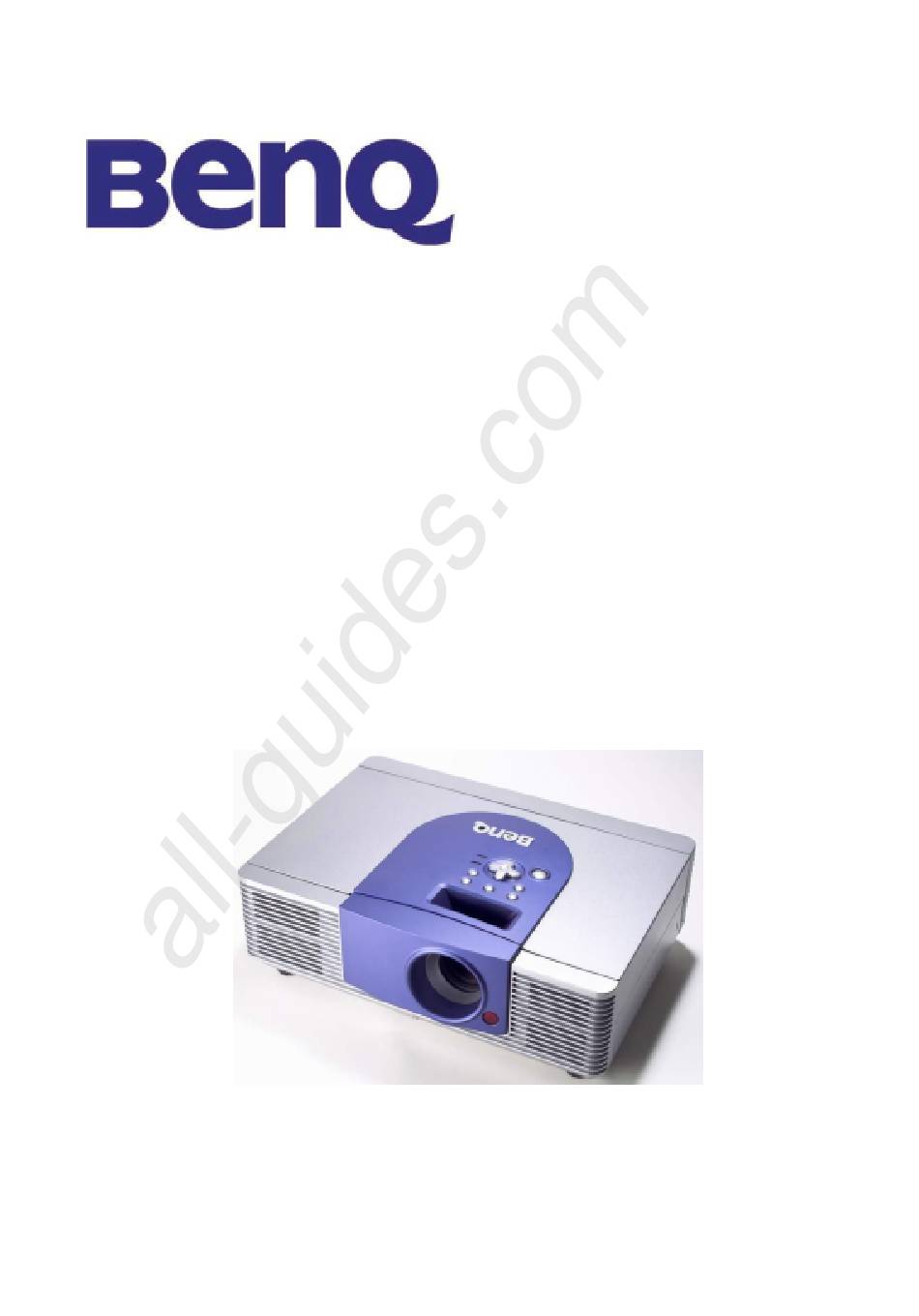

DLP PROJECTOR
SERVICE MANUAL
MODEL：PE8700
CAUTION
BEFORE SERVICING THE PROJECTOR,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE8700 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ PE8700

Summary of Contents for BenQ PE8700

  • Page 1 All manuals and user guides at all-guides.com DLP PROJECTOR SERVICE MANUAL MODEL：PE8700 CAUTION BEFORE SERVICING THE PROJECTOR, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents 1. Safety Precautions 2. Servicing Precautions 3. Engineering Specification 4. Spare Parts List 5. Block Diagram 6. Packing Description 7. Appearance Description 8. Alignment Procedure 9. Trouble Shooting Guide 10. Factory OSD Operation 11.

  • Page 3: Safety Precautions

    All manuals and user guides at all-guides.com Safety Precautions 1. Be sure to read this manual before servicing and save it for future reference. 2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life.

  • Page 4: Engineering Specification

    All manuals and user guides at all-guides.com 3. Engineering Specification Superscripts indicate the method in Appendix B used for a given measurement, unless otherwise noted. 1.0 Image Quality All tests must adhere to the assumptions in Appendix A 1.1 Brightness (In ‘optical test’...
  • Page 5 All manuals and user guides at all-guides.com Keystone 1.0% 1.9 Descriptive Image Quality There should be no streaks or jitter, good saturated colors, and crisp resolution. Must adhere to Appendix E 1.10 Lateral Color 1 Pixel 1). 52” Diagonal for OPT test; 2).
  • Page 6 All manuals and user guides at all-guides.com 2.7.1 PC Mode 1280 x 720 pixels 1280 x 720 pixels 2.7.2 Video Mode 3.0 Mechanical & Cosmetic 3.1 Dimensions 400L x 347W x 116H 3.2 Weight 16.7 lbs (7581 g) 3.3 Security Slot Kensington compatible slot 150N break away force 3.4 Feet 4 adjustable feet...
  • Page 7 All manuals and user guides at all-guides.com 6.2 Control 6.2.1 IR Receivers 6.2.1.1 Location 2receiver, located on the front and rear of this projector 6.2.1.2 Range 8m ( front ) / 5m ( rear ) with 30 degree horizontal Angle and 15 degree vertical angle 7.0 Power Requirements 7.1 Power Supply...
  • Page 8 All manuals and user guides at all-guides.com 14.4.1 Straight Drop 50mm 14.4.2 Tilt Over Should be able to fall over from tilting without taking any damage. Must Adhere to Appendix B 14.5 Gas No corrosive, toxic, or combustible gas should be emitted 14.6 Electrostatic Discharge comply to the acceptance criteria as specified in 61000-4-2/1995...
  • Page 9 All manuals and user guides at all-guides.com Appendix A Optical Measurement This part of the Optical Test Instruction describes those measurements to be executed during the production of the optical engines. Content: A1 BRIGHTNESS A2 BRIGHTNESS UNIFORMITY A3 BRIGHTNESS DIFFERENCE A4 ANSI CONTRAST A5 PEAK CONTRAST A6 LIGHT LEAKAGE...
  • Page 10 All manuals and user guides at all-guides.com Practical consideration 1. When measuring contrast manually, operators should not wear white clothing since light reflected from white clothing can influence the measurement. 2. Unless otherwise specified the projection lens is set in the widest zoom position since zoom function can influence the measurement.
  • Page 11 All manuals and user guides at all-guides.com A2. BRIGHTNESS UNIFORMITY Unit: Brightness: Default Contrast: Default Uniformity = 1/20w 1/20h A3. BRIGHTNESS DIFFERENCE Unit: Brightness: Default Contrast: Default Brightness Difference= − A4. ANSI CONTRAST Unit: Contrast : 1 Brightness: Default Contrast: Default Contrast Ratio shall be determined from illuminance values obtained from a black-and-white ”chessboard”...
  • Page 12 All manuals and user guides at all-guides.com A5. PEAK CONTRAST Unit: Contrast : 1 Brightness: Default Contrast: Default Contrast Ratio = Lux value at the center of a solid white screen/the lux value of a solid black screen A6. LIGHT LEAKAGE Unit: Brightness: Default Contrast: Default...
  • Page 13 All manuals and user guides at all-guides.com A9. ZOOM RATIO Unit: Ratio : 1 Brightness: Default Contrast: Default Zoom ratio = maximum / minimum image diagonal size at a fixed projection distance. A10. FOCUS RANGE Unit: m (Max~Min) Brightness: Default Contrast: Default The minimum/maximum focus distance is the minimum/maximum projection distance (front side projection lens and the image lane), expressed in meter,...
  • Page 14 All manuals and user guides at all-guides.com Appendix B Design Verification Test Procedure 1.Purpose This standard establishes the environmental specification for projector related products, which defines the level of product performance and reliability in the field. It is not necessary the intent of these specification to simulate a typical user environment, but rather to provide for a level of product robustness that when applied over a wide range of manufacturing variability and environmental usage conditions.
  • Page 15 All manuals and user guides at all-guides.com 3.Definition 3.1 Failure Criteria: The product is expected to perform to its full potential without loss of function, performance, critical parametric changes, and other undesirable anomalies, over the applied boundaries of this specification. The following product failure are not allowed within the boundaries defined in this specification: 1.Failure including permanent damage, critical parametic changes (optical performance defined in Appendix A), and latent defects.
  • Page 16 All manuals and user guides at all-guides.com Appendix C Drawings and Attachments Drawing 1: Top view of BENQ PE8700 video projector...
  • Page 17 All manuals and user guides at all-guides.com...
  • Page 18 All manuals and user guides at all-guides.com Appendix D HD2 Front Projection Image Quality Specification 1. SCOPE This document specifies the image quality requirements applicable to the HD2 Component Set for Front Projection image display. The HD2 Component Set provides digital imaging functionality based on Digital Micromirror Device (DMD) technology.
  • Page 19 All manuals and user guides at all-guides.com 2.8 Gray 6 test screen This screen is used to test light blemishes and bright pixels. All areas of the screen are colored at a specific gray level, based on MS Paint 0-255 RGB scale: Major Light Blemish Blue Value Red Value...
  • Page 20 All manuals and user guides at all-guides.com 2.12 Red Ramp test screen This screen is used to test light border blemishes and bright pixels. All areas of the active area are colored at a specific gray level, based on MS Paint 0-255 RGB scale: Major Dark Blemish Blue Value Red Value...
  • Page 21 All manuals and user guides at all-guides.com Light Pixel Gray 6 No light pixels visible on Gray 6 Total of Dark and Light Blemishes ≦ Minor Blemishes White or Black (See Test 4 , 5) Unstable Pixel Red Ramp No unstable pixels Screen(or any other TABLE 1.
  • Page 22 All manuals and user guides at all-guides.com Appendix E Supporting Timings Table 1: Support Timings by DVI-I Input (Analog or Digital PC signals) Resolution Vert. Freq Hori. Freq Pixel freq Digital (D)/ Polarity (Hz) (kHz) (MHz) Analog (A) 640 x 400 70.089 31.470 25.167...
  • Page 23 All manuals and user guides at all-guides.com Table 3: EDTV and HDTV Timing supported by component (YPBPR) and RGBHV Input Index Format Line Pixel Frame Line Line Frame Frame H back H sync V back V sync name Rate Rate Rate active total...

  • Page 24: Spare Parts List

    CTN AB 455X500X228 HT720G/BEN 47.J2008.001 CUSHION FRONT EPE HT480W 47.J5804.001 CUSHION REAR EPE HT720G BENQ 50.J2103.501 CABLE RGA/DVI-A (WHDDC) 1.8M 50.L2508.501 SIGNAL/C DUAL DVI-D/DVI-D 200 60.J2028.R01 ASSY AV CABLE RUNCO CL-500 98.J2032.B01 HT480W BENQ REMOTE CONTROL 60.J2104.CG1 ASSY CSD LAMP MODULE PE8700...

  • Page 25: Block Diagram

    All manuals and user guides at all-guides.com 5. Black Diagram Conntctor Board Main Board DMD Board RGB DVI Sil169 (U17) RGB PC (U2,U3,U4) RGB/YPbPr ADC AD9883 Color (U7) Scaler Cheel RM1-A (U5) YCbCr Reset IC De-interlace Blaster Lamp (U18) SII504 YPbPr Video Port (U5)

  • Page 26: Packing Description

    All manuals and user guides at all-guides.com 6. Packaging Description...

  • Page 27: Appearance Description

    All manuals and user guides at all-guides.com 7. Appearance Description...
  • Page 28 All manuals and user guides at all-guides.com...

  • Page 29: Alignment Procedure

    All manuals and user guides at all-guides.com 8. Alignment Procedure 1. DMD Bias Voltage Alignment Equipment: None Procedure: 1. Watch DMD chip Label 2. Switch the DIP switch on DMD board according to the character on the DMD chip 1 of SW H1 1 2 of SW H2 1 0: Left;...
  • Page 30 All manuals and user guides at all-guides.com Procedure: 1. Probe impedance matches 50 ohm 2. Change Timing and pattern of pattern generator : Timing : 800x600@60Hz (H:37.879Khz,V:60.317Hz) pattern : full white 3. Adjust user & factory OSD values to default. 4.
  • Page 31 All manuals and user guides at all-guides.com 3. DVI-Analog Color Alignment Procedure Default valve(User menu) contrast color Sharpness Video S-Video Comp Comp-HD RGBHV DVI-I The Gamma(RED ,GREEN,BLUE) is for temperature 0,1,2,3,4. Equipment: Pattern generator (Chroma 2250) Lux meter ( CL-100) OSD Default value used for DVI-Analog color alignment Item Value...
  • Page 32 All manuals and user guides at all-guides.com Procedure: A. Black Level Adjustment: (DLP brightness) Change pattern of pattern generator : Pattern : Black (Gray 0) Adjust DLP Brightness to let the black picture to just distinguish. B. White Level Adjustment: (AD contrast---R,G,B gain) 1.
  • Page 33 All manuals and user guides at all-guides.com 3 The variance of color coordinate via R,G,B gains: R ↓ X ↓ G ↓ y ↓ B ↓ X ↑ y ↑ 4. Adjust 6500K temperature color by changing Gamma-Rgain, Ggain, and Bgain. 5.
  • Page 34 All manuals and user guides at all-guides.com Filter Contrast Color Temp Saturation Pb offset Pr offset Procedure: (a). PBPR Offset adjustment: (AD PB, PR Offset) 1. The variance of color coordinate via Pb offset and Pr offset: Pb offset ↓ x ↓...
  • Page 35 All manuals and user guides at all-guides.com (c). Saturation Level: (Scalar) 1. Change Timing and pattern of pattern generator : Timing : 480P(H:31.54 KHz,V:60.08 Hz) pattern : 100% blue 2. Adjust saturation and use lux meter to measure to let the light output just max. Select “Save Setting”...
  • Page 36 All manuals and user guides at all-guides.com Case x1>x0 & y1 > y0 : y =.331 dy=.01 1/2dy=0.005 x =.291 x =.281 y =.321 y =.316 dec. Pb dec. Pb dec. Pr x0 =.281 y0 =.311 x0 =.281 y0 =.311 x0 =.281 y0 =.311 x =.281...
  • Page 37 All manuals and user guides at all-guides.com 5. TV Color Alignment Procedure 5.1 TV Color Temp Alignment Equipment: Pattern generator (VG-828) Lux meter ( CL-100) OSD Default value used for YCBCR color temp alignment Item Value Item Value USER>Picture> Brightness Contrast Color Tint...
  • Page 38 All manuals and user guides at all-guides.com 6. User the lux meter and adjust Gamma-Rgain, Gamma-Ggain, & Gamma-Bgain to meet the spec. 7. Press “Save Color Temp. Videos > AS Color Temp 5400” to save into memory. 8. Repeat 6~7 to perform the 6500K and 7500K color temperature. 9.
  • Page 39 All manuals and user guides at all-guides.com 5.3 Gray Level for Composite Video & S-Video Equipment: Pattern generator (VG-828) Lux meter ( CL-100) OSD Default value: Item Value Item Value USER>Picture> Brightness Factory>SD Contrast Brightness Color Contrast Tint Saturation Sharpness Filter Color Temp Procedure:...

  • Page 40: Trouble Shooting Guide

    All manuals and user guides at all-guides.com 9. Trouble Shooting Guide 1. System trouble shooting : Is LED light when Check door luck 1.Check +3Vs, +5Vs Main Power Switch switch 2. Check power Is Orange LED Are fans spinning? Check fans, wire and active when remote Translation board power on?
  • Page 41 All manuals and user guides at all-guides.com 2. Main board trouble shooting: (1) Main: 1. See CPU trouble shooting REMOTE U18, reset successful? POWERON 2. U17, RP25, RP24 OK? CPU (U10) 56pin(IR) signal? OSD ok? 1. RP19,RP17,RP15,RP13 When no valid signal 2.
  • Page 42 All manuals and user guides at all-guides.com (2) SIL504 trouble shooting: (U4, U2) X1, 20Mhz? 1. check X1, C41, C42 RESET check U17,RP25 successful? System IIC ok? 1.Q2,Q3 ok? (level shift ) (U4 pin 15,14) 2. RP7 ok? ( IIC Pull high) SIL504 IIC ok? 1.
  • Page 43 All manuals and user guides at all-guides.com (3) CPU (U10) trouble shooting guide : Check +3Vs (pin92) Check X1 1. Check C75, C76 crystal 2. replace X1 check U18, make sure U18 RESET pin1 has delayed for certain Successful? period of time ,from L go H. 1.
  • Page 44 All manuals and user guides at all-guides.com 3. DMD board trouble shooting guide. RESETZ And 1. No RESETZ check main board and POWERGOO translation board. 2. No POWERGOOD check main board Color wheel 1. Check Color wheel and CW connector (J4) Spinning? 2.
  • Page 45 All manuals and user guides at all-guides.com 4. Connector board trouble shooting guide. S-video is OK? Check L14,L17 Check U5 Check U10 Composite is Check L13 Check U5 Check U10 Component is Check L15,L16,L18 Check U10 DVI- A is Check L28,,L29,L31,L32,L33 Check U17 DVI-D (HDCP)is Check U18 DDC...
  • Page 46 All manuals and user guides at all-guides.com Check R61,R62 RS232 is OK? Check U14 Check main board 5. Power board trouble shooting guide. P o w e r B D C h e c k . D is c o n n e c t th e w ir e F u s e B r o k e n ? f o r m b u tto m b d .
  • Page 47 All manuals and user guides at all-guides.com + 1 2 V O u t p u t P r o c e e d " N o 1 2 V C h e c k 1 2 V e x i s t s O u t p u t "...
  • Page 48 All manuals and user guides at all-guides.com N o 1 2 V o u t p u t N o + 5 V - F i x o u t p u t C h e c k D 7 0 1 h a d b e e n S o l d e r i t a g a i n .
  • Page 49 All manuals and user guides at all-guides.com C h e c k p rim a r y c ir c u it. P ro c e e d to " C h e c k F u s e B r o k e n ? IC 6 0 1 "...

  • Page 50: Factory Osd Operation

    All manuals and user guides at all-guides.com 10. Factory OSD Operation There are 10 pages in this OSD, the ways to enter factory OSD are open user OSD, then press power on button. If you have to return user OSD, open factory OSD and press power on button again.
  • Page 51 All manuals and user guides at all-guides.com 2. HD Adj This page is the settings of A/D converter. There are 2 sections, one is for RGBHV format signal (DVI-A input and RGB-HD input), the other is for YPbPr format signal (Comp-HD input).
  • Page 52 All manuals and user guides at all-guides.com Page Items Comment Range Brightness V/D brightness 0~255 Component Contrast V/D contrast -128~127 Saturation V/D saturation -128~127 4. Color Balance For color temperature settings, they are the combination of gamma gain and gamma offset.
  • Page 53 All manuals and user guides at all-guides.com Page Items Comment Save gamma gain and gamm offset For data input (Component >= 480p as color temp 9300K signal, DVI-A, and DVI-D) Save gamma gain and gamm offset For data input (Component >= 480p as color temp 6500K signal, DVI-A, and DVI-D) Save Data Temp.
  • Page 54 All manuals and user guides at all-guides.com 6. DLP This page allows user to change DLP settings. Page Items Comment Range Brightness DLP brightness -64~64 Contrast DLP contrast 0~100 CW delay DLP color wheel delay 0~1023 Degamma DLP degamma table Table 7.Pattern1 This page allows user to call up DLP present curtains and RM-1A patterns.
  • Page 55 All manuals and user guides at all-guides.com 8.Pattern2 This page allows user to call up DLP DDP1010 series present patterns. Page Items Comment Solid Field - Yellow DLP DDP1010 present pattern. For checking color. Solid Field - Cyan DLP DDP1010 present pattern. For checking color. Solid Field - Magenta DLP DDP1010 present pattern.
  • Page 56 All manuals and user guides at all-guides.com DLP DDP1010 present pattern. For inspection of 'minor blemishes' on White Full DMD chip. DLP DDP1010 present pattern. For inspection of 'minor blemishes' on Black Full DMD chip. DLP DDP1010 present pattern. For inspection of 'unstable pixel' on DMD Red Ramp chip.

  • Page 57: Firmware Upgrade Procedure

    All manuals and user guides at all-guides.com 11. Firmware Upgrade Procedure Connect specific download cable to RS232 (RJ-11) connector. Remember to turn the AC switch off. Execute the ‘Flash Loader’ program. If the ‘COM Settings’ item is ready, you can see ‘Identifying target…’...
  • Page 58 All manuals and user guides at all-guides.com Turn the AC switch on. In 3 seconds, ‘flash loader’ will identify the flash ROM of this unit. Choose ‘Hex File Format’ as ‘Intel Extended’, ‘Operation’ as ‘Program’, and ‘Browse’ the ‘File Name’. After that, press the ‘Start’ button. ‘Flash Loader’ starts to load program to Flash ROM.

  • Page 59: Rs232 Codes

    12. RS232 Codes 1. Set up peripherals BenQ PE8700 provides an RJ-11 connector for RS232 serial communication control. The user can use the ‘Hyper Terminal’ program of Microsoft Windows to control this unit. To set the settings of serial port first is necessary. Choose which COM port you want...
  • Page 60 All manuals and user guides at all-guides.com After settling down, connect our specific RS232 cable and press the ‘call’ icon of ‘Hyper Terminal’ program. After this, press ‘Enter’ key, if an ‘>’ symbol come up, that means the unit is ready to accept commands for computer. 2.
  • Page 61 All manuals and user guides at all-guides.com Code Function Must be Reversed , no function Power On Power Off Message On Message Off Lamp hours reset Load all user OSD default value Save current active source settings Change active OSD Menu Enter Exit...
  • Page 62 All manuals and user guides at all-guides.com Aspect - Standard (4:3) Aspect - Letter box Aspect - Virtual wide Aspect - Through Load memory 1 settings Load memory 2 settings Load memory 3 settings Load 'optical test' mode settings Load 'middle' mode settings Load 'CW delay adjustment' mode settings Load default of current source Save memory 1 settings...
  • Page 63 All manuals and user guides at all-guides.com Image orientation - floor front Image orientation - ceiling front Image orientation - floor rear Image orientation - ceiling rear Back light board On Back light Board Off On line help When an user sends a command, he must follow the command format in the list. After he sends a command, program will acknowledge 2 pieces of information.
  • Page 64 All manuals and user guides at all-guides.com Following is the list of Y-group: Code Function Save current factory settings Load saved factory settings Load factory default Load all user default Burn-In mode on Burn-In mode off Set RS232 baudrate as 9600 Set RS232 baudrate as 115200 Save as data color temperature 1 Save as data color temperature 2...
  • Page 65 All manuals and user guides at all-guides.com Red Curtain Green Curtain Blue Curtain Black Curtain Color Bar Chess Board Optical 13-point Reflective Edge Grid Blue 90 Curtain Gray 10 Curtain Gray 6 Curtain Full White Curtain Full Black Curtain Red Ramp Curtain Gray 20 Curtain Load 'optical test' mode settings Load 'middle value' mode settings...
  • Page 66 All manuals and user guides at all-guides.com Example: 1. Command = Y89893 (Enter) ACK = Y1Y (Illegal format, wrong length) 2. Command = Y98 (Enter) ACK = Y2Y (Illegal function) 3. Command = Y52 (Enter) ACK = Y0Y ACK = Y0_52Y For Z-group, this one is for ‘auto-alignment’...
  • Page 67 All manuals and user guides at all-guides.com Z030 Keystone adjustment Z034 RGBHV input -- Red offset Z035 RGBHV input -- Green offset Z036 RGBHV input -- Blue offset Z037 RGBHV input -- Red gain Z038 RGBHV input -- Green gain Z039 RGBHV input -- Blue gain Z042...
  • Page 68 All manuals and user guides at all-guides.com Z069 Gamma offset -- Blue Z070 DMD -- Brightness Z071 DMD -- Contrast Z072 DMD -- Color Wheel Delay Z073 DMD -- Degamma table Z080 Burn-in hours Z099 On line help The length of the command must be 11. The format, take an example, to read DMD color wheel delay: Z072RxxxxxZ, where Byte 1: must be 'Z' or 'z'...
  • Page 69 All manuals and user guides at all-guides.com And the length of ACK must be 12, and format is Z0_072+0025Z Byte 1: Always ‘Z’ Byte 2: ACK Byte 3: Always ‘_’ Byte 4~6: function code Byte 7: sign byte, ‘+’ or ‘-‘ Byte 8~11: the current value after writing Byte 12: Always ‘Z’...

  • Page 70: Schematics

    All manuals and user guides at all-guides.com 120-Pin B2B Connectors D_INA[0..23] 80 Pin Connector to DLP D_INA[0..23] D_INA[0..23] OP_A[0..23] D _VSYNC D_VSYNC D_VSYNC OP_A[0..23] OP_A[0..23] D_HS YNC D_HSYNC D_HSYNC OP _VSYNC OP_VSYNC OP_VSYNC DIN_CLK OP_HSYNC DIN_CLK DIN_CLK OP_HSYNC OP_HSYNC OP_ENABLE OP_ENABLE OP_ENABLE DVI_SCDT...
  • Page 71 All manuals and user guides at all-guides.com +5VS +5VS 0.1UF +12VA +12VA KEY_LED0 KEY_LED1 FAN_CTRL KEY_LED2 DLP_RST POWERON DLP_RESETZ BACK_LIGHT_CTRL LAMP_PROTECT KEYPAD0 KEYPAD1 +3VS KEYPAD2 KEYPAD3 +3VS KEYPAD4 KEYPAD5 KEYPAD6 KEYPAD7 KEYPAD8 KEYPAD[0..9] KEYPAD9 CON20 KEYPAD CONNECTOR +3VS Proje 74HC132 BACKLIGHT_CTRL BACK_LIGHT_CTRL Title...
  • Page 72 All manuals and user guides at all-guides.com DI_IN[2..9] Screw Holes D_INA[0..23] RED -- D_INA[23..16] GREEN -- D_INA[15..8] BLUE -- D_INA[7..0] DVI_SCDT TRIGGER MUX_SEL_P CPU_RXD0 +5VS CPU_TXD0 HOLE-V8 MUX_SEL MUX_BUFFER +5VS D_HSYNC D_VSYNC DIN_CLK D_INA23 D_INA21 D_INA22 D_INA20 D_INA19 D_INA17 D_INA18 D_INA16 D_INA15 D_INA13...
  • Page 73 All manuals and user guides at all-guides.com V_IN[0..15] V_IN[0..15] D I_VSYNC DI_VSYNC DI_H SYNC DI_HSYNC TP21 DEINTDONE DEINTDONE TP22 TP23 INTERLACE_DETECT TP24 2:2_DETECT VDD_PLL 3:2_DETECT VDD_CORE RESET_DVDO RESET_DVDO +3VA TP27 TP25 TP26 HOSTADDR5 VDDCORE_1.8 HOSTADDR4 HOSTADDR3 TP28 Note: The Sil 503 does not supp LCDPWREN HOSTADDR2 503CBLANK...
  • Page 74 All manuals and user guides at all-guides.com RESET_DVDO (open) R120 0 DMD_SDA (open) R121 0 DMD_SCL +3VA +3VA +5VA MCURESET BSN20 +5VA BSN20 BSN20 +5VA 4.7K_RP BSN20 RESET_DVDO DVRESET DEINTDONE SDA_5V DI_ SDA DVSDA SCL_5V DI_ SCL DVSCL +5VA DEI NTDONE LED0 VSYNC PRMODE0...
  • Page 75 All manuals and user guides at all-guides.com MEM_DQ[0..79] RED -- D_INA[23..16] GREEN -- D_INA[15..8] BLUE -- D_INA[7..0] D_INA[0..23] D_INA[0..23] CPU_D[0..7] CPU_D[0..7] +3VA +3VA LEFT EDGE BOTTOM EDGE RIGHT EDGE +3VA +3VA +1_8V VDP01 +1_8V VDP01 VDP01 +1_8V D_INA12 CP U_D0 CP U_D1 MEM_DQ22 D_INA12...
  • Page 76 +3VS All manuals and user guides at all-guides.com R114 R115 5.1K 5.1K AT24C16 RESET_N RESET_N CPU_D[0..7] PIO1 CPU_D[0..7] CP U_D0 CP U_D1 CP U_D2 R122 0 FAN_CTRL +3VS CP U_D3 R123 0 DMD_SCL CP U_D4 DMD_SDA CP U_D5 CP U_D6 +3VS CP U_D7 NC_R0603...
  • Page 77 All manuals and user guides at all-guides.com +3VS KEYPAD[0..9] RP20 47_RP KEYPAD0 INLTCH1_1 KEYPAD1 INLTCH1_2 KEYPAD2 INLTCH1_3 KEYPAD3 INLTCH1_4 KEYPAD4 INLTCH1_5 KEYPAD5 INLTCH1_6 KEYPAD6 INLTCH1_7 KEYPAD7 INLTCH1_8 IORD0_N RP21 47_RP +3VS +3VS +3VS U14A RP22 47_RP CPU_A3 KEYPAD8 INLTCH2_1 CPU_A3 CPU_A4 IORD0_N KEYPAD9...
  • Page 78 All manuals and user guides at all-guides.com OP_A[0..23] OP_A23 OP_A22 OP_A21 OP_A20 OP_A19 OP_A18 OP_A17 OP_A16 OP_A15 OP_A14 OP_A13 OP_A12 OP_A11 OP_A10 OP_A9 OP_A8 OP_A7 OP_A6 OP_A5 OP_A4 PIN41, OP_A3 OP_A2 mecha OP_A1 OP_A0 OCLK_OUT OP_ENABLE DMD_SDA DMD_SCL POWER DLPSP R124 +3VS +3VA...
  • Page 79 All manuals and user guides at all-guides.com MEM_DQ[0..79] MEM_DQ[0..79] +3VB_MEM +3VA +3VB_MEM +3VA MEM_DQ16 MEM_DQ31 MEM_DQ0 MEM_DQ15 DQ15 DQ15 VDDQ VSSQ VDDQ VSSQ MEM_DQ17 MEM_DQ30 MEM_DQ1 MEM_DQ14 DQ14 DQ14 MEM_DQ18 MEM_DQ29 MEM_DQ2 MEM_DQ13 DQ13 DQ13 VSSQ VDDQ VSSQ VDDQ MEM_DQ19 MEM_DQ28 MEM_DQ3 MEM_DQ12...
  • Page 80 All manuals and user guides at all-guides.com VOUT_BV[7..0] VOUT_GY[7..0] VOUT_RU[7..0] LAMPLITZ VOUT_RU7 VOUT_RU6 LAMPD VOUT_RU5 VOUT_RU4 MMBT2222AWT1 VOUT_RU3 VOUT_RU2 MMBT2222AWT1 VOUT_RU1 VOUT_RU0 VOUT_GY7 VOUT_GY6 VOUT_GY5 VOUT_GY4 VOUT_GY3 VOUT_GY2 VOUT_GY1 VOUT_GY0 R126 VOUT_BV7 VOUT_BV6 VOUT_BV5 VOUT_BV4 R124 RESETZ VOUT_BV3 VOUT_BV2 R112 LAMPEN VOUT_BV1 VOUT_BV0...
  • Page 81 All manuals and user guides at all-guides.com FLDATA[0..15] P3P3V DDP1010 FLADDR[0..18] FLDATA0 AG26 FLDATA0 FLADDR19 FLDATA1 FLADDR18 FLAD AH26 FLDATA1 FLADDR18 FLDATA2 FLADDR17 FLAD AJ26 FLDATA2 FLADDR17 FLDATA3 FLADDR16 FLAD AF25 FLDATA3 FLADDR16 FLDATA4 FLADDR15 FLAD AG25 FLDATA4 FLADDR15 FLDATA5 FLADDR14 FLAD AJ25...
  • Page 82 All manuals and user guides at all-guides.com TP42 DDP1010 VOUT_GY[7..0] VOUT_GY7 VOUT_GY6 DDAP15 DDAP15 VOUT_GY5 DDAP14 DDAP14 VOUT_GY4 DDAP13 DDAP13 VOUT_GY3 DDAP12 Video Inputs From Scalar DDAP12 VOUT_GY2 DDAP11 DDAP11 VOUT_GY1 DDAP10 RGB 888 Format (24bits) DDAP10 VOUT_GY0 DDAP9 DDAP9 DDAP8 DDAP8 DDAP7...
  • Page 83 VTERM (1.8V) Bulk Decoupling Caps All manuals and user guides at all-guides.com C207 C208 C209 C210 C211 0.1U Z 0.1U Z 0.1U Z 0.1U Z 0.1U Z DDP3P3V R109 3.4KF MIC39100-1.8BS C218 C219 C220 C221 C222 R110 0.1U Z 0.1U Z 0.1U Z 0.1U Z 0.1U Z...
  • Page 84 All manuals and user guides at all-guides.com Screw Holes Screw Holes HOLE-V8 HOLE-V8 HOLE-V8 HOLE-V8 HOLE-V8 HOLE-V8 HOLE-V8 HOLE-V8 DDP3P3V U 2D DDP1 C119 0.1U Z AE20 VCC33 C120 0.1U Z AE19 VCC33 C121 0.1U Z AE18 VCC33 C122 0.1U Z AE12 VCC33 C123 0.1U Z...
  • Page 85 All manuals and user guides at all-guides.com 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U 0.1U MUSTANG DDAP[15..0] DDAN[15..0] P3P3V...
  • Page 86 All manuals and user guides at all-guides.com P3P3V TP13 TP14 TP18 TP16 TP15 RST15 MBRST15 SCP_CLK SCP_CLK OUT15 RST14 MBRST14 SCP_DO SCPDI OUT14 RST13 MBRST13 SCP_DI SCPDO OUT13 RST12 MBRST12 DADSELZ SCPENZ OUT12 RST11 MBRST11 OUT11 RST10 MBRST10 SR16STROBE STORBE OUT10 RST9 MBRST9...
  • Page 87 All manuals and user guides at all-guides.com P12V SSI_VDD 120 OHM 1U Z 4.7U Z 1U Z 1U Z 4.7U Z P12V_P 0.1U Z 0.1U Z 0.1U Z 0.1U Z 0.1U Z 0.1U Z (0805) (1206) (0805) (0805) (1210) BAT54SW BAT54SW (1/8W) PUMPN2...
  • Page 88 All manuals and user guides at all-guides.com +5VA +3VA +3VA +5VA +V_DAC OP_A[0..23] OP_A16 IN_OP_A16 OP_A17 IN_OP_A17 OP_A18 IN_OP_A18 OP_A19 IN_OP_A19 OP_A20 IN_OP_A20 OP_A21 IN_OP_A21 OP_A22 IN_OP_A22 OP_A23 IN_OP_A23 RST_DAC R4 560 +V_DAC 0.1U Z VREF VREF COMP COMP 0.1U Z OP_A8 IN_OP_A8 OUT_R...
  • Page 89 All manuals and user guides at all-guides.com OP_A[0..23] OP_A23 OP_A22 OP_A23 OP_A21 OP_A20 OP_A21 OP_A19 OP_A18 OP_A19 OP_A17 OP_A16 OP_A17 OP_A15 OP_A14 OP_A15 OP_A13 OP_A12 OP_A13 OP_A11 OP_A10 OP_A11 OP_A9 OP_A8 OP_A9 OP_A7 OP_A6 OP_A7 OP_A5 OP_A4 OP_A5 OP_A3 OP_A2 OP_A3 OP_A1 OP_A0...
  • Page 90 All manuals and user guides at all-guides.com 120-Pin B2B Connectors Graphics_ADC_AD9883 D_INA[0..23] D_INA[0..23] D_INA[0..23] D _VSYNC D_VSYNC D_VSYNC D_HSY NC D_HSYNC D_HSYNC Y / R DIN_CLK DIN_CLK DIN_CLK PB/G PB/G PR/B PR/B DVI_PDO DVI_PDO VSYNC VSYNC HSYNC H SYNC +5V_AD +3VD +3VD +5V_AD...
  • Page 91 All manuals and user guides at all-guides.com -5V_RGB -5V_RGB C135 +5V_AD 10UF/16 CAPP+ CAP+ CAPP- CAP- VOUT 0.1UF 0.1UF 0.1UF +5V_AD ICL7660A C136 L_Y_G 10UF/16 L_Pb BAV99 BAV99 BAV99 L_Pr +5V_AD 10UF/16 CAP+ CAP+ CAP- CAP- VOUT 0.1UF 0.1UF 0.1UF R112 18 Y_ Y_G Yp YcG...
  • Page 92 All manuals and user guides at all-guides.com 42 OHM +5V_AD 42 OHM BAV99 RCA-JACK +5V_AD L41 42 OHM +5V_AD OUT_COMP COMPOSITE (open) FCB3216K C144 BAV99 BAV99 BAV99 C143 0.1UF 0.1UF (open) BAV99 +5V_AD ERRORON1 ERROR OU T_YY SVIDEO_Y FCB3216K (open) C145 C146 0.1UF...
  • Page 93 All manuals and user guides at all-guides.com TP10 (open) (open) (open) (open) TP12 TP14 TP16 TP11 C N1 C N2 C N3 C N4 TP13 TP15 LP1 120 OHM D_ INA8 D_ INA9 D_INA10 D_INA11 D_INA12 D_INA13 D_INA14 D_INA15 LP2 120 OHM LP4 120 OHM AD_R0 D_INA16...
  • Page 94 All manuals and user guides at all-guides.com TP31 TP32 TP33 TP34 SY IN S_Y IN 47NF INT_A TP35 RESET TP36 RTS0 LLC2 TP37 TP38 RTS1 TP39 TP40 TP41 TP42 S_CIN 47NF AI11 XRDY AI12 XRDY AI13 AI1C XCLK AI14 XCLK 47NF AI1D XPD0...
  • Page 95 All manuals and user guides at all-guides.com +12VA VOUT_TRIGGER +12VA +5VS VCC_IR PICOFUSE 69.42001.021 FCB3216K C114 10UF/25 Si4431DY C115 84.04431.037 C117 C118 C119 10UF/25 0.1UF 4.7UF/16 0.1UF VOUT TRIGGER TRIG 2N3904 TRIGGER 1:TURN ON FCB3216K FM6038TM2 0:TURN OFF 2N3904 +5VS 20.D0049.103 +5VS +5VS...
  • Page 96 All manuals and user guides at all-guides.com DI_IN[2..9] D_INA[0..23] Optical Po DVI_SCDT TRIGGER MUX_SEL_P CPU_RXD0 CPU_TXD0 MUX_SEL +5VS MUX_BUFFER +5VS D_HSYNC D_VSYNC C128 DIN_CLK D_INA23 0.1UF D_INA21 D_INA22 D_INA20 D_INA19 D_INA17 D_INA18 D_INA16 D_INA15 D_INA13 D_INA14 D_INA12 D_INA11 D_INA9 D_INA10 D_INA8 D_INA7 D_INA5...
  • Page 97 All manuals and user guides at all-guides.com +5V_AD +3VD R122 4.7K R120 R121 4.7K 4.7K DVI_SCL DVI_SDA DVI_SDA3V BSN20 120 OHM R1 0 DVI_ACTDATA DVI_CLK R2 0 D_VSYNC +3VD 120 OHM R3 0 D_ HSYNC +5V_AD +3VD +5V_AD R103 (open) R105 (open) BAV99...
