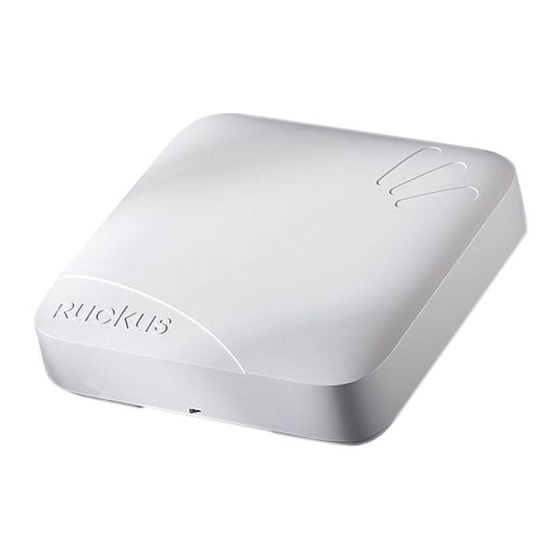

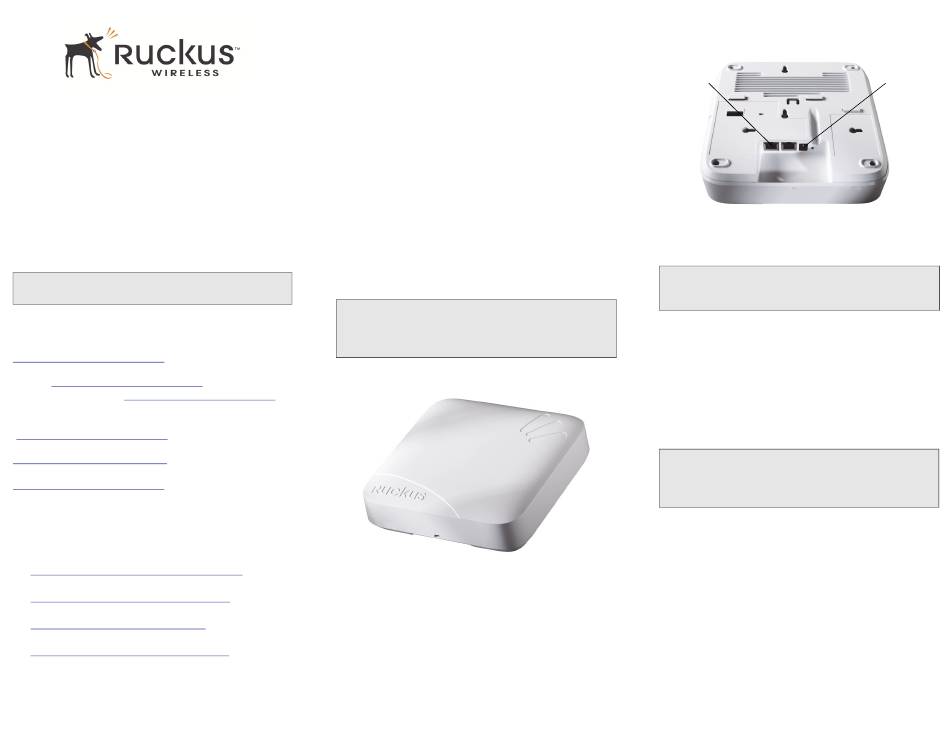

Ruckus Wireless ZoneFlex 7982 Quick Start Manual

ZoneFlex 7982
Dual Band 802.11n
Multimedia Wi-Fi Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless ZoneFlex Access
Point. After completing the steps described in this Guide,
you will be able to place the Access Point (AP) at your site
and provide wireless network access to users.
The ZoneFlex 7982 requires a minimum of Zone-
NOTE:
Flex firmware version 9.4 and above to operate.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
Copyright © 2013 Ruckus Wireless, Inc.
Published June 2013, Part Number 800-70362-001 Rev F
P
ACKAGE
• ZoneFlex 7982 Access Point
• Mounting screws and anchors (2)
• T-Bar clips and alignment spacer
• Regulatory flyer
• This Quick Setup Guide
S R
ETUP EQUIREMENTS
• A computer running Windows 7 (procedures for other OS's
are similar)
• One or more of the following:
• A modem (DSL or cable), broadband router, or other
device provided by your Internet Service Provider
that brings Internet access to your site.
• A network switch or a DSL/Internet gateway device.
• Two Cat 5e Ethernet cables
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
IMPORTANT!
If the AP is deployed with a ZoneDirector, follow the
ZoneDirector Quick Setup Guide and connect the AP to
your local network.
S 1: C
TEP
1 After removing your Ruckus Wireless AP from its pack-
.
age, place it next to your computer.
.
2 Using an Ethernet cable, connect your computer's net-
work port to one of the two ports on the AP.
.
3 Using an AC adapter (sold separately), connect the AP to
a convenient (and protected) power source.
.
• Alternatively, connect the 10/100/1000 POE port to a
PoE injector or switch for both power and network
connectivity.
C
ONTENTS
AP Y C
ONNECT THE TO OUR OMPUTER
4 Verify that the Power LED on the external enclosure is a
steady green.
PoE In
S 2: P Y C
TEP REPARE OUR OMPUTER FOR
S
ETUP
NOTE:
The following procedures assume Windows 7 as the oper-
ating system. Procedures for other OS's are similar.
1 On your Windows 7 computer, configure your network
adapter from the Local Area Connection settings as fol-
lows:
• Start > Control Panel > Network and Sharing Cen-
ter > Change Adapter Settings
2 Edit the TCP/IPv4 address settings as follows:
• Local Area Connection > Properties > Internet
Protocol Version 4 (TCP/IPv4) > Properties
The TCP/IPv4 Properties dialog box appears.
IMPORTANT!
Write down all of the currently active settings so you can
restore your computer to its current configuration later
(when this process is complete).
3 Select Use the following IP address (if it is not already
selected) and then make the following entries:
• IP address: 192.168.0.22 (or any address in the
192.168.0.x network)
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
Leave the DNS server fields empty.
4 Click OK to save your changes.
Your changes are put into effect immediately.
DC input
AP
Page 1 of 4
