Installation and operating instructions

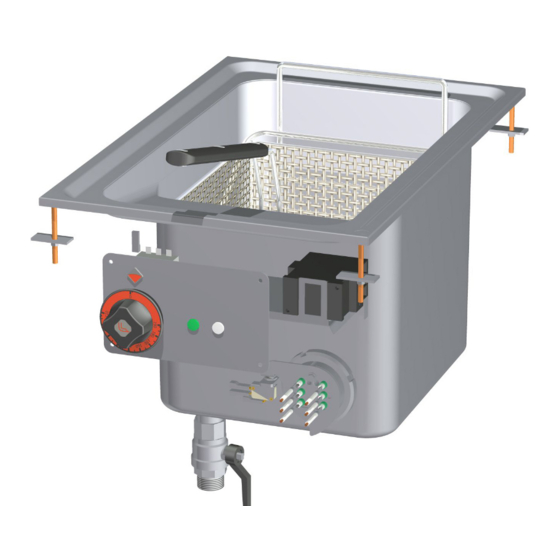

ELECTRIC FRYERS FOR
PROFESSIONAL USE
F10D-64ET F2/10D-66ET F18D-64ET F2/8D-64ET
F23D-66ET
Model LIBR.ISTR.FD POT
Code 563016602
Review 1
Edition date 13/03/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lotus F10D-64ET
Summary of Contents for Lotus F10D-64ET
- Page 1 Installation and operating instructions ELECTRIC FRYERS FOR PROFESSIONAL USE F10D-64ET F2/10D-66ET F18D-64ET F2/8D-64ET F23D-66ET Model LIBR.ISTR.FD POT Code 563016602 Review 1 Edition date 13/03/2020 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020 +39 0438 778277...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation ......................... Electrical/gas connections ......................INSTRUCTIONS FOR USE...................... -
Page 3: Introduction
INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 F10D-64ET , F2/10D-66ET B Electrical connection Translation of the original instructions... - Page 4 INTRODUCTION MODELL F10D-64ET 400mm 200mm 87,5mm F2/10D-66ET 600mm 150mm 37,5mm Translation of the original instructions...
- Page 5 INTRODUCTION FIG. 2 F18D-64ET B Electrical connection Translation of the original instructions...
- Page 6 INTRODUCTION FIG. 3 F2/8D-64ET B Electrical connection Translation of the original instructions...
- Page 7 INTRODUCTION FIG. 4 F23D-66ET B Electrical connection Translation of the original instructions...
-
Page 8: Components
INTRODUCTION Components FIG. B (ROTARY RESISTANCE) 1 O-rings 2 Rotary heating element Translation of the original instructions... - Page 9 INTRODUCTION WIRING DIAGRAM (C) 1 Switch 2 Microswitch 3 Power supply terminal board 4 Power switching terminal block 5 Resistor switching terminal block 6 Heating element 7 White indicator light 8 Green indicator light 9 Contactor 10 Thermostat 11 Safety thermostat Translation of the original instructions...
- Page 10 INTRODUCTION MODELS TERMINAL BOARD 1 F10D-64ET F2/10D-66ET (C) + (C) F18D-64ET F2/8D-64ET (C) + (C) Translation of the original instructions...
- Page 11 INTRODUCTION WIRING DIAGRAM F23D-66ET (D) 1 Switch 2 Microswitch 3 Power supply terminal board 4 Switching terminal board 5 Heating element 6 White indicator light 7 Green indicator light 8 Contactor 9 Thermostat 10 Safety thermostat Translation of the original instructions...
-
Page 12: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 13: User Information, Raee Directive On Waste Electrical And Electronic Equipment
Equipment) are those provided for by the national transpositions of European Directives 2012/19/EU Technical data table Electrical technical data table FD MAXIMUM POWER Silicon POWER MODEL POWER SUPPLY MAXIMUM INPUT (A) (kW) SUPPLY CABLE F10D-64ET 400V~3N 50/60Hz 7,15 10,36 5 x 1,5 mm² F2/10D-66ET 400V~3N 50/60Hz 14,3 20,72 5 x 2,5 mm²... - Page 14 GENERAL INFORMATION DESIGN ASSEMBLY/TRANSFORMATION ELECTRICAL LINKING TERMINAL BLOCK PERNIONS (see technical data table) · POWER SUPPLY CONNECTION · HEATING ELEMENT CONNECTION Translation of the original instructions...
-
Page 15: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 16 INSTALLATION Note The ID plate is located in the compartment inside the door for appliances with compartments, or on the left side for appliances with an oven or a top. A second plate with the model and serial number is located inside the dashboard and a third is included with the certificate of conformity.
- Page 17 INSTALLATION Note The connection cable must have the following characteristics: it must be silicone type (to withstand temperatures of 180 °C), and must have an appropriate cross-section for the power of the appliance (see technical data table). EQUIPOTENTIAL ...
-
Page 18: Instructions For Use
INSTRUCTIONS FOR USE 4 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. -
Page 19: Emptying The Tank
INSTRUCTIONS FOR USE If using the fryer with products other than oil (lard, for example) that have considerable thermal inertia, it is necessary to set the thermostat to a low value (e.g. 110°C) during the first cycle (not starting cold). The thermostat can be set to the maximum only after the entire mass has melted ... -
Page 20: Maintenance
MAINTENANCE 5 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... -
Page 21: Spare Parts
MAINTENANCE Spare parts It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on the type of appliance) or the gas pipes easily and quickly. To replace such parts, proceed as follows: ... -
Page 22: Cleaning
CLEANING 6 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
