MAJORITY Newnham CB3-DAB-WHT User Manual

Dab / dab+ / fm radio
Hide thumbs Also See for Newnham CB3-DAB-WHT:
Table of Contents

Advertisement

Quick Links

Download this manual

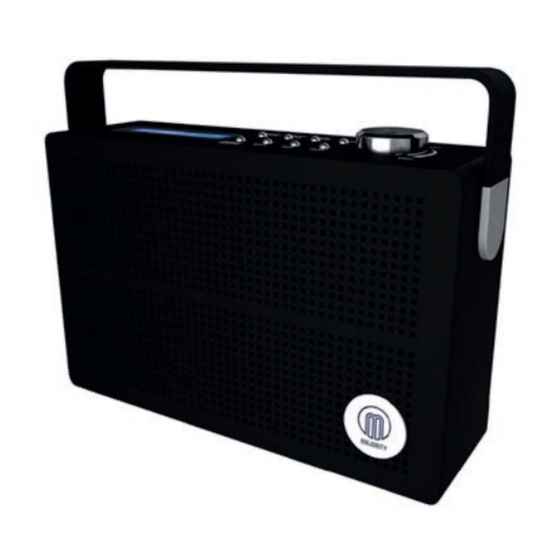

Majority Newnham
DAB / DAB+ / FM Radio
CB3-DAB-WHT/BLK
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Newnham CB3-DAB-WHT and is the answer not in the manual?

Questions and answers

Related Manuals for MAJORITY Newnham CB3-DAB-WHT

Summary of Contents for MAJORITY Newnham CB3-DAB-WHT

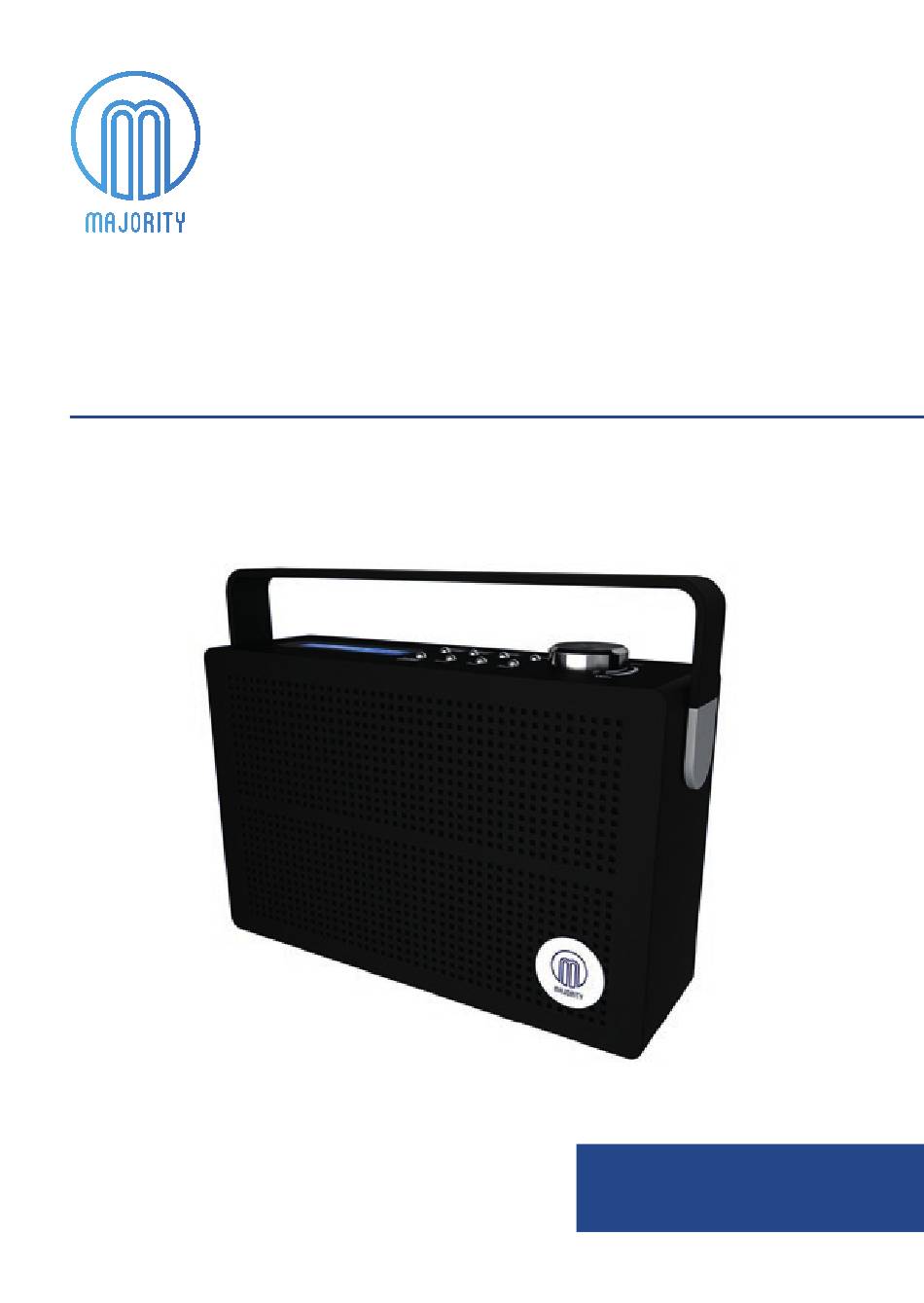

  • Page 1 Majority Newnham DAB / DAB+ / FM Radio CB3-DAB-WHT/BLK User Guide...

  • Page 2: Table Of Contents

    Contents Controls and Functions......1 What’s in the Box? ........2 Instruction Guide .

  • Page 3: Controls And Functions

    Controls and Functions Instructions Guide 1. Power/Source 8. Next 13. Charging Light Indicator 2. Alarm/Sleep 9. Volume +/- 14. 3.5mm 3. Info/Menu 10. Display Screen Headphone 4. Preset 11. On/Off Switch Socket 5. Select/Snooze 12. DC 5V,1A 15. Antenna Power 6.

  • Page 4: What's In The Box

    Instructions Guide What’s in the Box? Majority Newnham DAB / DAB+ Radio Clock ● ● UK Standard Plug DC 5V,1A Power Supply ● User Guide...

  • Page 5: Instruction Guide

    Instructions Guide Please note all (Ref.) refer to the Controls and Functions mapping guide on Page 1. Basic Operation Plug the connector into the back of the system labelled DC 5V (Ref.12) and the power supply into the mains, if the station needs charging.

  • Page 6: Dab Radio And Set Up Preset For Dab Radio

    Instructions Guide Standby To place the system in standby mode, press and hold the ‘Power/Source’ button (Ref.1). To turn off fully, press the button on rear of the unit (Ref.11) and switch off at the mains. The cord must be out of reach of children. DAB / DAB+ Radio Press the ‘Power/Source’...
  • Page 7 Instructions Guide Instructions Guide To listen to all stations that have been stored use the ‘Next’ and ‘Prev’ buttons (Ref.7/8) to scroll through them. Once you have chosen, press ‘Select/Snooze’ button (Ref.5). The radio will display station information when you press the ‘Info/Menu’...

  • Page 8: Fm Radio And Set Up Preset For Fm Radio

    Instructions Guide FM Radio Press the ‘Power/Source’ button (Ref.1) multiple times to switch to FM. The first time you do this FM frequency “87.5 MHz” will be displayed on the screen. Fully extend the antenna (Ref.15). To auto scan, press and release the ‘Scan’ button (Ref.6). This will then start scanning up the frequency band and play the first station it finds with a good signal.
  • Page 9 Instructions Guide How to set Mono or Stereo Press the ‘Select/Snooze’ button (Ref.5) multiple times to change between Mono and Stereo. The receiver will automatically switch between Stereo and Mono You can, however, override this using the above instructions. How to store a preset radio station Up to 10 preset stations can be set.

  • Page 10: Station Information For Dab And Fm Radio

    Instructions Guide Station Information for DAB and FM Radio DAB / DAB+ Radio Press the ‘Info/Menu’ button (Ref.3) repeatedly to show the different programme information. Bit Rate: Shows the data rate at which the signal is being transmitted. Bit Error Rate (BER): Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency.
  • Page 11 Instructions Guide FM Radio Press the ‘Info/Menu’ button (Ref.3) repeatedly to show the different programme information. Signal Strength: Displays a signal bar with the strength of the current station. Time and Date: Displays the time and the date. Frequency: Displays the station’s transmission frequency. Audio Type: Displays the audio type of the station you are listening to.

  • Page 12: Clock And Date Setting

    Instructions Guide Clock and Date Setting Manually Setting the Time Ensure the unit is in working mode. The time will automatically update after the first time of using DAB Radio, but you can still set the time manually as follows: Press and hold the ‘Info/Menu’...
  • Page 13 Instructions Guide Manually Setting the Date The date can be changed straight after changing the time. The year will flash on the display screen. Press the ‘Prev’ (Ref.7) or ‘Next’ (Ref.8) buttons until the required year is displayed. To confirm the year, press the ‘Select/Snooze’ button (Ref.5). The month will then flash on the display screen.

  • Page 14: Dual Alarm Setting

    Instructions Guide Dual Alarm Setting Alarm 1/Alarm 2 Setting Press (do not hold) the ‘Alarm/Sleep’ button (Ref.5) and “Alarm 1” will be displayed. Press twice for “Alarm 2”. Press the ‘Select/Snooze’ button (Ref.5) to use Alarm 1. To turn the Alarm on, press the ‘Next’ button (Ref.8) so that “ON”...

  • Page 15: Alarm Sound And Snooze

    Instructions Guide To Turn off Alarm 1 or Alarm 2 Press the ‘Alarm/Sleep’ button (Ref.2) and “Alarm 1” will be displayed. Choose which alarm you would like to turn off using the ‘Next’ (Ref.8) button. Press the ‘Select/Snooze’ (Ref.5) button to confirm. To turn the alarm off, press the ‘Next’...

  • Page 16: Other Functions

    Instructions Guide Other Functions Sleep Setting This enables you to programme the radio to switch off at a selection of set times up to 120 minutes from activation. Press and hold the ‘Alarm/Sleep’ button (Ref.2) for 1 second and release. Using the ‘Prev/Next’...
  • Page 17 Instructions Guide System Reset Press and hold the ‘Info/Menu’ button (Ref.3). Use the ‘Prev/Next’ buttons (Ref.7/8) to make your selection Choose “Factory Reset” and press the ‘Select/Snooze’ button (Ref.5). The display screen will show “Factory Reset Yes or No?” Use the ‘Next’ button (Ref.8) to choose between “Yes” and “No”. Press the ‘Select/Snooze’...
  • Page 18 Instructions Guide Play Time Your radio has a play time of around 4-6 hours. To charge it, plug your radio into the mains with the power adapter provided. Charging The unit will charge in standby and working mode if it is connected to the mains.

  • Page 19: Technical Specification

    Technical Specifications and Warranty Technical Specifications Power Supply In-built Battery FM (87.5MHz – 108MHz) DAB / Mode DAB+ (174 -240 MHz) Output Connector 3.5mm Earphone Socket Aerial Integral Telescopic Aerial Warranty All products come with a standard 12 month warranty. All items must be registered on www.majorityradios.co.uk for the warranty to be valid.

  • Page 20: Troubleshooting Guide

    Troubleshooting Guide Observation Potential cause/solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low.

  • Page 21: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1. Read these instructions. ADDITIONAL WARNINGS 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at splashing and no objects filled with liquid, such as www.majorityradios.co.uk vases, shall be placed on apparatus. 3.
  • Page 24 www.majorityradios.co.uk...

This manual is also suitable for:

Newnham cb3-dab-blk
