MAJORITY Kite User Manual

MAJORITY Kite User Manual

Pocket dab / dab plus / fm radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

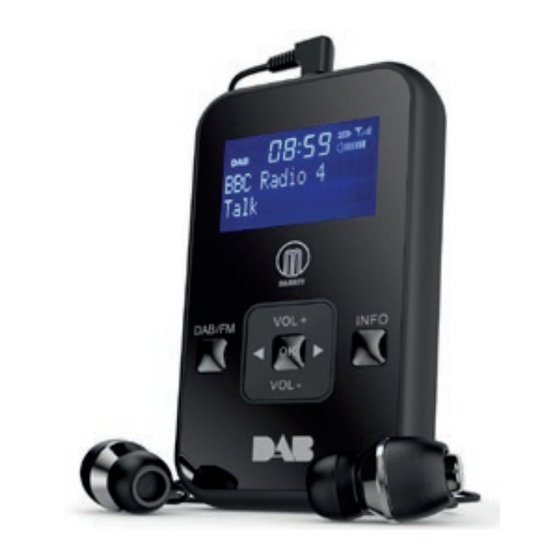

Majority Kite
Pocket DAB / DAB+ / FM Radio
CB1-DAB-BLK
User Guide

Advertisement

Table of Contents
loading

Related Manuals for MAJORITY Kite

Summary of Contents for MAJORITY Kite

  • Page 1 Majority Kite Pocket DAB / DAB+ / FM Radio CB1-DAB-BLK User Guide...

  • Page 2: Table Of Contents

    Contents Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 What’s in the Box? .

  • Page 3: Controls And Functions

    Controls and Functions 1 . Mode DAB/FM 6 . Next 10 . Earphone jack 2 . Previous 7 . Ok/Confirm/ 11 . Battery Preset Compartment 3 . Volume – 8 . Lock 12 . Display Screen 4 . Volume + 9 .

  • Page 4: What's In The Box

    What's in the Box? Majority Kite Pocket DAB DAB+ /FM Radio ● Earphones ● User Guide ●...

  • Page 5: Instruction Guide

    Instructions Guide Please note all (Ref.) refer to the Controls and Functions mapping guide on Page 1 . Basic Operation This portable radio is powered by 3 AAA batteries (not supplied) . See Power Source Page 15 . Turn on the power supply by switching the ‘ON/OFF’ button (Ref .9) on the side of the system to the ‘ON’...

  • Page 6: Manual Tuning And Set Up Preset For Dab Radio

    Instructions Guide DAB / DAB+ Radio Press the ‘Mode DAB/FM’ button (Ref .1) . On first use, DAB Radio will automatically start scanning all stations and save them . To scan (if the unit hasn’t automatically done so, or shows no signal) press and hold the ‘Info’...
  • Page 7 Instructions Guide Prune To remove stations which are listed but have become unavailable: Find the station you would like to remove . Press and hold the ‘Info’ button (Ref .5) . Use the ‘Next’ (Ref .6) and ‘Previous’ (Ref .2) buttons to navigate through the choices . Choose ‘Prune’...

  • Page 8: Manual Tuning

    Instructions Guide Manual Tuning As well as an auto tune function, you can manually tune the receiver . This can help you when aligning your aerial or when adding stations that were missed while auto tuning . Press and hold the ‘Info’ button (Ref .5), use the ‘Next’ (Ref .6) and ‘Previous’...
  • Page 9 Instructions Guide How to play a preset radio station Once you have stored all your selected stations, press and hold the ‘Ok’ button (Ref .7) . Use ‘Previous’ or “Next ‘ to scroll through your options and select “Preset Recall” by pressing the ‘Ok’ button (Ref .7) . Use the ‘Previous’...

  • Page 10: Fm Radio And Set Up Preset For Fm Radio

    Instructions Guide FM Radio Press the ‘Mode DAB/FM’ button (Ref .1) . The first time you do this FM frequency “87 .5 MHz” will be displayed on the screen . To auto scan, press and hold the ‘Previous’ button (Ref .2) and then release .
  • Page 11 Instructions Guide Mono and Auto In working mode, press and hold the ‘Info’ button (Ref .5) . Use the ‘Previous’ button (Ref .2) to highlight your option . Choose “Audio Setting” and press the ‘Ok’ button (Ref .7) . The display will show “Stereo Allowed” or “Forced Mono” . Use the ‘Next’...
  • Page 12 Instructions Guide How to play a preset radio station Once you have stored all your selected stations you can press and hold the ‘Ok’ button (Ref .7), then select “Preset Recall” by pressing the ‘Ok’ button (Ref .7) . Use the ‘Previous’ (Ref .2) or ‘Next’ (Ref .6) buttons to scroll through your preset stations, up to 10 .

  • Page 13: Station Information For Dab And Fm Radio

    Instructions Guide Station Information for DAB / DAB+ and FM Radio DAB / DAB+ Radio Press the ‘Info/Menu’ button (Ref .5) repeatedly to show the programme information . Bit Rate: Shows the data rate at which the signal is being transmitted . Bit Error Rate (BER): Provides details of the signal error rate .
  • Page 14 Instructions Guide FM Radio Press the ‘Info/Menu’ button (Ref .5) repeatedly to show the programme information . Signal Strength: Displays a signal bar with the signal strength of the current station . Time and Date: Displays the time and the date . Frequency: Displays the station’s transmission frequency .

  • Page 15: Other Functions

    Instructions Guide Other Functions System Reset Press and hold the ‘Info’ button (Ref .5) . Use the ‘Previous’ (Ref .2) or ‘Next’ (Ref .6) buttons to scroll through the options . Choose “System” then press the ‘Ok’ button (Ref .7) . Use the ‘Previous’...

  • Page 16: Time And Date

    Instructions Guide Display Press the ‘Info/Menu’ button (Ref .5) multiple times to display: Radio Data System (RDS) radio text, Programme type, Station name, Mono/Stereo, Time and Date . Time and Date On first use of DAB Radio, the time and date will automatically update . Info Button Use the ‘Info’...
  • Page 17 Instructions Guide Power Source This portable radio is powered by 3 AAA batteries (not included) . To open the battery compartment (Ref .11), put your fingers on the upper part of the open symbol, press down and pull the door out of the lock .

  • Page 18: Technical Specification

    Technical Specifications and Warranty Technical Specifications Power Supply DC4 .5V (3 AAA) Radio frequency range FM 87 .5MHz DAB/DAB+ 174-240MHz Warranty All products come with a standard 12 month warranty . All items must be registered on www.majoritytech.co.uk for the warranty to be valid .

  • Page 19: Important Safety Information

    IMPORTANT SAFETY INFORMATION ADDITIONAL WARNINGS 1 . Read these instructions . 2. Keep these instructions . Instructions are also The apparatus shall not be exposed to dripping available for download at or splashing and no objects filled with liquid, www.majoritytech.co.uk such as vases, shall be placed on apparatus .
  • Page 20 www.majorityradios.co.uk...
