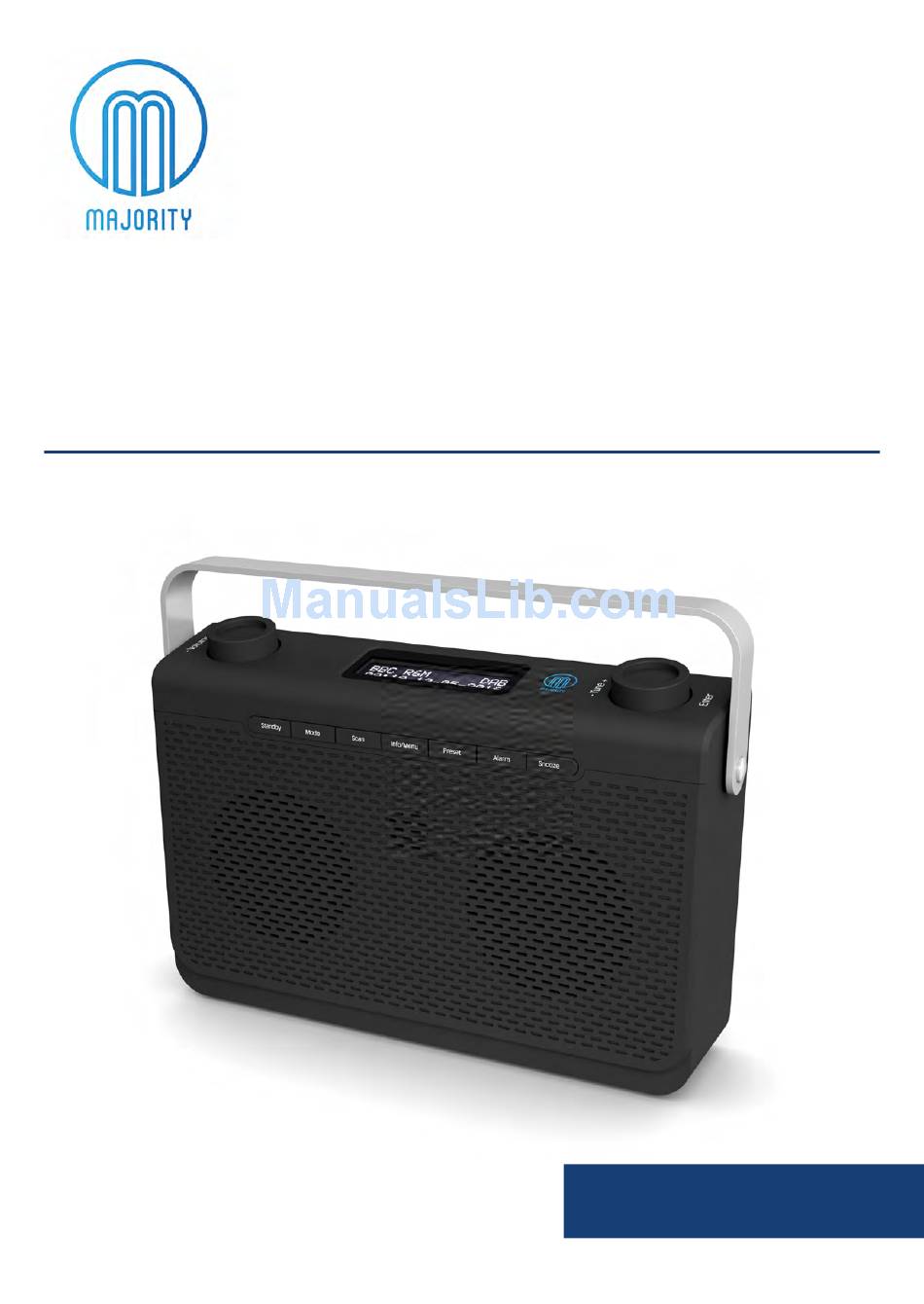

- Page 1 Majority Comberton DAB / DAB+ / FM Radio COM-DAB-BLK User Guide...
-
Page 2: Table Of Contents
Contents Controls And Functions ���������������������������������������������� What’s In The Box? ���������������������������������������������������� Instructions Guide ���������������������������������������������������� Basic Operation �������������������������������������������������������� DAB / DAB+ Radio ����������������������������������������������������� How to store and recall a preset DAB station ����������� FM Radio ������������������������������������������������������������������� Station information for DAB/DAB+ and FM Radio �� Clock and Date Settings �������������������������������������������... -
Page 3: Controls And Functions
Controls And Functions Front View Volume -/+ Preset Standby Alarm Mode Snooze Scan Tune +/-/Enter Info/Menu... -
Page 4: Rear View
Controls And Functions Rear View 10. ON/OF 11. USB Power Supply Port 12. Earphone Jack 13. Antenna 14. Battery Compartment 15. Display Screen... -
Page 5: What's In The Box
What’s In The Box? 1. Majority Comberton DAB / DAB+ / FM / Radio Clock 2. UK Standard Plug DC 5V, 2A Power Supply 3. User Guide... -
Page 6: Instructions Guide
Instructions Guide Instructions Guide Basic Operation Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide. Plug the connector into the back of the system labelled USB (Ref.11) and the power supply into the mains. Ensure the antenna (Ref.13) is extended as far as possible so that you can rotate it. -
Page 7: Dab / Dab+ Radio
Instructions Guide DAB / DAB+ Radio Press the ‘Mode’ button (Ref.3) to switch to DAB Radio. On first use it will automatically scan all stations and save them. Fully extend the antenna (Ref.13). To auto scan, press the ‘Scan’ button (Ref.4) and then release. This will start scanning up the frequency band and store all stations that have good signal. -
Page 8: How To Store And Recall A Preset Dab Station
Instructions Guide How to store and recall a preset DAB station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.6). “<1: (Empty)” will show on the display. Twist the ‘Tune +/-/Enter’... -
Page 9: Fm Radio
Instructions Guide FM Radio Press the ‘Mode’ button (Ref.3) multiple times to switch between DAB and FM. The first time you do this, the FM frequency “87.5 MHz” will be displayed on the screen. Fully extend the antenna (Ref.13). To auto scan, press and release the ‘Scan’ button (Ref.4). This will then start scanning up the frequency band and play the first station it finds with good signal. - Page 10 Instructions Guide FM Scan Setting Choose between scanning strong and weak signals (All) or only the strong stations (Only). Press and hold the ‘Info/Menu’ button (Ref.5).To make your choice, twist the ‘Tune +/-/Enter’ dial (Ref.9) to highlight your option. Select “FM Scan Setting” and press ‘Tune +/-/Enter’ dial (Ref.9) down.
- Page 11 Instructions Guide How to store a preset radio station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.6). “<1: (Empty)” will show on the display. Twist the ‘Tune +/-/Enter’ dial (Ref.9) to change the “<1” to the number you want to store the station as.
-
Page 12: Station Information For Dab/Dab+ And Fm Radio
Instructions Guide Station information for DAB/DAB+ and FM Radio DAB/DAB+ Radio Press the ‘Info/Menu’ button (Ref.5) repeatedly to show the different programme information. Signal Strength: Displays a signal bar with the strength of the current station. Bit Error Rate: Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency. - Page 13 Instructions Guide Station information for FM Radio FM Radio Press the ‘Menu/Info’ button (Ref.5) repeatedly to show the different programme information. Programme Type: Displays a description of the type of programme provided by the broadcaster. Signal Strength: Displays a signal bar with the strength of the current station.
-
Page 14: Clock And Date Settings
Instructions Guide Clock and Date Settings Manually Setting the time The time will automatically update after the first use of DAB Radio. However, you can still set the time manually. Ensure the unit is turned on. To make your selection, twist the ‘Tune +/-/Enter’ dial (Ref.9) to choose your option. - Page 15 Instructions Guide Manually Setting the Date The date can be changed after changing the time. The year will flash on the display screen. Twist the ‘Tune +/-/ Enter’ dial (Ref.9) until the required year is displayed. To confirm the year, press the ‘Tune +/-/Enter’ dial (Ref.9). The month will flash on the display screen.
-
Page 16: Dual Alarm Setting
Instructions Guide Dual Alarm Setting Press the ‘Alarm’ button (Ref.7) once for Alarm 1 or twice for Alarm 2. Press the ‘Tune +/-/Enter’ dial (Ref.9) to confirm. To turn the alarm on or off, twist the ‘Tune +/-/Enter’ dial (Ref.9) so that “ON”... -
Page 17: Alarm Sounds And Snooze
Instructions Guide To turn off Alarm 1 or Alarm 2 Press the ‘Alarm’ button (Ref.7) once for Alarm 1 or twice for Alarm 2. Press the ‘Tune +/-/Enter’ dial (Ref.9) to confirm. To turn the Alarm on or off, twist ‘Tune +/-/Enter’ dial (Ref.9) so that “OFF”... -
Page 18: Other Functions
Instructions Guide Other Functions Sleep setting This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. Press and hold the ‘Alarm’ button (Ref.7). Choose from 120/90/60/45/30/15/5 mins or OFF using ‘Tune +/-/ Enter’... -
Page 19: System Reset
Instructions Guide Other Functions System Reset Press and hold the ‘Info/Menu’ button (Ref.5). Twist the ‘Tune +/-/Enter’ dial (Ref.9) to highlight “Factory reset” and press the ‘Tune +/-/Enter’ dial (Ref.9). The display screen will show “Factory reset”. Use the ‘Tune +/-/Enter’ dial (Ref.9) dial to choose “Yes” or “No”. Press the ‘Tune +/-/Enter’... -
Page 20: Technical Specifications
Instructions Guide Technical Specifications Power Supply In-built Battery Mode: FM(87. 5 MHz – 108MHz) DAB / DAB+ 174-240MHz Output Connector: Earphone jack Aerial: Integral telescopic aerial Power Supply and Batteries The unit is powered and charged by UK Standard Plug DC 5v. The unit is also portable when powered by 4 x C Batteries (Not Supplied). -
Page 21: Troubleshooting Guide
Troubleshooting Guide Observation Potential Cause/Solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low. -
Page 22: Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 24 www.majorityradios.co.uk...
