MAJORITY Madingley Hall CB23-DAB-WHT/BLK User Manual

Bedside
Hide thumbs
Table of Contents

Advertisement

Quick Links

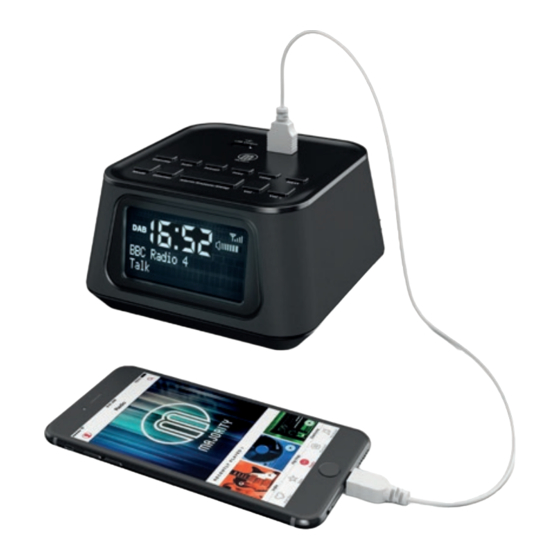

Majority Madingley Hall
Bedside DAB Radio
CB23-DAB-WHT/BLK
User Guide

Advertisement

Table of Contents
loading

Related Manuals for MAJORITY Madingley Hall CB23-DAB-WHT/BLK

Summary of Contents for MAJORITY Madingley Hall CB23-DAB-WHT/BLK

  • Page 1 Majority Madingley Hall Bedside DAB Radio CB23-DAB-WHT/BLK User Guide...

  • Page 2: Table Of Contents

    Contents Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 What’s in the Box? .

  • Page 3: Controls And Functions

    Controls and Functions Instructions Guide 1 . LCD Display 3 . DC 9v jack – 4 . Power On/Off wall plug 2 . Aux-In jack...
  • Page 4 Controls and Functions 5 . USB Ports 10 . Volume Down 15 . Enter 6 . Preset 11 . Volume Up 16 . Next/Forward 7 . Mode 12 . Standby/ 17 . Antenna Dimmer 8 . Info 13 . Scan 9 .

  • Page 5: What's In The Box

    What’s in the Box? Majority Madingley Hall DAB Radio Clock ● UK Standard Plug DC 9v Power Supply ● User Guide ●...

  • Page 6: Instruction Guide

    Instructions Guide Please note all (Ref.) refer to the Controls and Functions mapping guide on Page 1 . Basic Operation Plug the connector into the back of the system labelled DC IN (Ref .3) and the power supply into the mains . Power Supply ‘ON/OFF’...

  • Page 7: Dab Radio And Set Up Preset For Dab Radio

    Instructions Guide DAB Radio Press and hold the ‘Standby/Dimmer’ button (Ref .12) . Then use the ‘Mode’ button to select “DAB” radio . Fully extend the antenna (Ref .17) . To auto scan, press the ‘Scan’ button (Ref .13) and then release . This will start scanning up the frequency band and store all stations that have a good signal .
  • Page 8 Instructions Guide How to store a preset radio station Up to 10 preset stations can be set . To store a station that you are currently playing: Press and hold the ‘Preset’ button (Ref .6) . Preset “Empty 01” will flash on the display .

  • Page 9: Fm Radio And Set Up Preset For Fm Radio

    Instructions Guide FM Radio Press and hold the ‘Standby/Dimmer’ button (Ref .12) . Then press the ‘Mode’ button (Ref .7) to switch to “FM” . The first time you do this FM frequency “87 .5 MHz” will be displayed on the screen .
  • Page 10 Instructions Guide How to store a preset radio station Press and hold the ‘Preset’ button (Ref .6) . Preset “Empty 01” will flash on the display . Press the ‘Prev’ (Ref .14) or ‘Next’ (Ref .16) buttons to change the “01”...

  • Page 11: Aux-In And Dual Usb Ports

    Instructions Guide Aux-In and Dual USB Ports Aux-In Port You can connect your phone or tablet with an Aux 3 .5mm cable that connects to the Aux-In jack (Ref .2) . Press and hold the ‘Standby/Dimmer’ button (Ref .12) to turn the unit on .

  • Page 12: Clock And Dual Alarm Setting

    Instructions Guide Clock and Dual Alarm Setting Clock The clock will automatically update after the first time of using DAB Radio . Alarm 1/Alarm 2 Setting Ensure the radio is in working mode . Press ‘Alarm/Snooze/Sleep’ button (Ref .9) to set ALARM 1 . Press it twice to set ALARM 2 .

  • Page 13: Alarm Sound And Snooze

    Instructions Guide Alarm Sound and Snooze Alarm Sound If the alarm is set to “DAB+/FM” mode it will play the current DAB+/FM Station . If there is no signal then the alarm will revert to BEEP tone . If two alarms are set, when ALARM 1 is sounding and ALARM 2 begins to sound it will automatically turn off ALARM 1 .

  • Page 14: Other Functions

    Instructions Guide Other Functions Sleep Setting This enables you to programme the radio to switch off at a selection of set times up to 90 minutes from activation . In working mode (listening to DAB/FM Radio), press and hold the ‘Alarm/Snooze/Sleep’ button (Ref .9) for 1 second and release .

  • Page 15: Display Brightness

    Instructions Guide Display Brightness In working mode or standby - change the display brightness by pressing the ‘Standby/Dimmer’ button (Ref .12) . Do not hold . To adjust the screen brightness, press multiple times to view the different levels of brightness . System Reset In working mode, press and hold the ‘Mode’...

  • Page 16: Technical Specification

    Technical Specifications and Warranty Technical Specifications Power Supply 100-240V AC INPUT DC OUTPUT 5V/2 .5A Mode DAB/DAB+ (BAND III 5A-13F) FM 87 .5MHz Aux-in Output Power 1 .5W X 2 Standby Mode Show Clock Black background white fonts, negative LCD Warranty All products come with a standard 12 month warranty .

  • Page 17: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1 . Read these instructions . ADDITIONAL WARNINGS 2 . Keep these instructions . Instructions are also The apparatus shall not be exposed to dripping or available for download at www .majoritytech . splashing and no objects filled with liquid, such as co .uk vases, shall be placed on apparatus .
  • Page 20 www .majoritytech .co .uk...
