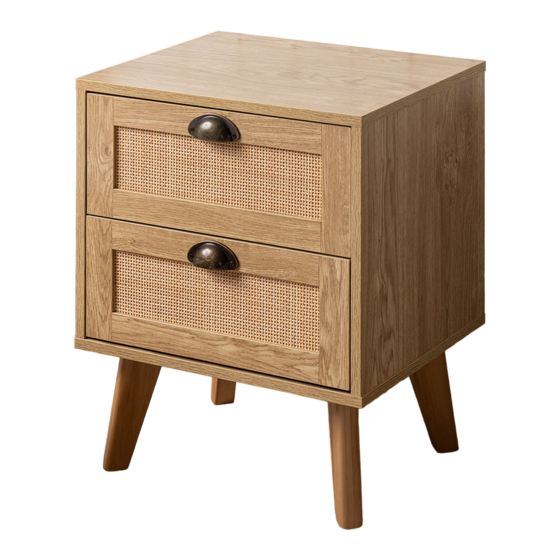

Savannah Two Drawer Bedside
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking nuts
dowel
x12
x12
x4
F
G
large screw
left rail
right rail
x12
x2
K
L
N
plate
screw
0.14 screw
x4
x16
x1
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D
E
small screw
medium screw
x20
x8
H
I
J
screw
handle
x2
x4
x2
P
Q
R
wall strap
washer
wall plug
x1
x2
x1
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Savannah Two Drawer Bedside and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Savannah Two Drawer Bedside

  • Page 1 Phillips & Flathead screwdrivers required. those supplied. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 2 Attach 4 x bolts (A) to panel [1]. Tighten with a screwdriver. Attach 2 x left rails (G) and 2 x right rails (H) to panels [3] and [4] and secure with 12 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 3 Assembly Instructions Attach panels [3] and [4] to panel [1] and secure with 4 x locking nuts Slide panel [5] into position as shown. (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 4 Attach 1 x plate (K) to panel [6] as shown and secure with 2 x screws and 4 x screws (F). Tighten with a screwdriver. (F). Attach panel [6] to panel [2] and secure with 16 x screws (L). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 5 4 x screws (D). Attach 4 x bolts (A) and 1 x handle (J) to Tighten with a screwdriver. panel [7] and secure with 2 x screws (I). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 6 Savannah Two Drawer Bedside Assembly Instructions Slide panel [11] into position as shown. Attach panel [7] to assembled frame and secure with 4 x locking nuts (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 7 1 x wall anchor (R), 1 x wall screw (N) and 1 x washers (Q). Tighten with a screwdriver. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
