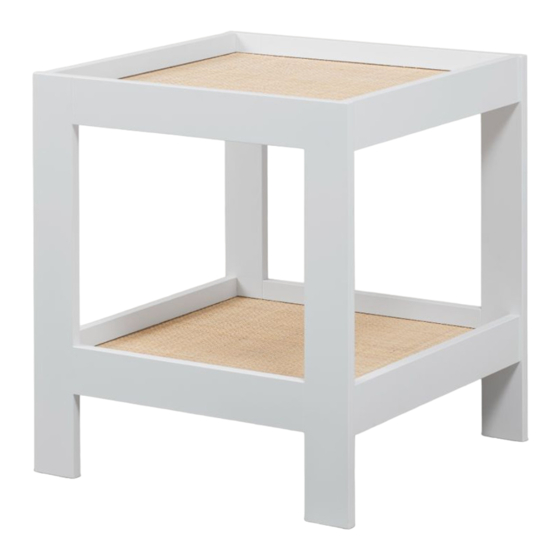

Savannah Side Table - Square
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
bolt
dowel
x8
x8
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
B
C
locking nut
x8
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Savannah Side Table - Square
Summary of Contents for Mocka Savannah Side Table - Square
- Page 1 Please follow the instructions below for correct assembly. bolt dowel locking nut Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Attach 4 x bolts to panel [1] as shown. Tighten with a screwdriver. Attach panels [2] to panel [1] and secure with 4 x dowels (B) and 4 x locking nuts (C). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Slide panels [3] into position as shown. Attach panel [1] to assembled frame and secure with 4 x dowels (B) and 4 x locking nuts (C). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Savannah Side Table - Square Assembly Instructions Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
