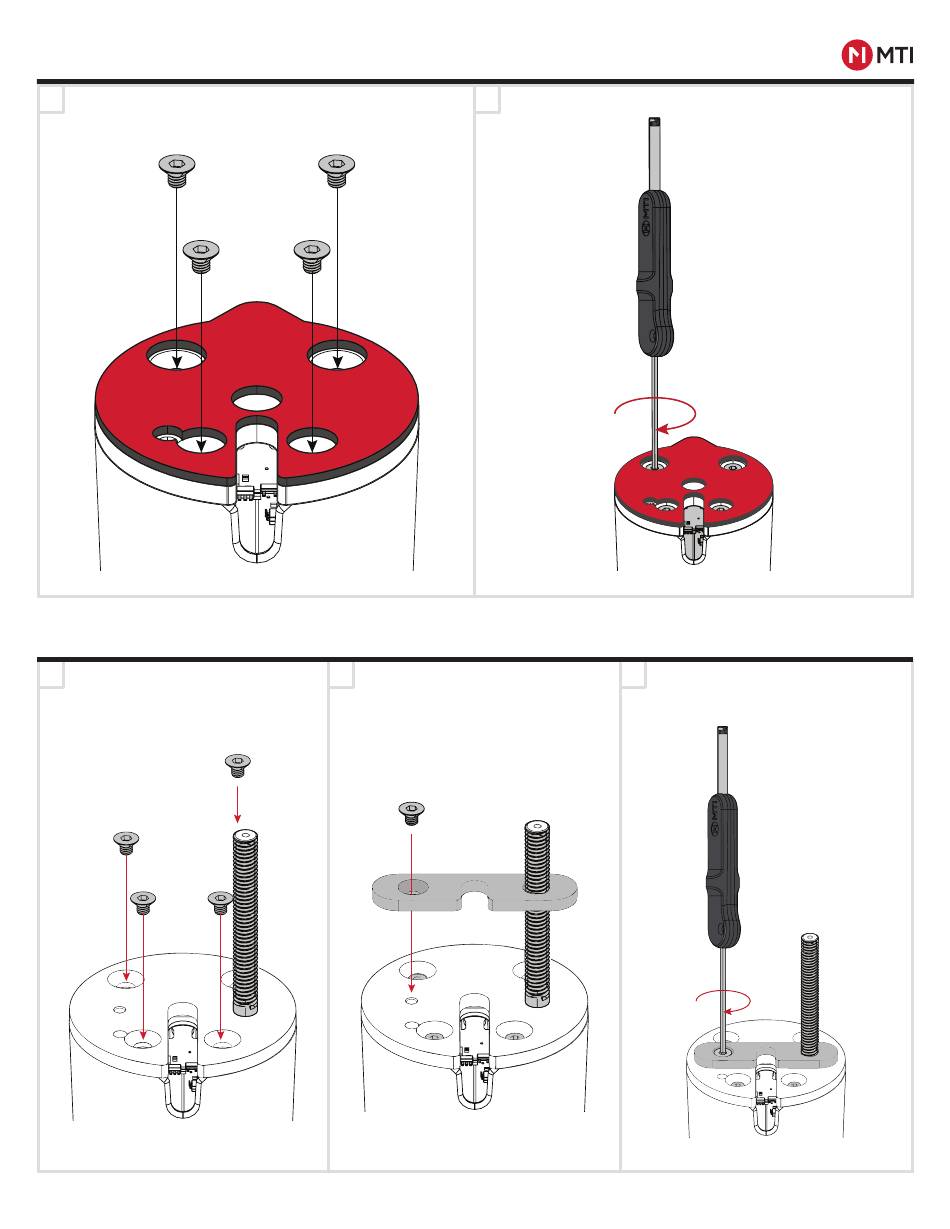

ATTACH BASEPLATE - VHB
1
Align the VHB Baseplate to the bottom of the riser
and insert the 4 included screws into the holes in the
baseplate and riser.
ATTACH BASEPLATE - THROUGH HOLE
1
Align the Through Hole Baseplate
to the bottom of the riser and
secure with four M3 screws.
www.MTIGS.com | T:800.426.6844
-CONTROLLED DOCUMENT-
2
If using the optional slot adapter
plate, attach to baseplate using
two M2.5 screw.
063-00370 A-0 Status: Approved
FREEDOM FOCUS™ PRODUCT MANUAL
2
Secure the baseplate using the MTI Retail Tool.
3
Secure the baseplate using the
MTI Retail Tool.
