Extreme USB USB 3.0 SP3022 Quick Start Manual

USB 3.0 SP3022
2-Port USB 3.0 Multimode
Fiber Extender System
Quick
Start
Guide
Package Contents:

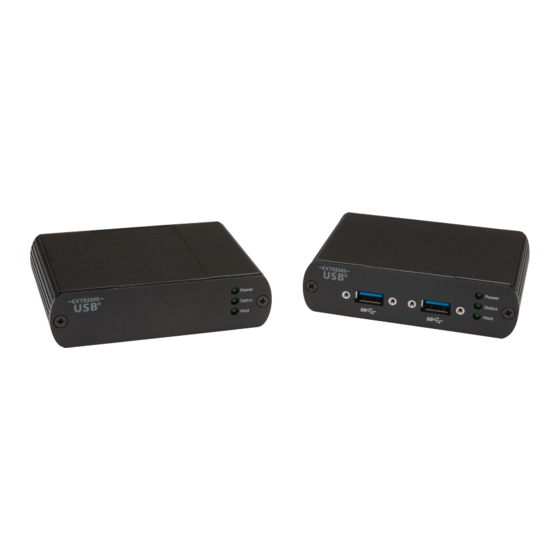

▪ USB 3.0 SP3022 Local Extender
▪ USB 3.0 SP3022 Remote Extender
▪ Locking AC Power Adapter
▪ Country Specific Power Cord
▪ USB 3.0 Cable
▪ Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s)
are installed noting this product does not support USB 1.1 or 2.0 devices.

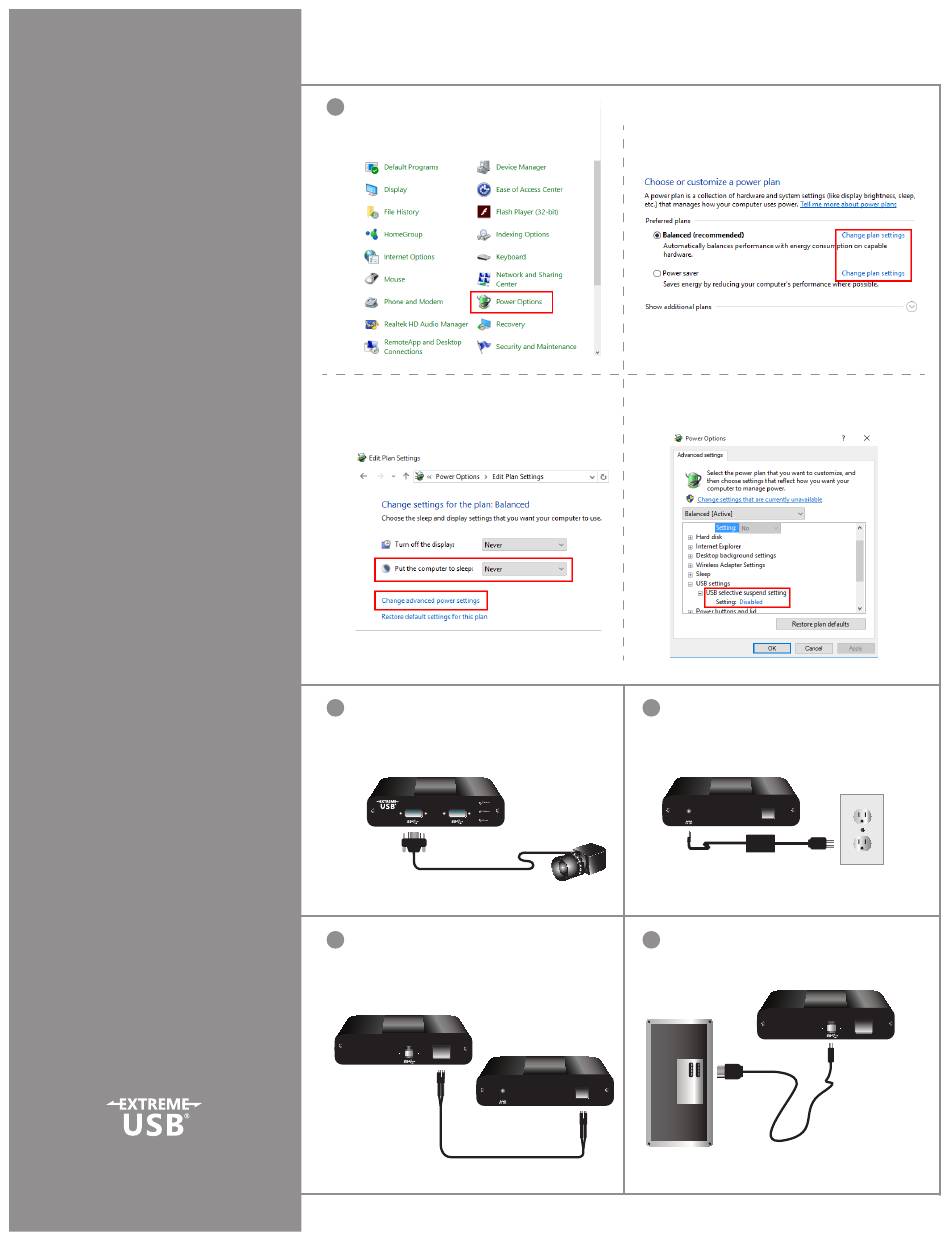

In your computer settings, disable the Suspend feature.
1 1
a) For Windows, open the Control Panel,
then select Power Options.
c) Select Never for Put the computer to sleep
for all the configurations presented. Then
click Change advanced power settings.
For more information and steps to disable your computer' s suspend feature, refer to the SP3022 user guide.
Place the Remote Extender unit where
2
desired and attach the USB 3.0 device(s)
to the Remote Extender.
Remote Extender (front view)
Note: AIA USB3 Vision™ locking USB connectors supported.
Remove the white sticker from the back of
4
1
the Local Extender (if still affixed). Directly
connect the Local and Remote Extenders
with a Duplex LC crossover multimode
fiber cable (not included).
Link
Local Extender
(rear view)
OM3 Multimode Fiber
Max. distance between Local and Remote Extenders: Up to 50m
with USB 3.0 storage type devices and up to 100m when using
USB 3.0 bulk traffic cameras.
b) For each of the plans listed, click on
Change plan settings.
d) Expand USB settings.
Expand USB selective suspend setting.
Select Disabled for all options listed.
Power the Remote Extender with
3
the included adapter and tighten
the locking ring.
Remote Extender (rear view)
Connect the Local Extender to a
5
computer with the included USB cable.
Computer
Link
Link
Link
