wallas 26CC Operation Manual

OPERATION GUIDE
C O N T R O L P A N E L C o t t a g e A i r H e a t e r s 2 6 C C a n d 4 0 C C
Please Refer to Manual for Full Operation and Maintenance Instructions at wallas.com
IGNITION
Press the Power Button for 3 seconds
until the yellow power light appears. When
you release the button, the yellow heating
light will appear.
Red combustion light will light up when
the burner flame has been ignited and the
combustion has stabilised (approx. in 5
min). Heater will be fully operational
approx. 10 min later.
TEMPERATURE / POWER SETTING
PI Thermo Mode: Set a target temperature (C°/F°)
Manual Mode: Control heating power with knob
Rotate the Temperature/Power Knob to the
desired temperature (refer to temperature
chart on the right) in the PI Thermo Mode or
control heating power with knob in Manual
Mode.
Switch between modes by turning the
Temperature/Power Knob back and forth
to min - max - min quickly.
When the PI Thermo Mode is chosen,
the orange thermostat light is on.
In Manual Mode, the light is off.
All rights reserved. Wallas-Marin reserves the right to change or improve its products and to make changes in the content of this guide
without obligation to notify any person or organization of such changes or improvements. Go to www.wallas.com for current updates
and supplemental information concerning the use of this product.
1 2 3 7
5 6 4

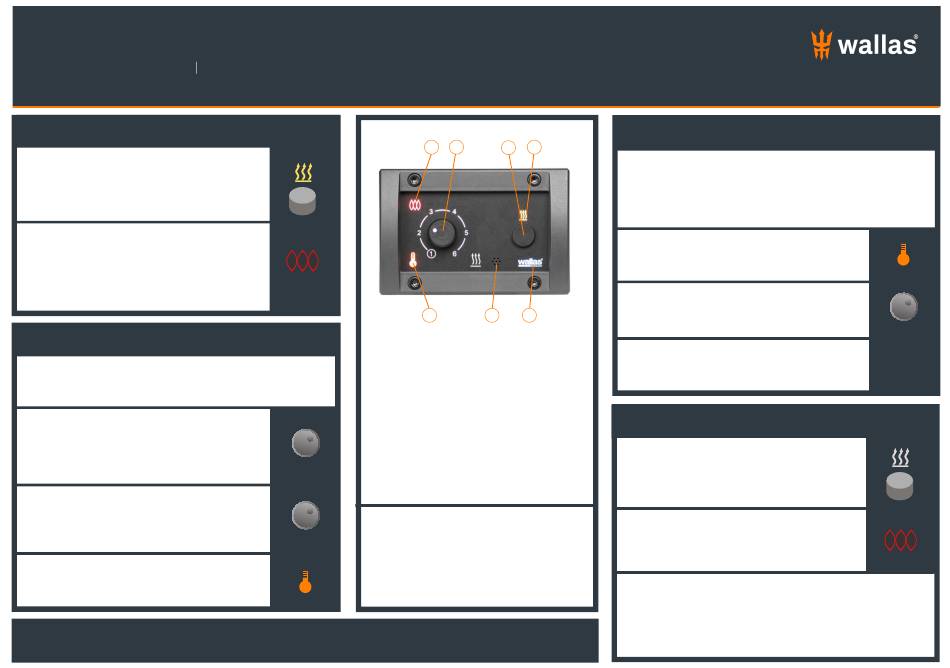

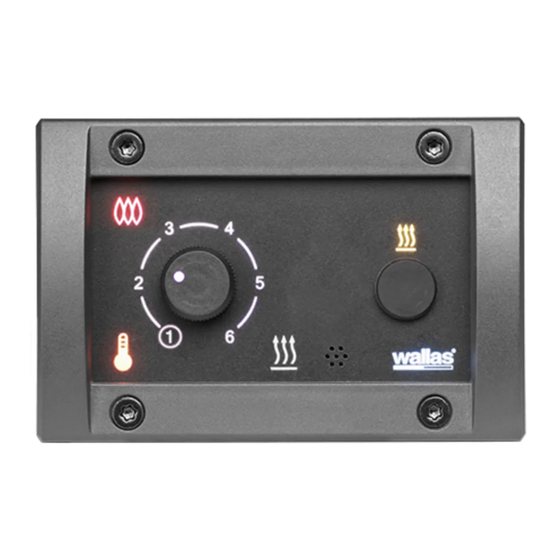

1. Combustion indicator
2. Temperature / Power knob
3. Power button
4. Power indicator
5. Thermostat indicator
6. Thermostat sensor
7. Heating indicator
1: ~ 5 °C (~ 41 °F)
Temperature Chart
2: ~ 11 °C (~ 52 °F)
for the thermostat
3: ~ 17 °C (~ 63 °F)
in PI Thermo
4: ~ 23 °C (~ 73 °F)
Mode:
5: ~ 29 °C (~ 84 °F)
6: ~ 35 °C (~ 95 °F)
SUN SWITCH
Sun Switch automatically turns the heater off if the
temperature remains +3 C (37 F) above the set level for
1/2 hour due to temperuature increase in local ambient
conditions.
Orange thermostat light will begin to
flash every 30 seconds.
Rotate the Temperature/Power Knob
slightly to turn the Sun Switch off
temporarily.
If heating is still needed, turn the device
back on manually.
SHUT DOWN
Press the Power Button down for 2
seconds. Yellow heating light will shut off
immediately.
Red combustion light will begin to flash for
about 5 minutes, while the heater is
cooling down.
Heater cannot be restarted until the cool down has
completed. The heating mode that was used last upon
shutdown will be the same mode when the heater is
turned on again.
(IN PI THERMO MODE)
See
ignition
