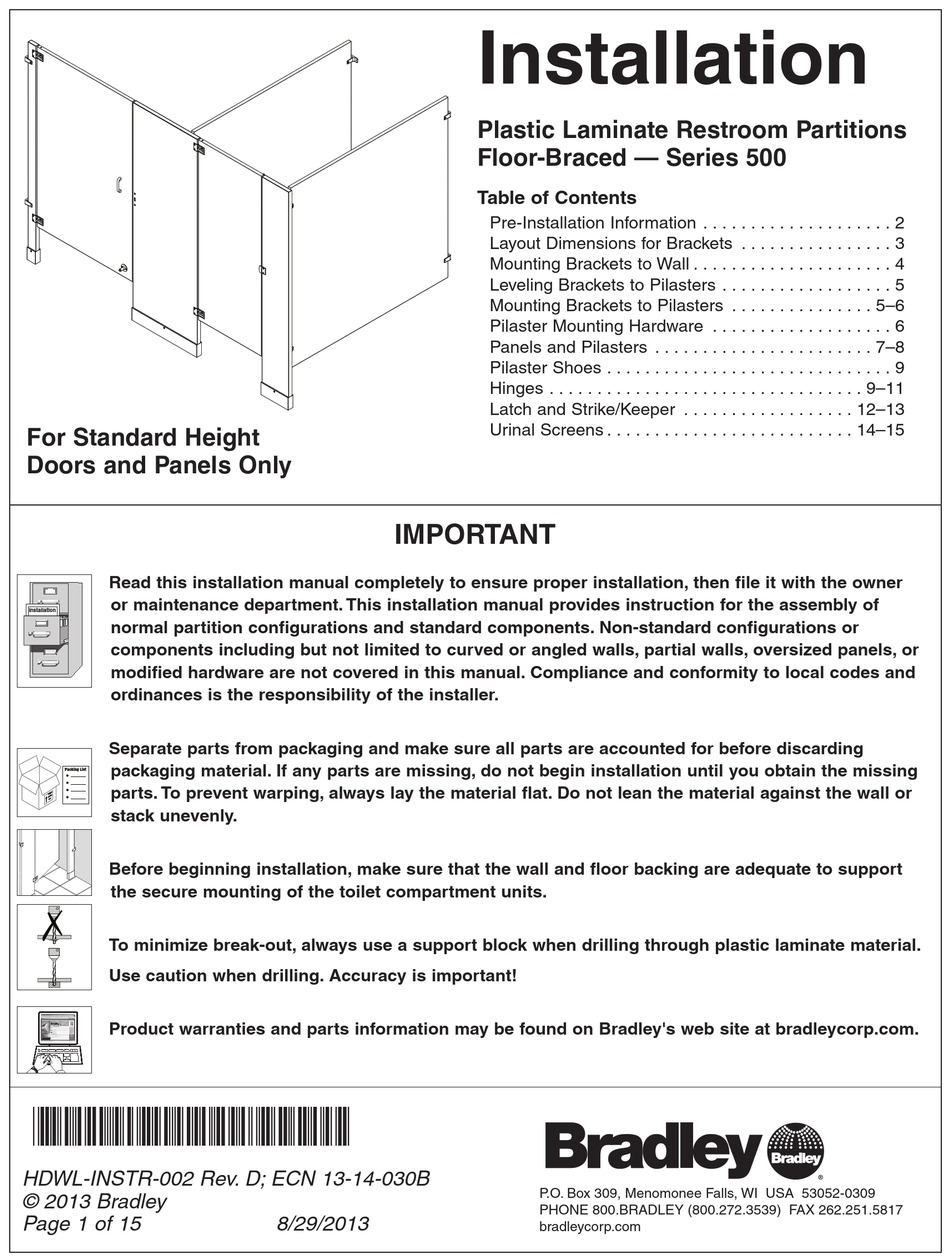

Bradley 500 Series Installation Manual

For Standard Height
Doors and Panels Only
Read this installation manual completely to ensure proper installation, then file it with the owner
or maintenance department. This installation manual provides instruction for the assembly of
Installation
normal partition configurations and standard components. Non-standard configurations or
components including but not limited to curved or angled walls, partial walls, oversized panels, or
modified hardware are not covered in this manual. Compliance and conformity to local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding
packaging material. If any parts are missing, do not begin installation until you obtain the missing
Packing List
•
•
parts. To prevent warping, always lay the material flat. Do not lean the material against the wall or
•
IS
T H
•
E
S ID
U P
stack unevenly.
Before beginning installation, make sure that the wall and floor backing are adequate to support
the secure mounting of the toilet compartment units.
To minimize break-out, always use a support block when drilling through plastic laminate material.
Use caution when drilling. Accuracy is important!
Product warranties and parts information may be found on Bradley's web site at bradleycorp.com.
*HDWL-INSTR-002*
HDWL-INSTR-002 Rev. D; ECN 13-14-030B
© 2013 Bradley
Page 1 of 15
IMPORTANT
8/29/2013
Installation

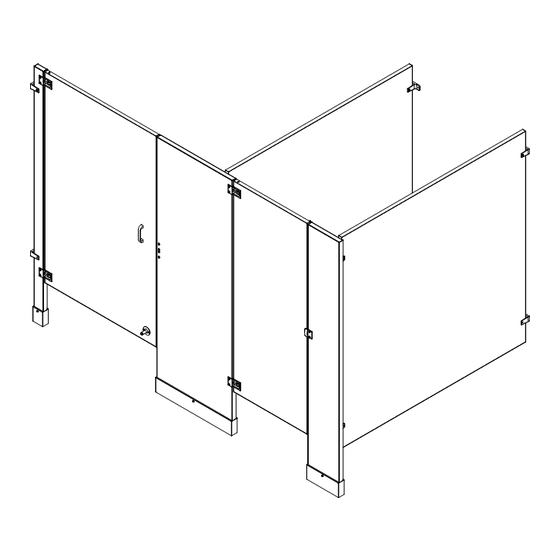

Plastic Laminate Restroom Partitions
Floor-Braced — Series 500
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . 2
Layout Dimensions for Brackets . . . . . . . . . . . . . . . . 3
Mounting Brackets to Wall . . . . . . . . . . . . . . . . . . . . . 4
Leveling Brackets to Pilasters . . . . . . . . . . . . . . . . . . 5
Mounting Brackets to Pilasters . . . . . . . . . . . . . . . 5–6
Pilaster Mounting Hardware . . . . . . . . . . . . . . . . . . . 6
Panels and Pilasters . . . . . . . . . . . . . . . . . . . . . . . 7–8
Pilaster Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–11
Latch and Strike/Keeper . . . . . . . . . . . . . . . . . . 12–13
Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . 14–15
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
