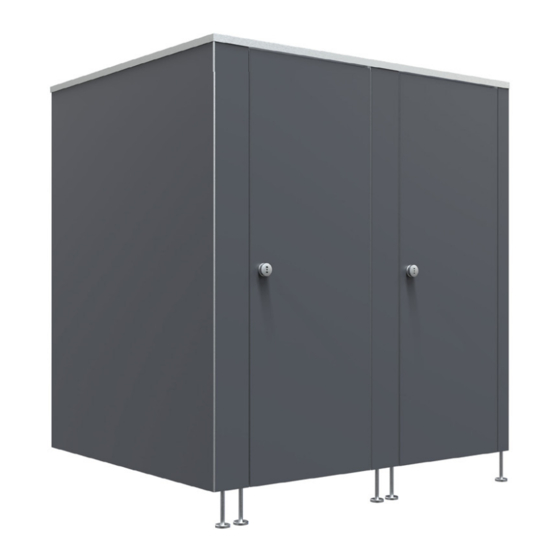

    Installation Euro Style Restroom Partitions Phenolic LT – LOFT Series Table of Contents Safety Information ......2 Supplies Required .

  • Page 2: Safety Information

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Safety Information Warning Before beginning installation, make sure that the wall and floor backing are adequate to support the secure mounting of the toilet compartment units. Partitions are extremely heavy and may require more than one person to position and install.

  • Page 3: Marking & Installing U-Brackets

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Marking & Installing U-Brackets When installing the partition components, consult the applicable Bradley Partition submittal drawing specific to this job for compartment layout dimensions. From the accompanying production drawing you can see the centerline plus overall dimensions and the dimensions of the front wall.

  • Page 4: Making Back Wall Notches (If Necessary)

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Making Back Wall Notches (if necessary) This step may not be necessary, depending on the layout. Measure the height of the shelf on the back wall and subtract the specified ground clearance at that location from this dimension.
  • Page 5 Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Place the partition panel into the notched brackets. Level and use jacks to support the panel and to hold the panel in place. Bradley • AD3-LOFT_Install Rev. B 12/10/2021...

  • Page 6: Installing Middle And End Panels

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Installing Middle and End Panels Place a small bead of silicone on both sides of the U-bracket side walls towards the front of the bracket. This will help reduce noise when complete.

  • Page 7: Mounting U-Bracket On Pilaster

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting U-Bracket on Pilaster Determine the centerline of the pilaster and then draw a full-length line along the pilaster. There may be a custom dimension indicated on the sumittal drawing.

  • Page 8: Mounting Pilaster To Partition Panel

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting Pilaster to Partition Panel Place a small bead of silicone on the inside walls of the U-bracket. Place the interior pilaster onto the partition panel and use a jack to line up the bottom edges.

  • Page 9: Inserting Interior Pilaster

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Inserting Interior Pilaster Place a small bead of silicone on the inside walls of the U-bracket, and then set the end pilaster into the bracket. Use a jack to support the end pilaster. Verify the lower edge of the end pilaster is flush with the U-bracket.

  • Page 10: Attaching Doors

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Attaching Doors Doors are available with two types of hinges: 180° barrel hinge or 110° integral hinge. Follow the instructions for the type of hinge installed on your doors. 180° Barrel Hinge Type...

  • Page 11: Mounting Headrail

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting Headrail Verify that the pilasters against the wall are level. Measure the length of the headrail needed. Use a circular saw or jigsaw to cut the headrail to the measured length.

  • Page 12: Aligning The System & Securing The Feet

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Aligning the System & Securing the Feet Verify the vertical gaps between the door and pilasters are adjusted to 4 mm. Adjust the gap at the top of the door to 4 mm. Spacers are recommended.

  • Page 13: Securing The Feet

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Securing the Feet For the 110° integral hinge side of the pilaster, use a 5 mm drill bit to drill a hole from inside of the stall just above the base of the pilaster (approximately the...

  • Page 14: Mounting Headrail On End Panel

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting Headrail on End Panel Set the approximate headrail (with the pre-cut 90° miter against the back wall) on top of the outer panel. Mark the headrail to the length needed. Use a circular saw or jigsaw to cut the headrail to the measured length.

  • Page 15: Mounting The Door Latch

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting the Door Latch Insert the set screw until it is flush with the surface of the square hole. Place the outside frame of the interior portion of the latch onto the surface of the door.

  • Page 16: Mounting Hooks & Bumpers

    Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Mounting Hooks & Bumpers Mark the location for the hook on the inside of the door (300 mm from the top edge and center of the door). Pre-drill the hook mounting holes using a 4 mm drill bit.
  • Page 17 Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation Attach the door bumper to the inside pilaster using HB45 construction adhesive. Use tape to hold the door bumper in place until the adhesive dries. Bradley • AD3-LOFT_Install Rev. B...
